KEY FEATURES

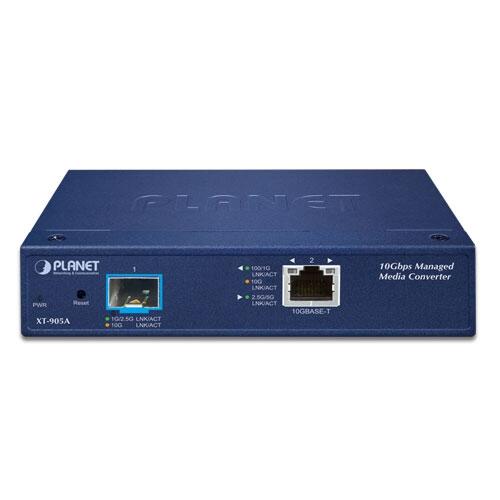

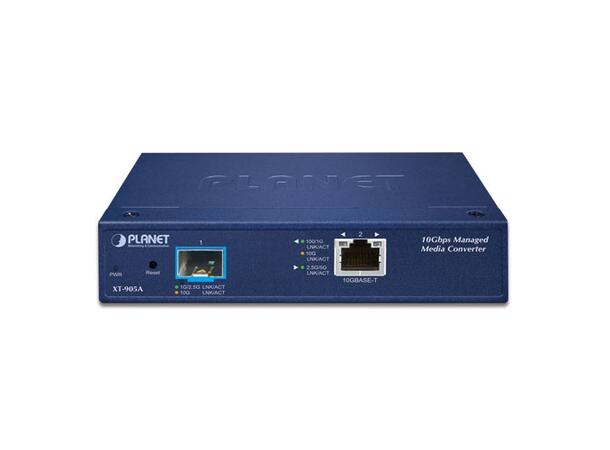

 Physical Port

• One 10G/2.5G/1G/100BASE-X SFP+ interface
• One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function

Layer 2 Features

• Storm Control support
  • Broadcast / Multicast / Unknown Unicast
• Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
  • Up to 256 VLAN groups, out of 4096 VLAN IDs
• Supports ITU-T G.8032 ERPS ring with recovery time less than 500ms (software-based)
• Link Layer Discovery Protocol (LLDP)
• 16K MAC address table with auto-aging
• Jumbo Frame support up to 12K in size

Quality of Service

• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all converter ports
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Traffic classification
  • IEEE 802.1p CoS
  • IP TOS / DSCP / IP Precedence
  • IP TCP/UDP port number
  • Typical network application

Management

• IPv4 and IPv6 dual stack management
• Support Link Fault Pass-through
• Management Interfaces
  • Web HTTP/HTTPS management
  • Telnet Command Line Interface
  • SNMPv1, v2c, v3 monitoring
  • SSHv2, TLSv1.2
• System Maintenance
  • Firmware upload/download via HTTP
  • Reset button for system reboot or reset to factory default
  • Dual images
• Simple Network Time Protocol (SNTP)
• User privilege levels control
• SNMP Management
  • SNMP trap for interface link up and link down notification
  • Four RMON groups (history, statistics, alarms and events)
• Network Diagnostic
  • SFP-DDM (Digital Diagnostic Monitor)
• Syslog remote alarm
• Local system Log
• ICMPv6 / ICMPv4 remote ping
• PLANET Smart Discovery Utility for convenient deployment
• PLANET Remote Management
  • PLANET NMS Controller and CloudViewer app for central management

Security

• IP address access management to prevent unauthorized intruder
• Static MAC setting and MAC Filtering
• Protected ports

Case and Installation

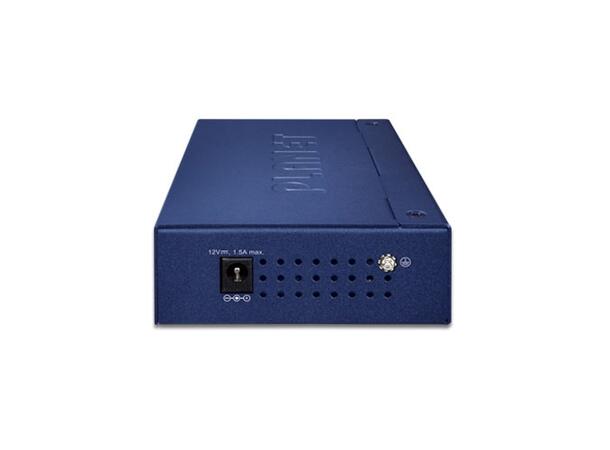

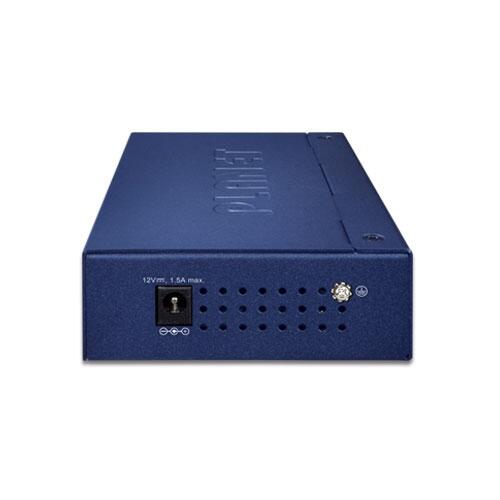

• External 12VDC, 1.5A power adapter
• 0 to 50 degrees C operating temperature
• Supports 4KVDC Contact/8KVDC Air Ethernet ESD protection
• Wall-mount and DIN-rail installation (optional)
