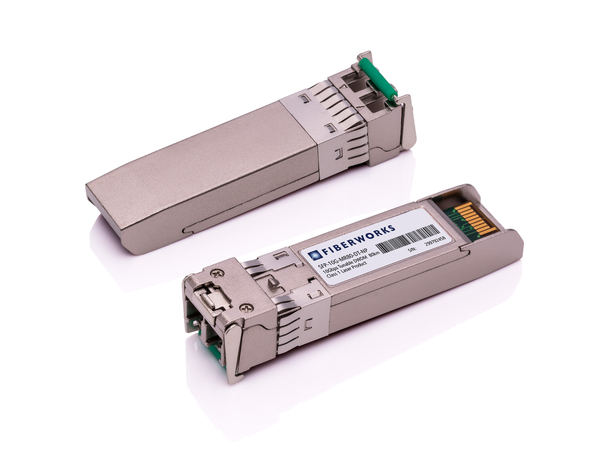

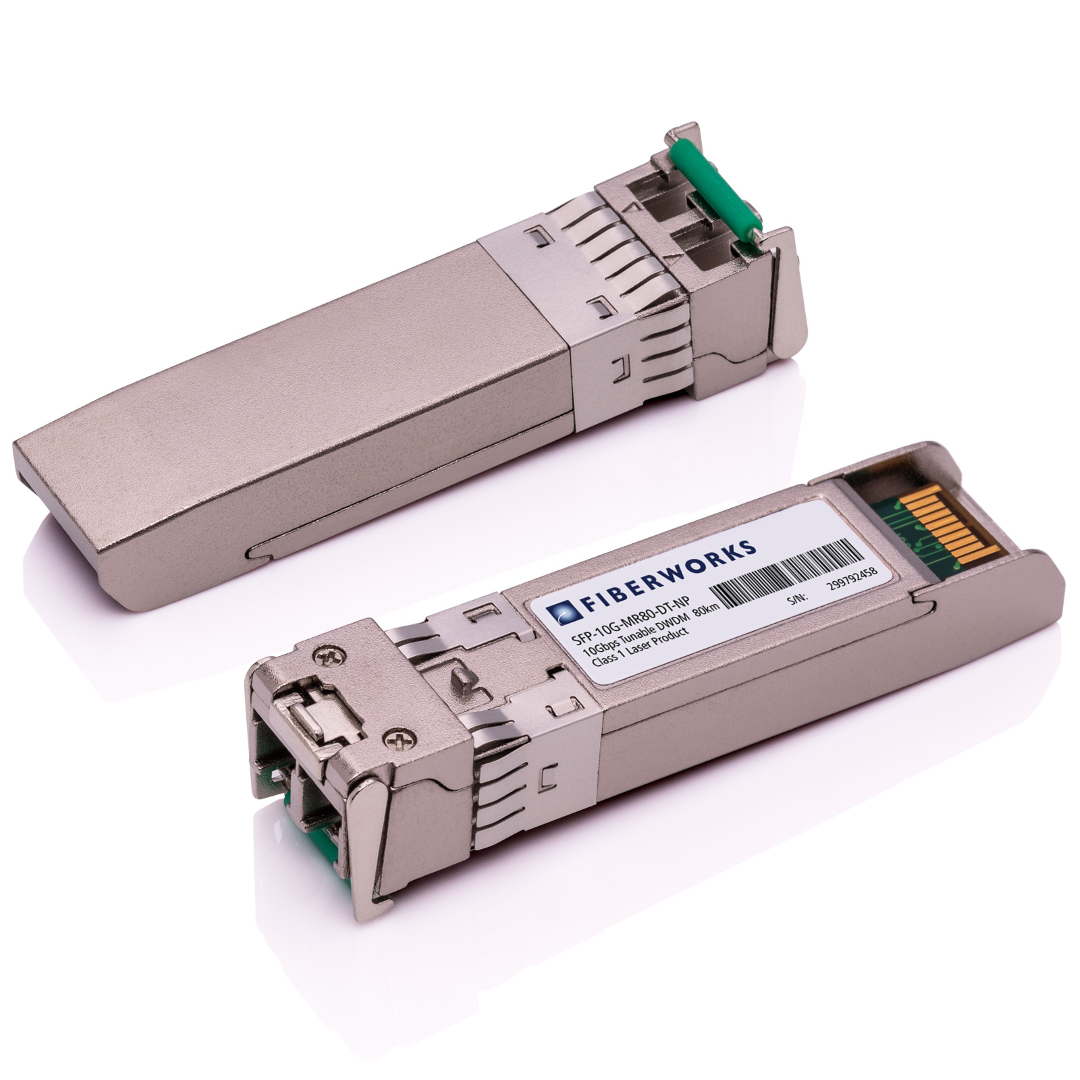

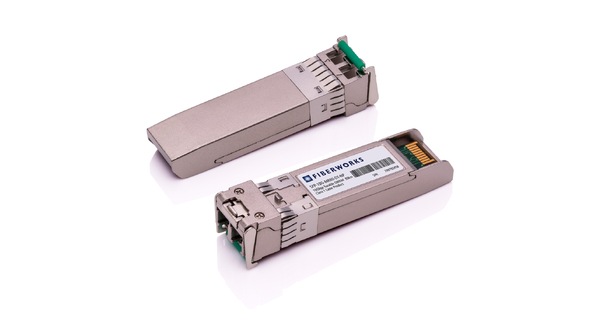

SFP+, 1.2-11.3G, 80km, Auto-Tunable DWDM 50GHz ITU, 23dB, SM, I-temp

SFP+, 1.2-11.3G, 80km, Auto-Tunable

DWDM 50GHz ITU, 23dB, SM, I-temp

BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse
APPLICATIONS
• Supports 80km link distances
• 1Gb/s or 10Gb/s Gigabit Ethernet
• 10G Fibre Channel
• OTU1/OTU2 with FEC
• Dispersion limited or noise limited
• High/low OSNR Metro
• Link with or without amplification

FEATURES
• ITU-T C-band 50 GHz spacing Tunable DWDM SFP+ Transceiver
• Auto-tuning within 191.35 - 196.1 THz
• Data rate 1.2 - 11.3 Gbit/s
• Support 80 km link distances
• Negative chirp transmitter with ILMZ (Integrated Laser Mach Zehnder) TOSA
• Tx dither for use in high-power links
• APD receiver with limiting amplifier
• Adjustable Rx determination threshold value
• Low power consumption: < 1.5 W
• Positive power supply lines: 3.3 V
• Operating case temperature range: -40 to +85 °C
• RoHS 6 compliant
Teknisk info

Produktinformasjon

Formfaktor SFP+
Protokoll / bitrate
  • 10 Gigabit Ethernet
  • SDH STM-64
  • OTN/G.709/G.sup43 OTU2(e)
Mediatype Singelmodus
Rekkevidde (dB) 23
Rekkevidde (km) 80
Bølgelengde (nm) DWDM
Mottakertype APD
DDM Ja
Konnektor LC Duplex
