XST-705A 10G Smart Media Converter

SFP+ Port, 10G/5G/2.5G/1G/100M RJ45

Varenr: MC-PLANET-XST-705A
Alt. varenr: XST-705A
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehør
Beskrivelse
Denne konverteren kan overvåkes/styres via chassis MC-PLANET-MC-1610MR.

Physical Port
  • One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
  • One 10GBASE-X SFP+ slot

Layer 2 Features
  • IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
  • Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • 16K jumbo frame size support
  • Automatic address learning and address aging

Case and Installation

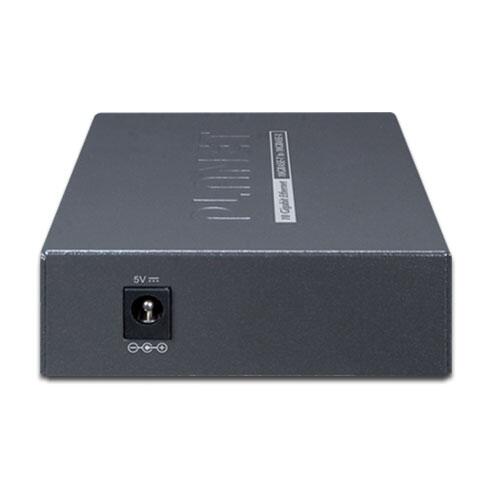

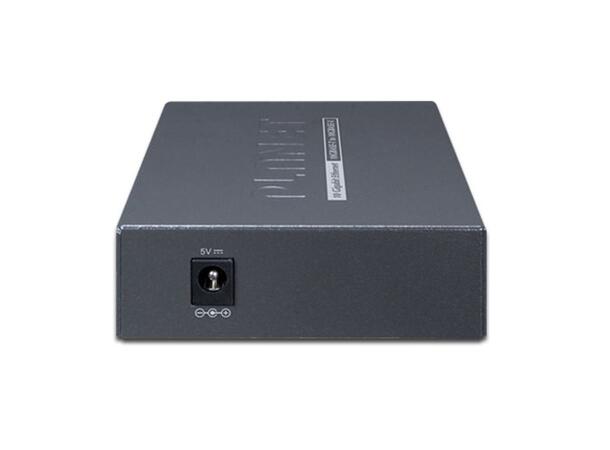

  • External 5V DC, 2A power supply
  • Wall-mount design
  • Supports 6000 VDC Ethernet ESD protection
  • 100 meters over Cat. 6A / Cat. 7 at 10Gbps
  • 0 to 50 degrees C operating temperature
  • Co-works with PLANET’s 19” Managed Media Converter Chassis series (MC-1610MR / MC-1610MR48)
  • Plug and Play installation
Teknisk info

Produktinformasjon

Bruksområde Konvertering av bitrate
Protokoll / bitrate 10 Gigabit Ethernet
Fiberport SFP/SFP+
Kobberport Ja, RJ45
Power over Ethernet (PoE) Nei
Management Ja, i chassis
Kan plasseres i chassis Ja
For DIN-skinne Nei
