FEATURES
- Dense WDM in compliance with ITU-T G.694.1

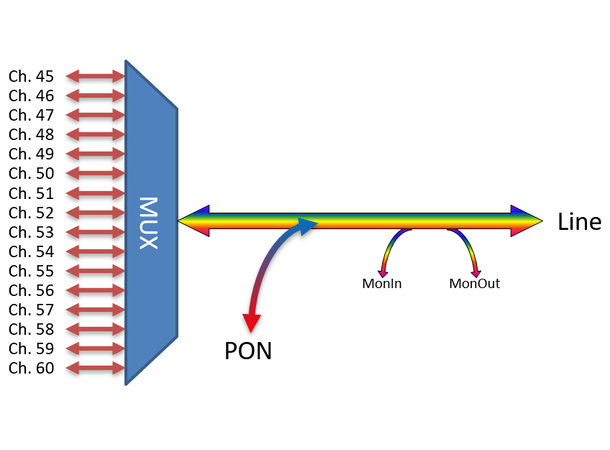

- 16 DWDM channels 45-60 with 100 GHz spacing
- For bidi operation on single fiber together with GPON/XGS-PON
- Insertion loss (max/typical): < 3.6 / 3.4 dB
- Insertion loss PON port: < 1.0 dB
- Two 2% monitor ports for easy troubleshooting
- Protocol transparent (support 1G, 10G etc.)

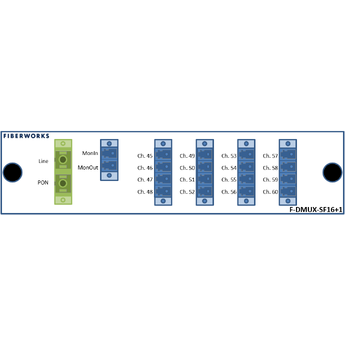

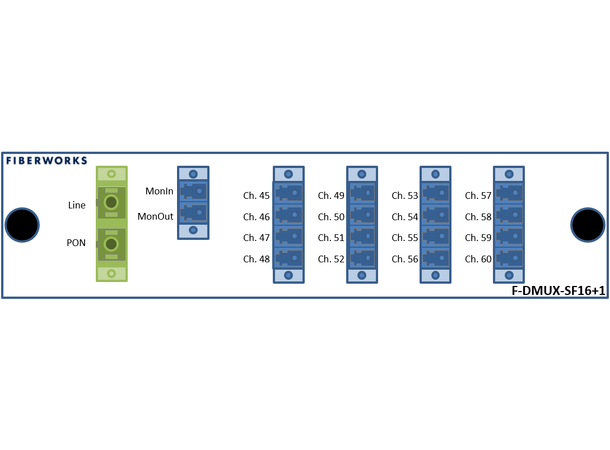

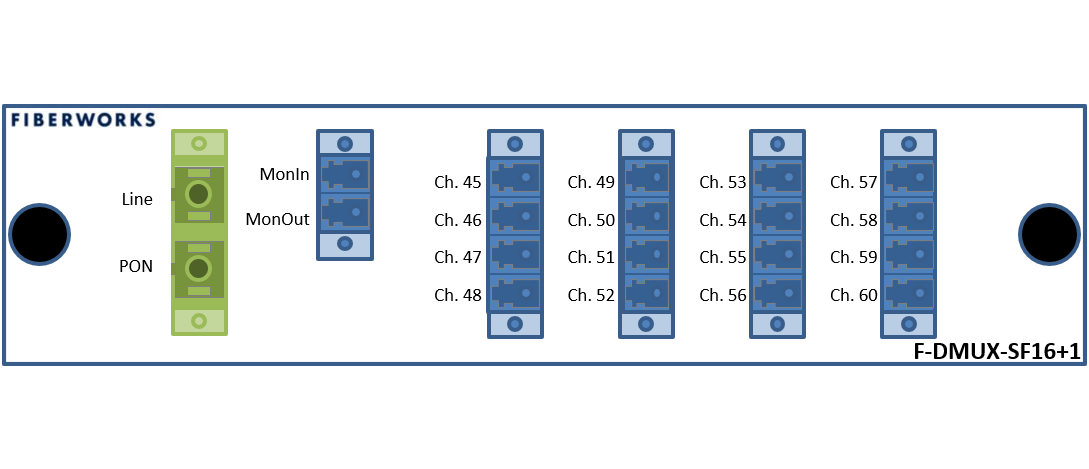

- Two modules fit in 1U in 19" rack
- LC/UPC connectors on client ports
- SC/APC connectors on Line and PON ports
