F-WMUX-15WB-PON-O9 Fiberworks AS Fiberworks PON / C-band mux/demux 3-port filter for splicing, 900 µm
F-WMUX-15WB-PON-O9 Fiberworks AS Fiberworks PON / C-band mux/demux 3-port filter for splicing, 900 µm F-WMUX-15WB-PON-O9 Fiberworks AS Fiberworks PON / C-band mux/demux 3-port filter for splicing, 900 µm
Fiberworks PON / C-band mux/demux 3-port filter for splicing, 900 µm Fiberworks PON / C-band mux/demux 3-port filter for splicing, 900 µm

Fiberworks PON / C-band mux/demux

3-port filter for splicing, 900 µm

Varenr: F-WMUX-15WB-PON-O9
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse
FEATURES

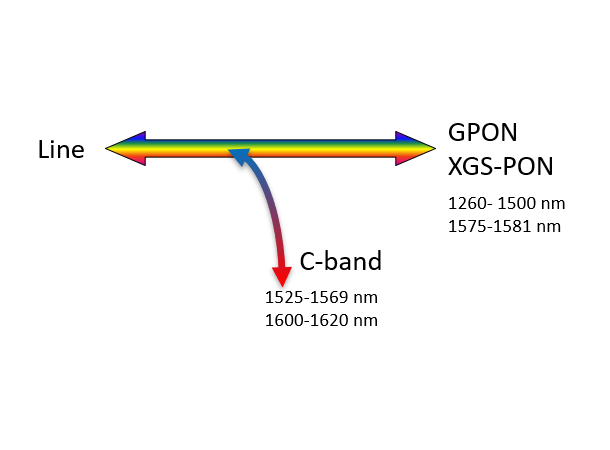

  • Enables use of DWDM on a PON link
  • Add/drop of C-band (1525 - 1569 nm)
  • Passthrough of GPON and XGS-PON (1260-1500/1575-1581 nm)
  • Low insertion loss (< 1.0 dB)

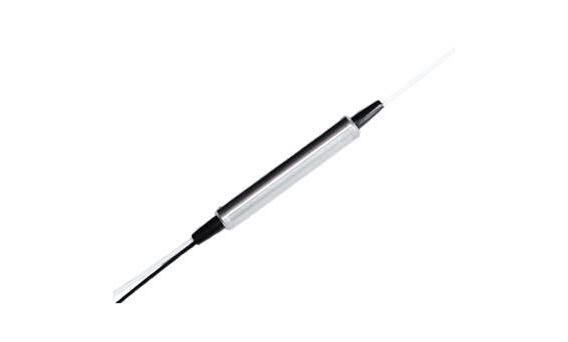

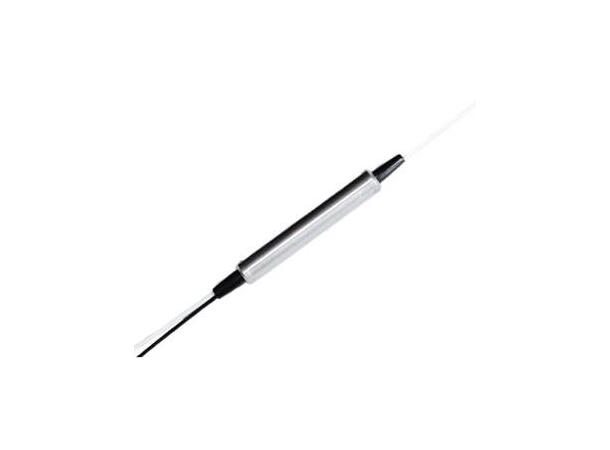

  • Metal cylinder for FOSC mounting  (38 x 5.5 mm)
  • 900 µm pigtails for splicing
  • Based on thin film optics with epoxy free optical path
  • Protocol transparent (support 1G, 10G etc.)

Teknisk info

Produktinformasjon

Formfaktor Stålsylinder
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090
