1-Port RJ-45 interface (Data + Power output)

1-Port Fiber Optic SFP Port

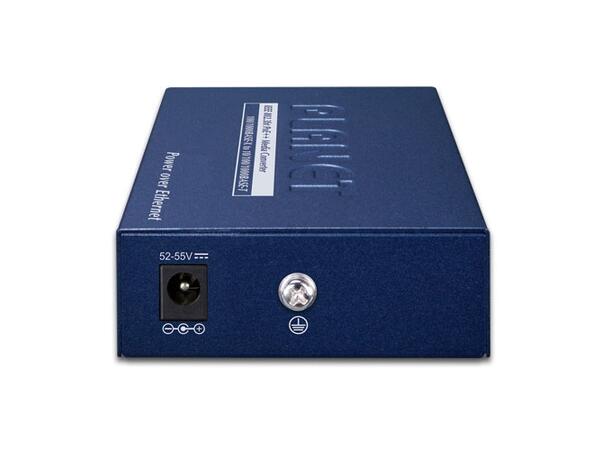

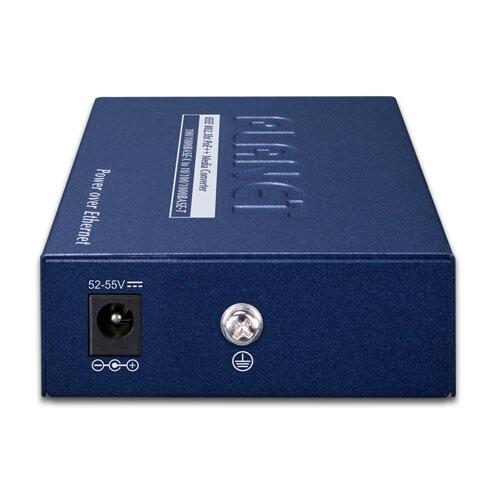

DC 52-55V power input socket

Power supply included

Compatible with IEEE 802.3bt Power over Ethernet plus plus end-span + mid-span PSE

Backward Compatible with IEEE 802.3at Power over Ethernet plus end-span/mid-span PSE

Provides DC 52V~55V power over RJ45 Ethernet cable to devices with Ethernet port

RJ45 PoE++ port with built-in 802.3bt type-4 PoE 60W injector function

Auto detects powered device (PD)

Circuit protection prevents power interference between ports

Remote power feeding up to 100m

IEEE 802.3bt/IEEE 802.3at splitter devices compatibility

Metal Case

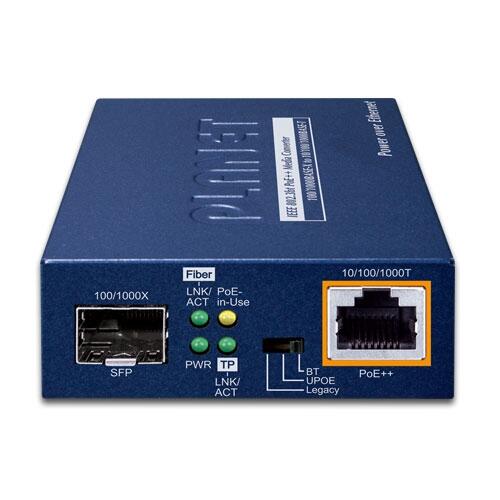

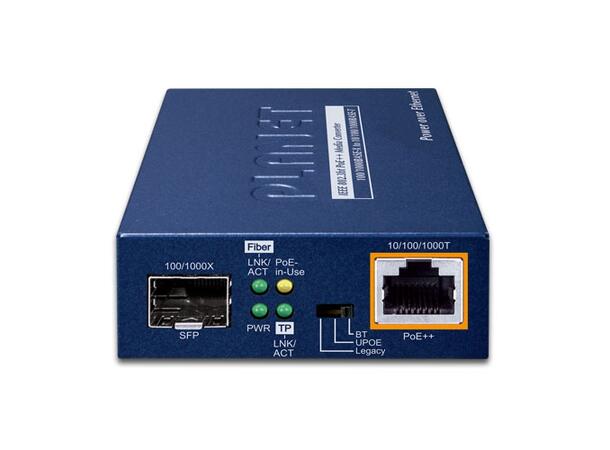

LED indicators:
- Power LED
- PoE In-use
- Fiber LNK / ACT
- TP LNK / ACT

DIP-switch: LFP (Link Fault Pass-through) Mode selection

Standard Compliance:
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-X
• IEEE 802.3af Power over Ethernet Standard
• IEEE 802.3at Power over Ethernet enhancements Standard
• IEEE 802.3 bt Power over Ethernet over 4 pairs
• FCC Part 15 Class A, CE
