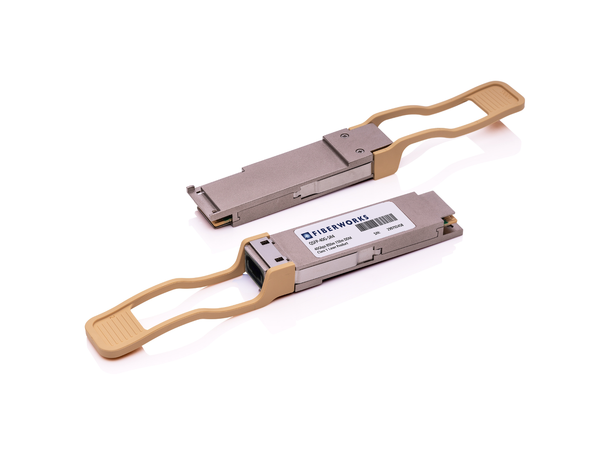

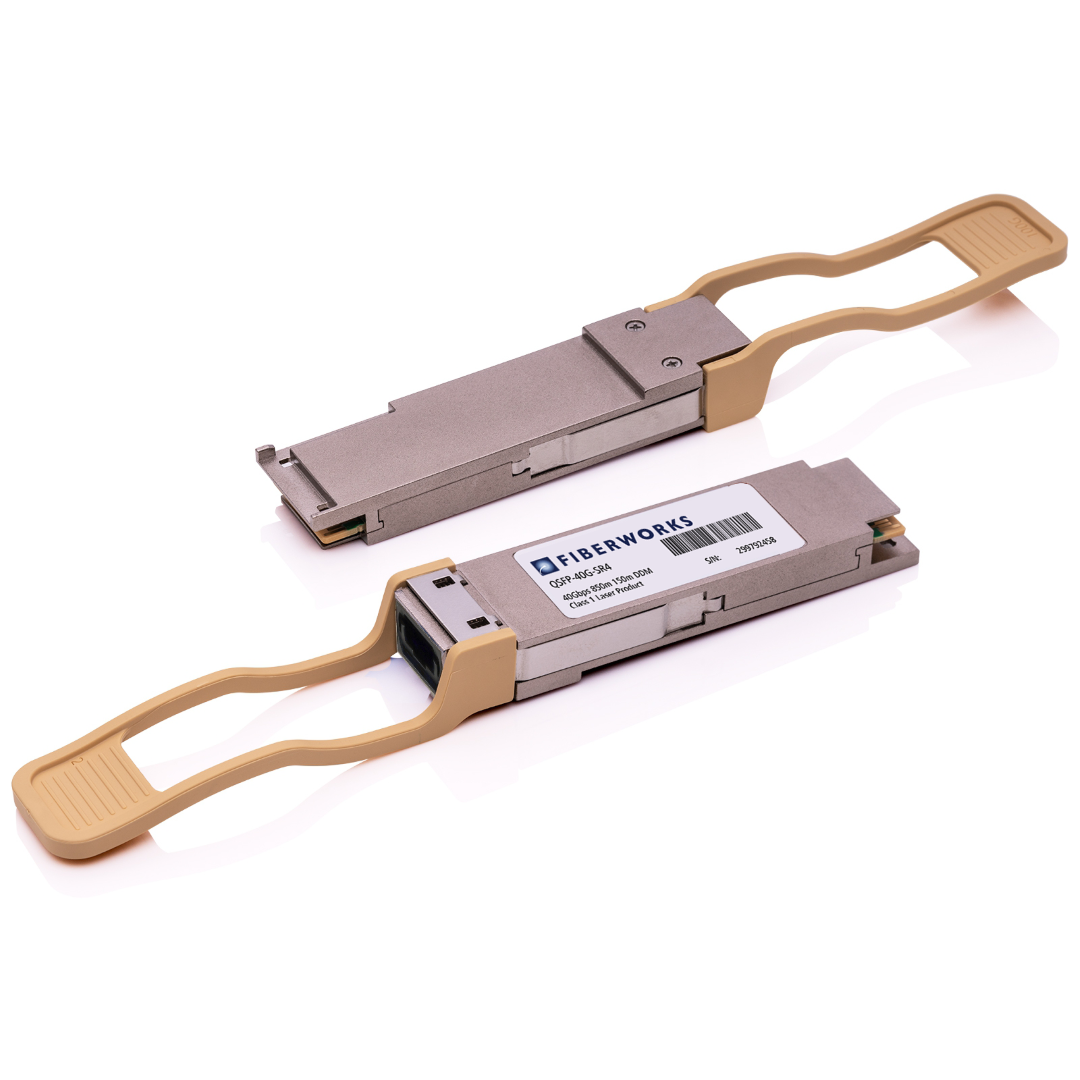

QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8 connector

QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m

850nm, 2dB, MM, MPO8 connector

Varenr: QSFP-40G-SR4
Vis varianter som liste
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehør
Beskrivelse
APPLICATIONS
• 40G Ethernet
• Infiniband QDR
• Fiber channel

FEATURES
• High Channel Capacity: 40 Gbps per module
• Up to 11.1Gbps Data rate per channel
• Maximum link length of 100m links on OM3 multimode fiber or 150m on OM4 multimode fiber
• High Reliability 850nm VCSEL technology
• Electrically hot-pluggable
• Compliant with QSFP+ MSA
• Case operating temperature range:0°C to 70°C
• Power dissipation < 1.5 W

Teknisk info

Produktinformasjon

Formfaktor QSFP+
Protokoll / bitrate
  • 10 Gigabit Ethernet
  • 40 Gigabit Ethernet
Mediatype Multimodus
Rekkevidde (dB) 2
Rekkevidde (km) 0,150
Bølgelengde (nm) 850
DDM Ja
Konnektor MPO


Tilbehør
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Alcatel
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, AlcatelVarenrQSFP-40G-SR4-A
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Arista
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, AristaVarenrQSFP-40G-SR4-AR
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Cisco
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, CiscoVarenrQSFP-40G-SR4-C
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Citrix Netscaler
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, Citrix NetscalerVarenrQSFP-40G-SR4-CN
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Dell
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, DellVarenrQSFP-40G-SR4-D
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Extreme
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, ExtremeVarenrQSFP-40G-SR4-E
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, F5 Networks
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, F5 NetworksVarenrQSFP-40G-SR4-F5
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Fiberworks
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, FiberworksVarenrQSFP-40G-SR4-U
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Fortinet
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, FortinetVarenrQSFP-40G-SR4-FN
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, H3C
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, H3CVarenrQSFP-40G-SR4-H3
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, HP Virtual Connect
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, HP Virtual ConnectVarenrQSFP-40G-SR4-HV
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Huawei
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, HuaweiVarenrQSFP-40G-SR4-W
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, IBM
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, IBMVarenrQSFP-40G-SR4-I
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Intel
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, IntelVarenrQSFP-40G-SR4-IN
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Juniper
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, JuniperVarenrQSFP-40G-SR4-J
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO8, Mellanox
QSFP+, 40GBASE-SR4, 4 x 10.3 Gbps, 150m850nm, 2dB, MM, MPO8, MellanoxVarenrQSFP-40G-SR4-ME
