P-A1-M9Y-4M8MbM8M-xx Fiberworks AS Trunk SM 4xMPO/APC8 Han-Han Pol B, xx m 9/OS2 G.657.A1, 4x ø3 mm Gul, Elite
Trunk SM 4xMPO/APC8 Han-Han Pol B, xx m 9/OS2 G.657.A1, 4x ø3 mm Gul, Elite

Trunk SM 4xMPO/APC8 Han-Han Pol B, xx m

9/OS2 G.657.A1, 4x ø3 mm Gul, Elite

Varenr: P-A1-M9Y-4M8MbM8M-xx
Vis varianter som liste
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehør
Beskrivelse

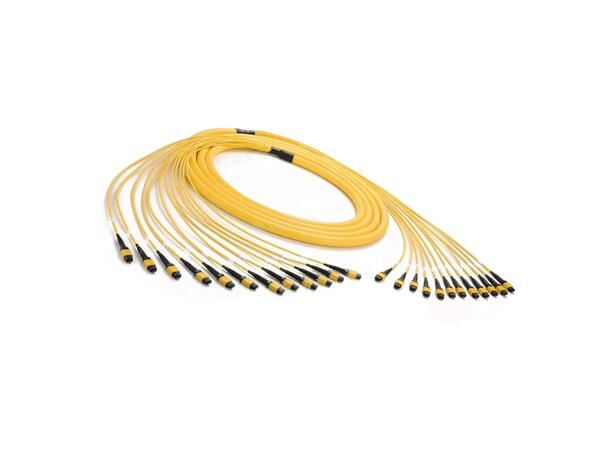

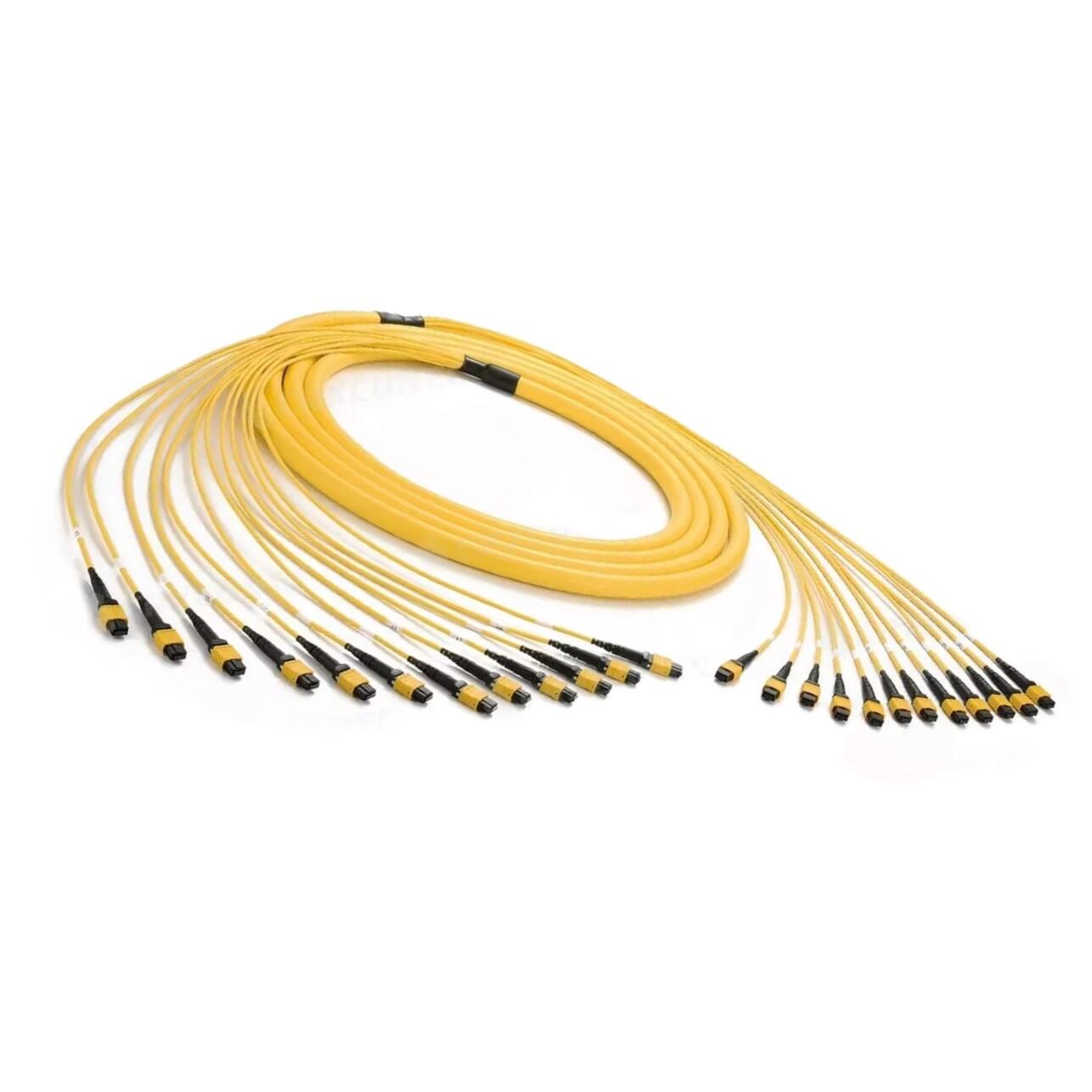

Trunk SM OS2 48F, 4x MPO/APC8 Hann - 4x MPO/APC8 Hann, (4 x Base-8), Elite Low Loss. Polaritet B

MPO Elite Low Loss trunk kabel sørger for effektiv og enkel installasjon av backbone-kabling i datasentre og andre høyfibermiljøer.
MPO trunk kabler reduserer nettverksinstallasjon- og/eller rekonfigureringstid og kostnader. MPO trunkkabel benyttes til å koble sammen patchkassetter, patchpaneler, switcher, MDA-, HDA- og EDA-soner.

MPO Base-8 benytter MPO-12F konnektor hvor de 4 midterste posisjonene er uterminert

KARAKTERISTIKA:

  • Møter IEC, EIA/TIA og EN50173 standarder
  • Elite Low Loss-kvalitet
  • Konnektor møter IEC standarder
    • MPO: IEC 61754-7
  • Polaritet: B
  • Konnektorens endeflate geometri møter eller overgår IEC og Telcordia standarder
  • Konnektor ende A: MPO/APC8 Hann
  • Konnektor ende B: MPO/APC8 Hann
  • Fibertype: 9/125 OS2, ITU-T G.657.A1 (Bøybestandig fiber)
  • Ytre kabeldiameter:  ø9mm
  • Kabeldiameter 8F: ø3mm
  • Lavt innstikktap (IL) og returtap (RL)
    • IL, typ/maks: <0,20dB/<0,35dB
    • RL, typ/min: -63dB/-60dB
  • 100% interferometer, IL, RL og visuell test
  • Test rapport medgølger hver kabel­

Teknisk info

Produktinformasjon

Fibertype Singelmodus G.657.A1
Polaritet B
Kjønn Hann - hann
Konnektortype MPO Base-8 (MPO8)
