FEATURES
- Dense WDM in compliance with ITU-T G.694.1

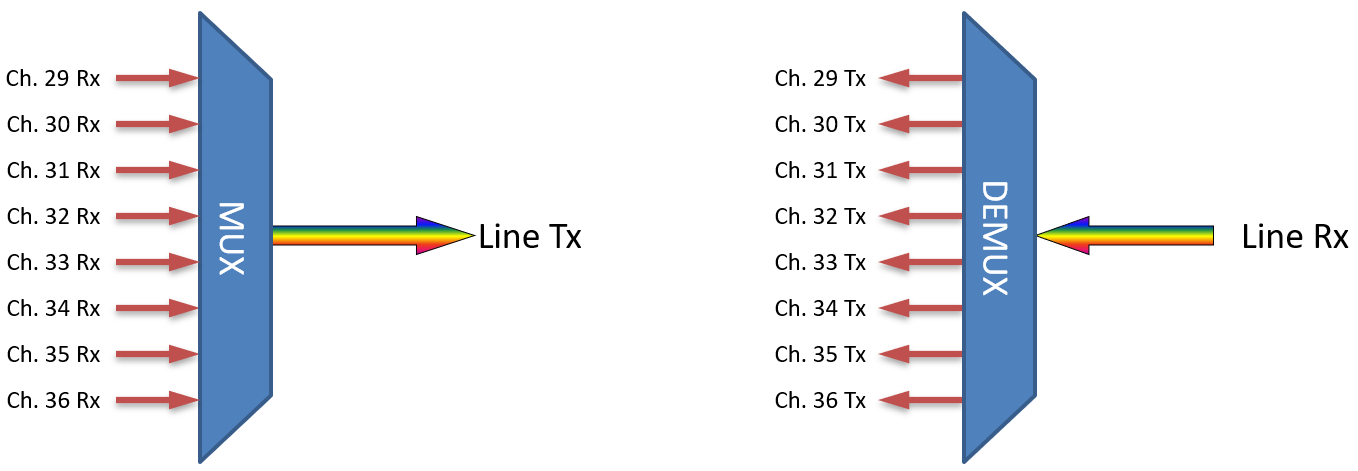

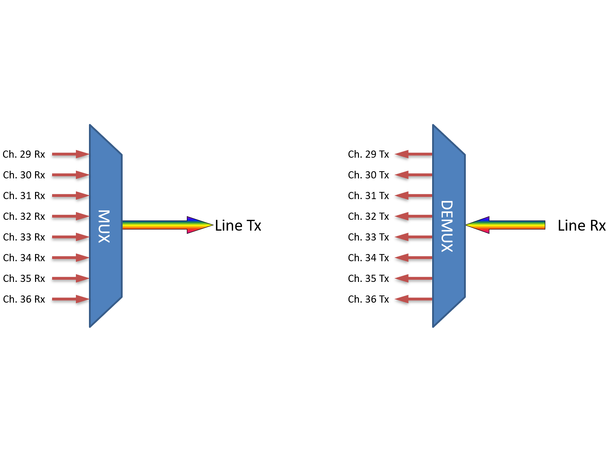

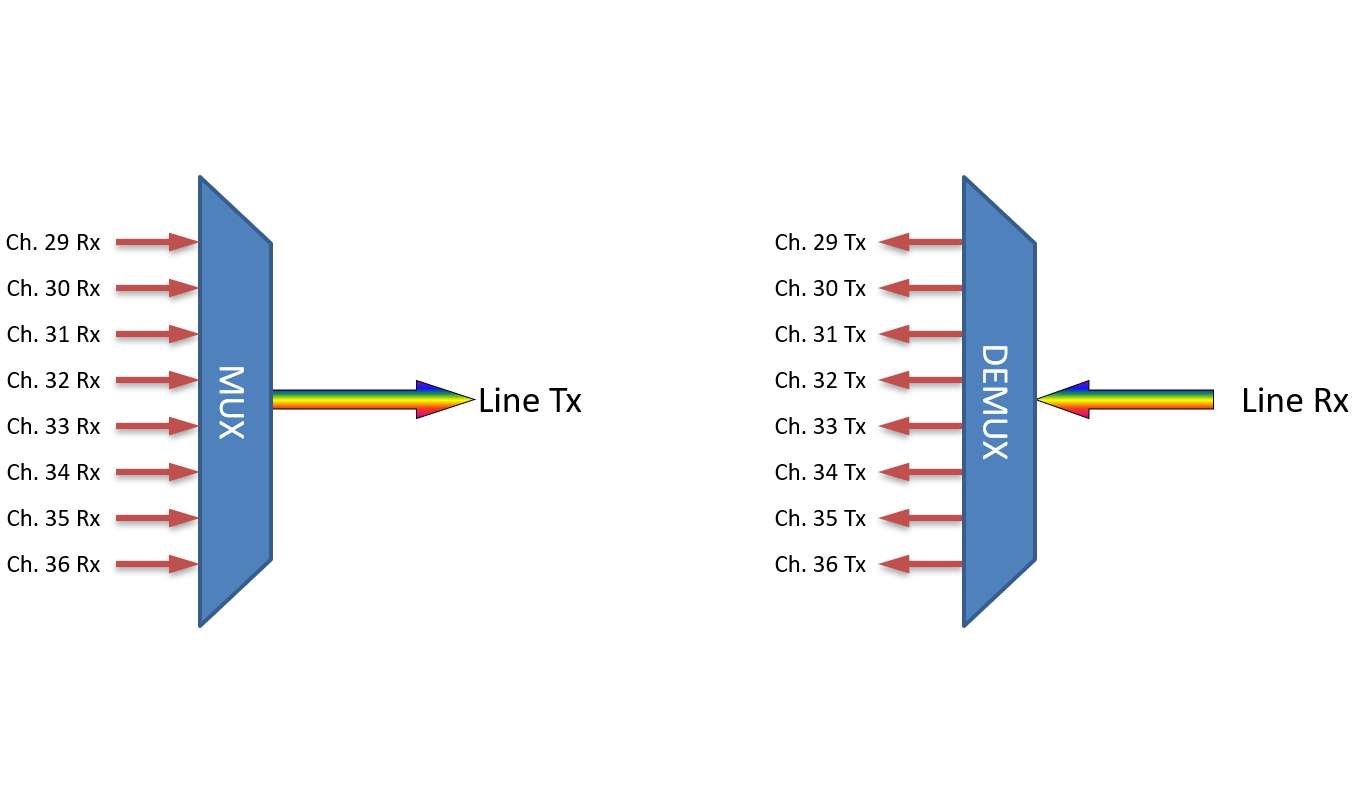

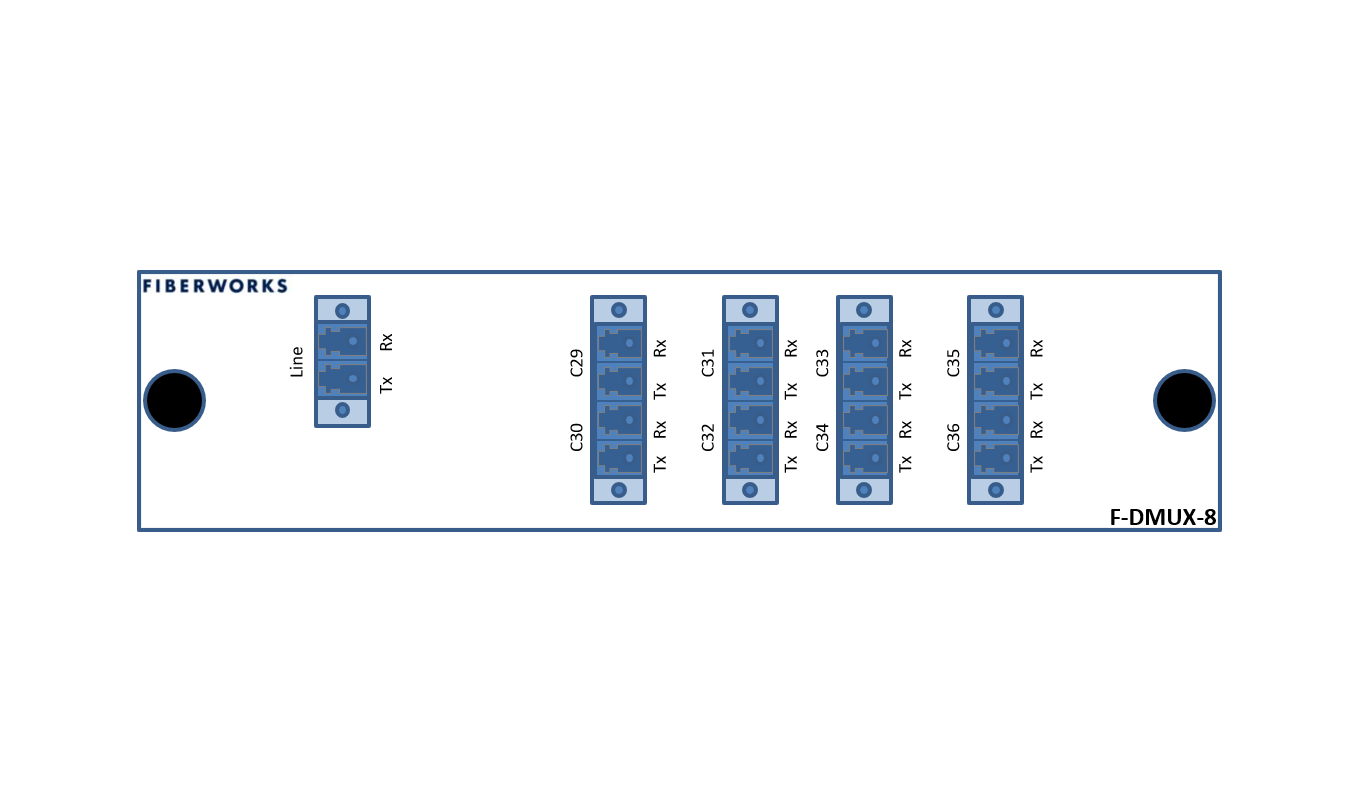

- 8 DWDM channels 29-36 with 100 GHz spacing
- All channels fit within any standard 1551nm CWDM channel
- Maximum Insertion Loss: < 2.2 dB (module), < 2.8 dB (link, mux+demux)
- Typical Insertion Loss: < 2.0 dB (module), < 2.6 dB (link, mux+demux)
- Protocol transparent (support 1G, 10G etc.)

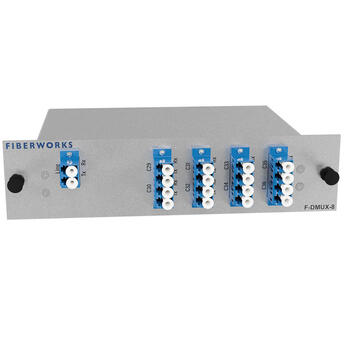

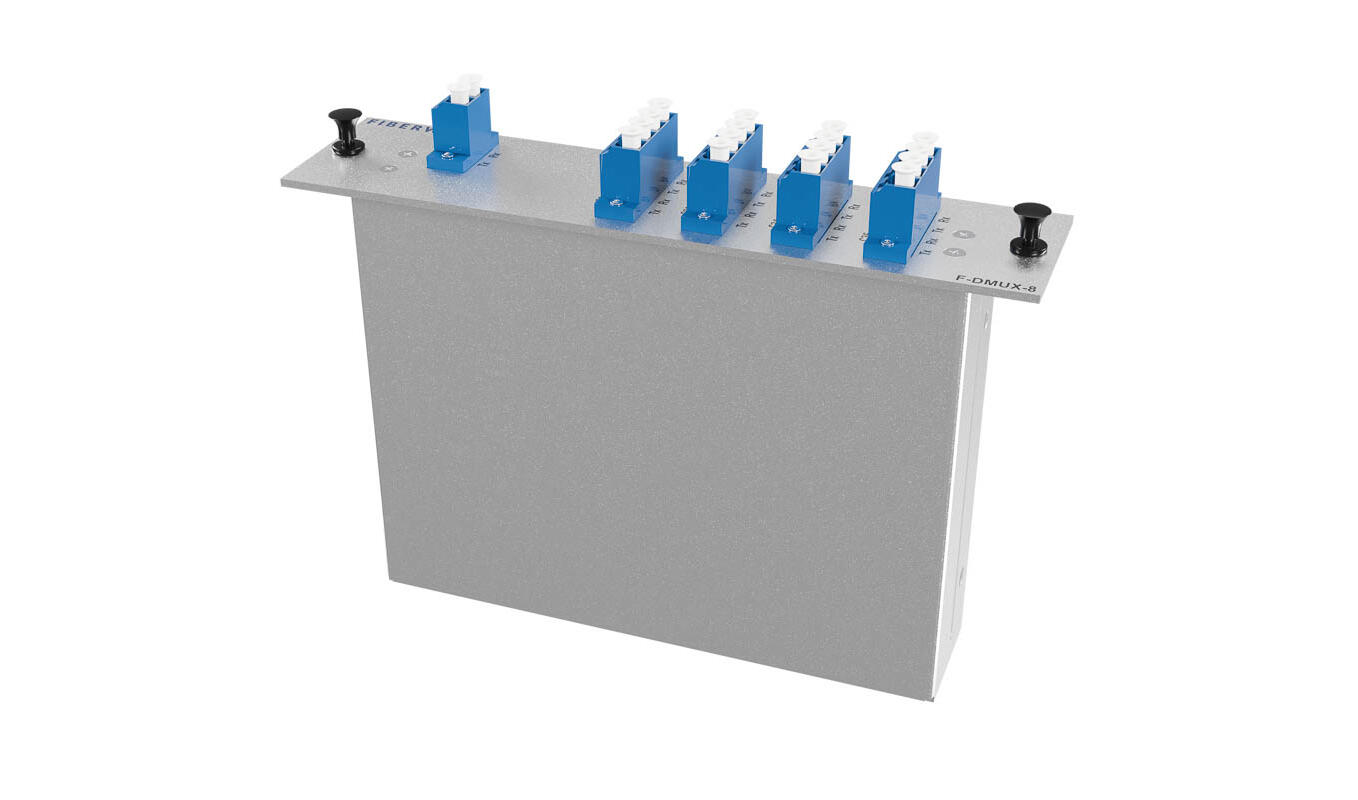

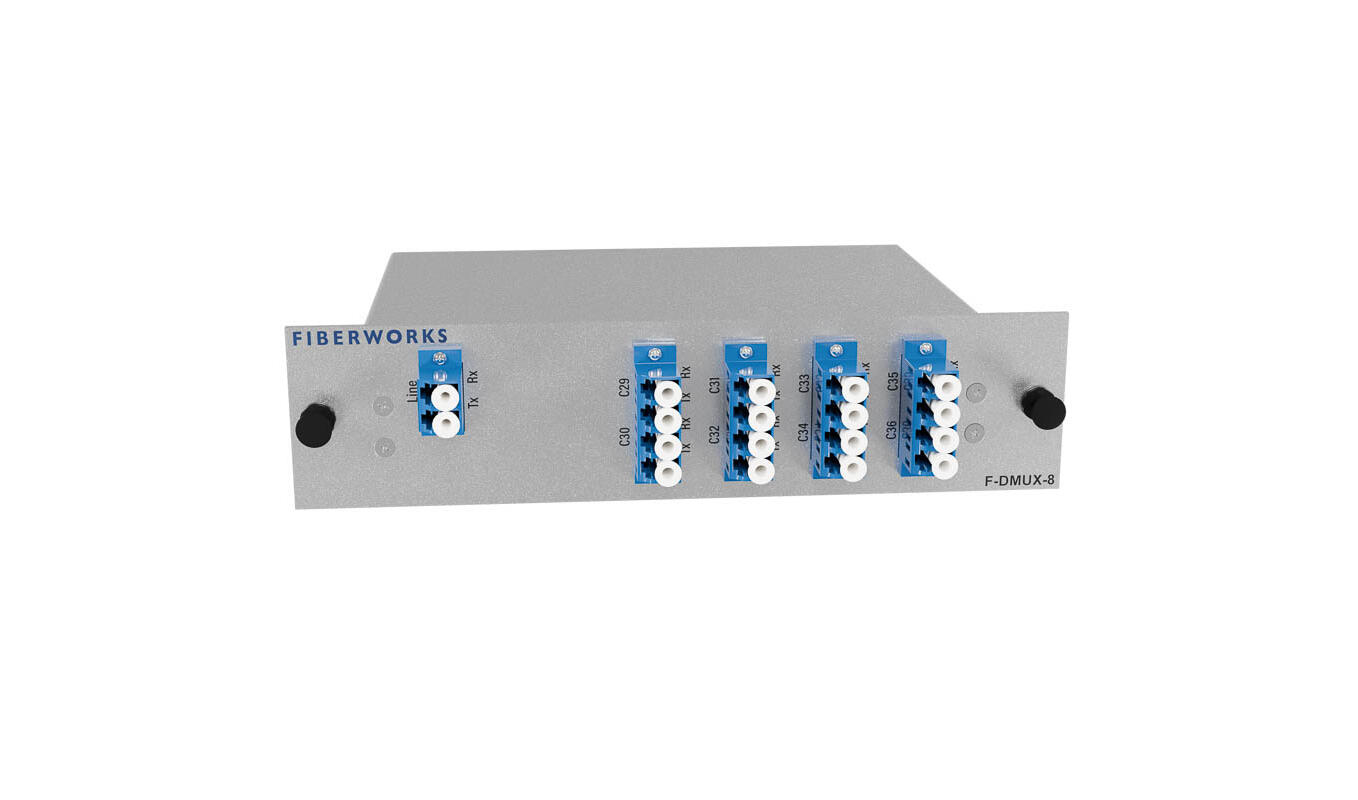

- Two modules fit in 1U in 19" rack
- LC/UPC connectors
