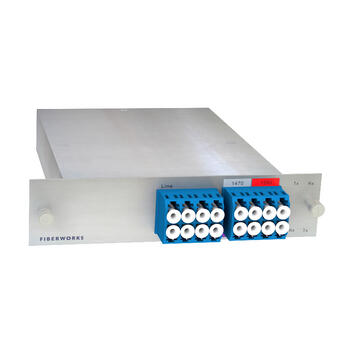

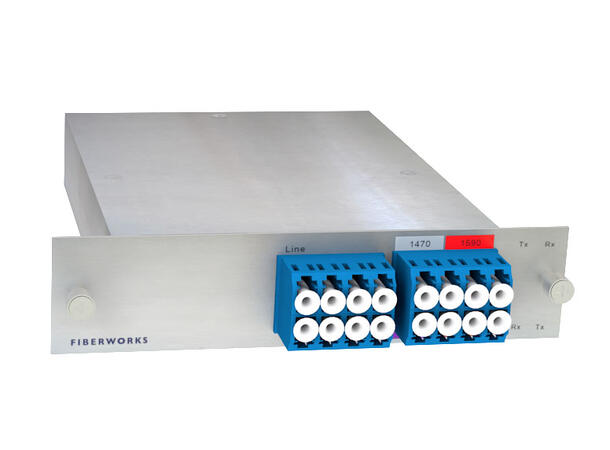

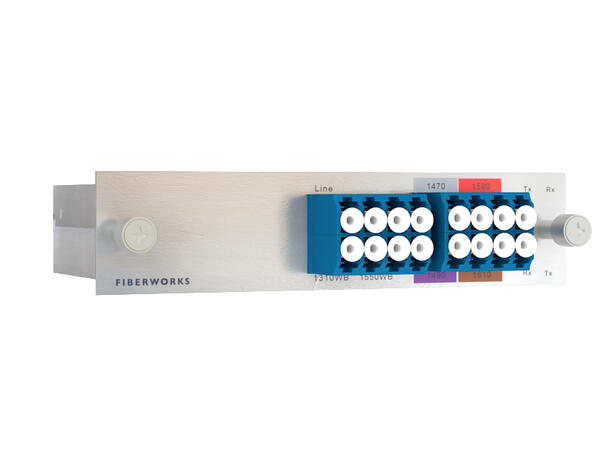

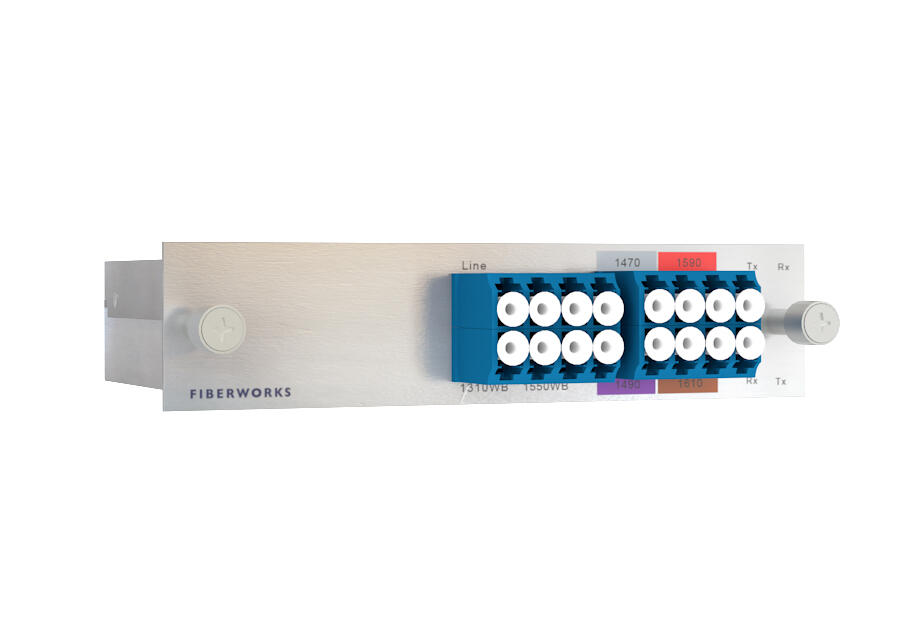

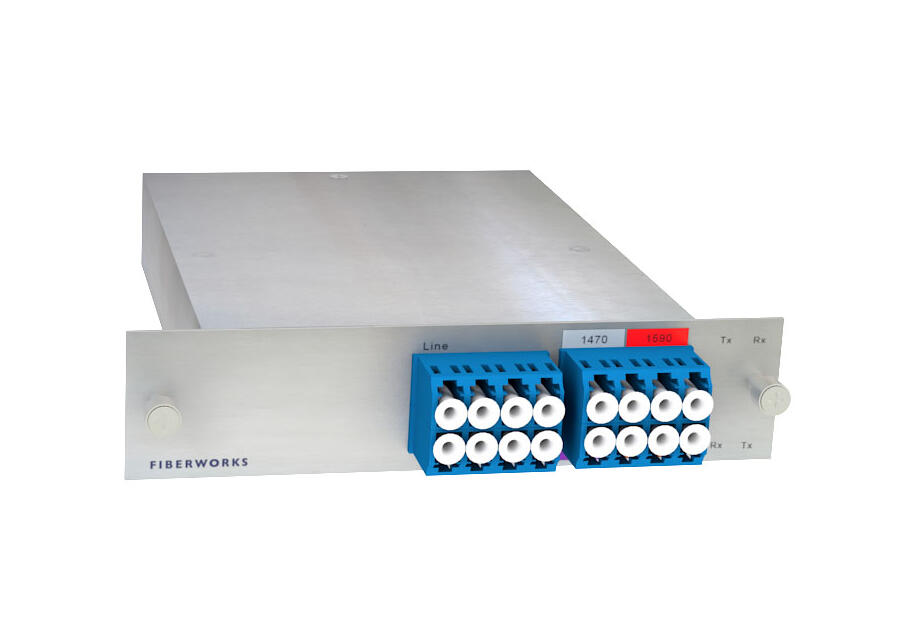

Fiberworks 4+2 ch. CWDM Mux+Demux LGX3

4 CWDM ch + 1310 & 1550 nm WB

Varenr: F-CMUX-4+2-4761-LGX3
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse
APPLICATIONS
- CWDM in combination with legacy 1310 and/or 1550 nm traffic
- CWDM in combination with active DWDM including OSC.

FEATURES

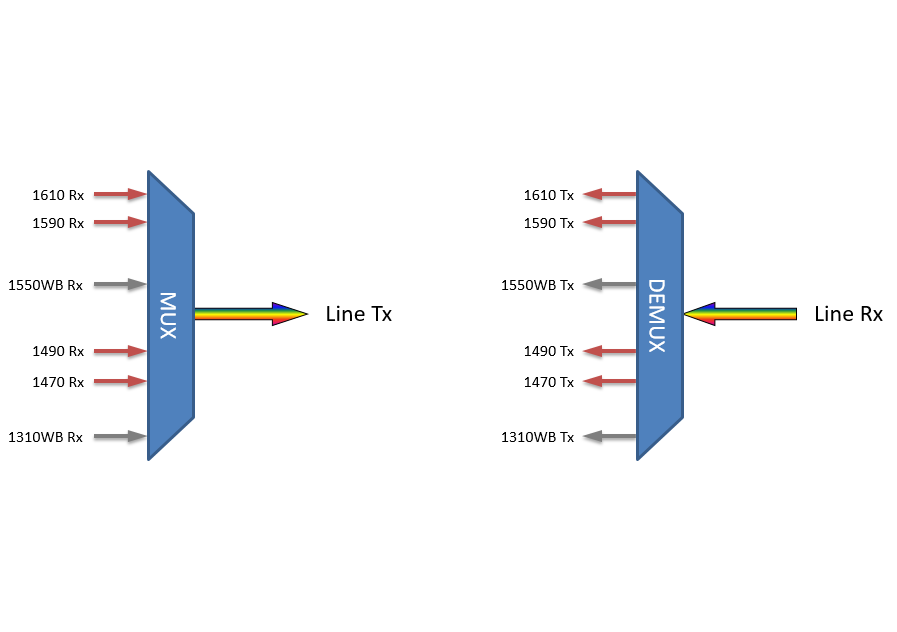

- Coarse WDM in compliance with ITU-T G.694.2

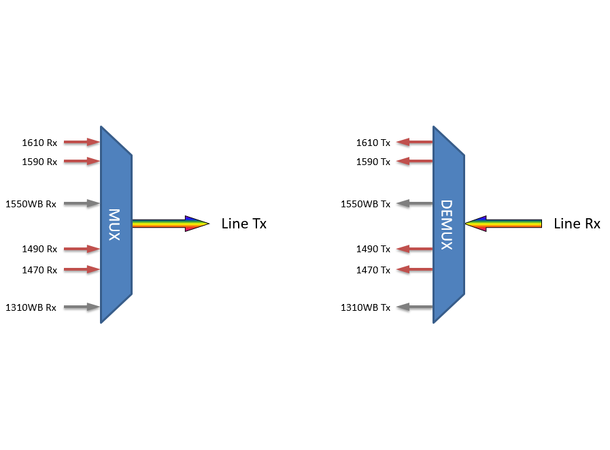

- CWDM channels 1470nm, 1490nm, 1590nm, 1610nm
- With 1310nm and 1550nm wideband ports
 - Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)
- Three modules fit in 1U in 19" rack or 14 modules in 3U

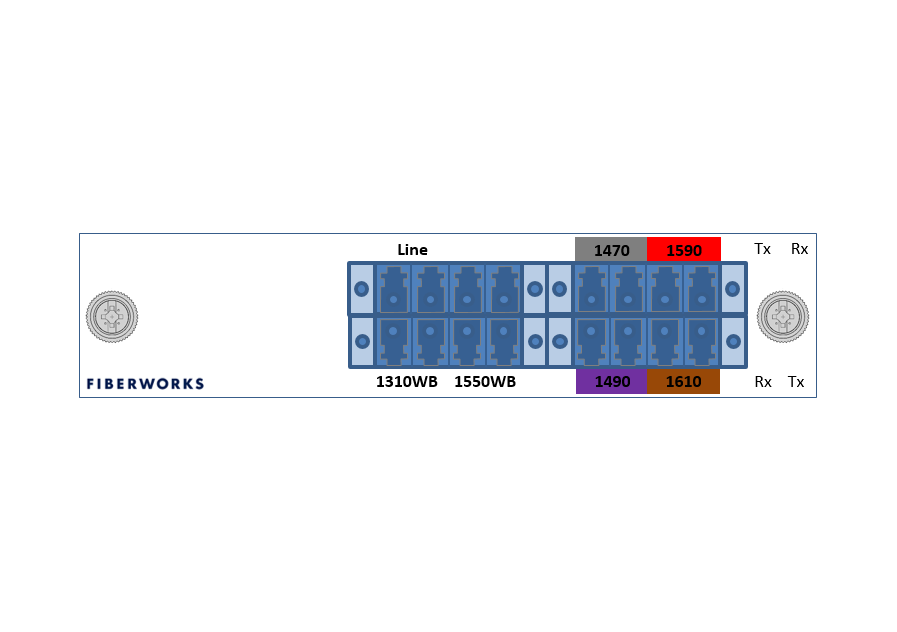

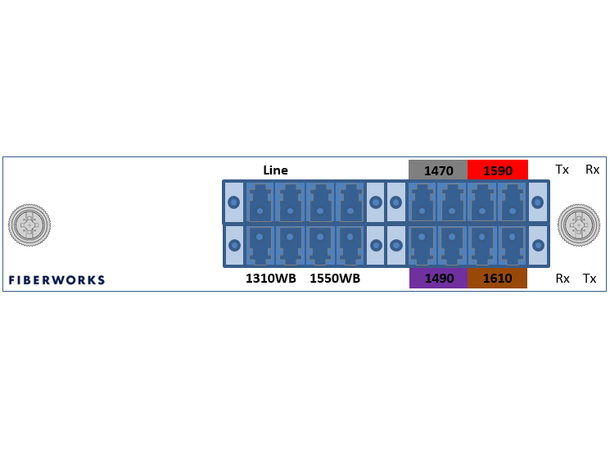

 - LC/UPC connectors


Teknisk info

Produktinformasjon

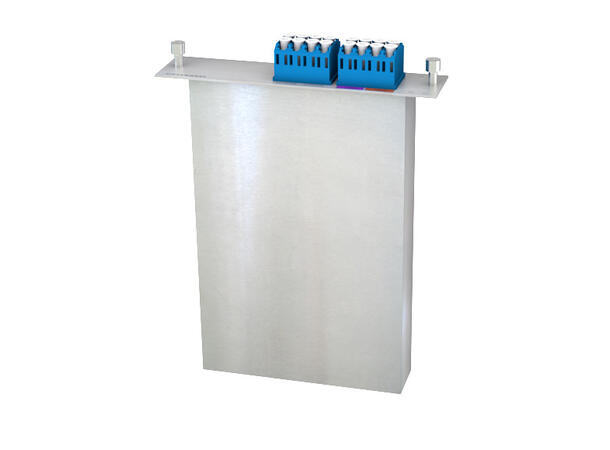

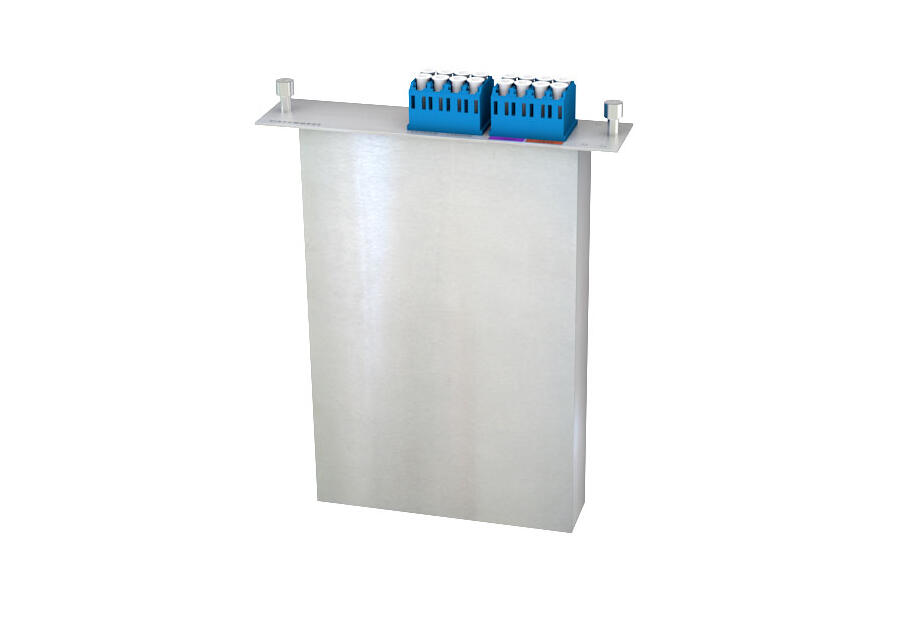

Formfaktor LGX3
Linjefiber Dobbel (fiberpar, mux+demux)
Antall kanaler 4
OADM Nei, mux/demux
Utvidelsesport Ja, 1310WB + 1550WB
Monitorport Nei
Konnektortype Rett (UPC, PC)
Konnektor LC/UPC
