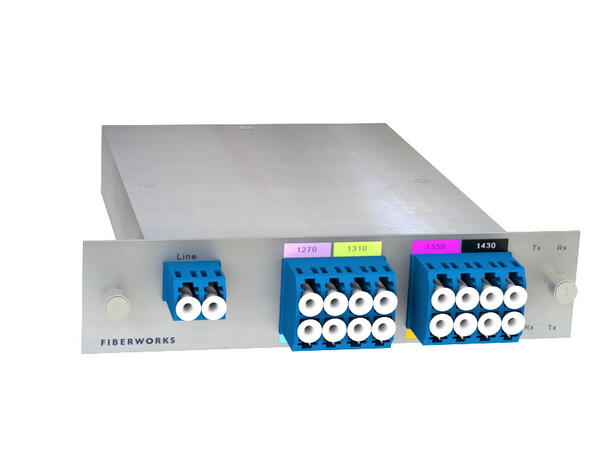

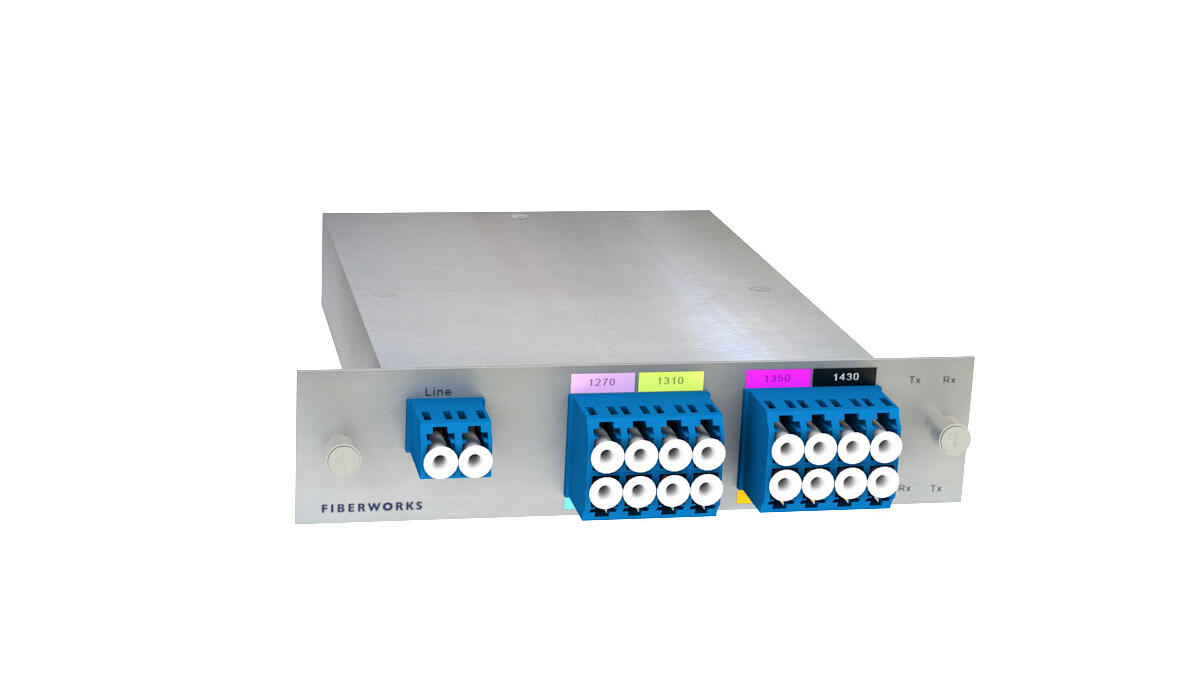

Fiberworks 8 ch. CWDM Mux+Demux, LGX3

Low band C27-C37 & C43-C45, LC/UPC

Varenr: F-CMUX+8-LB2745-LGX3
Datablad / mer produktinformasjon
BeskrivelseTeknisk info
Beskrivelse
FEATURES
- Coarse WDM in compliance with ITU-T G.694.2

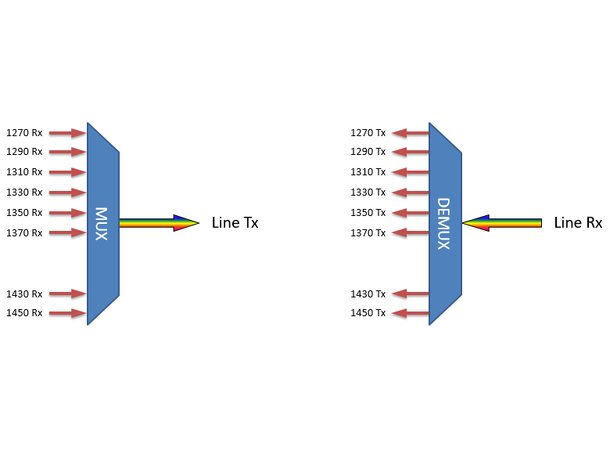

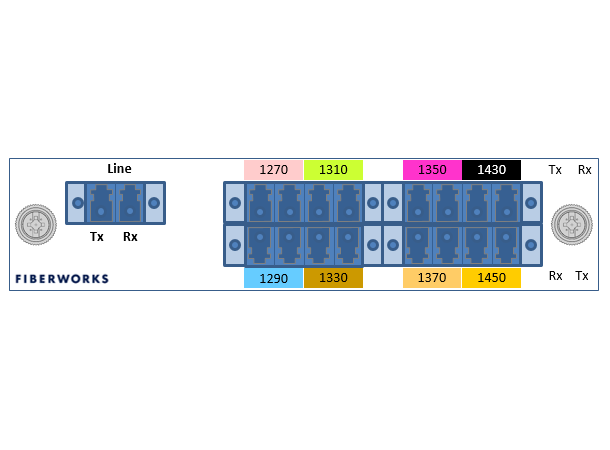

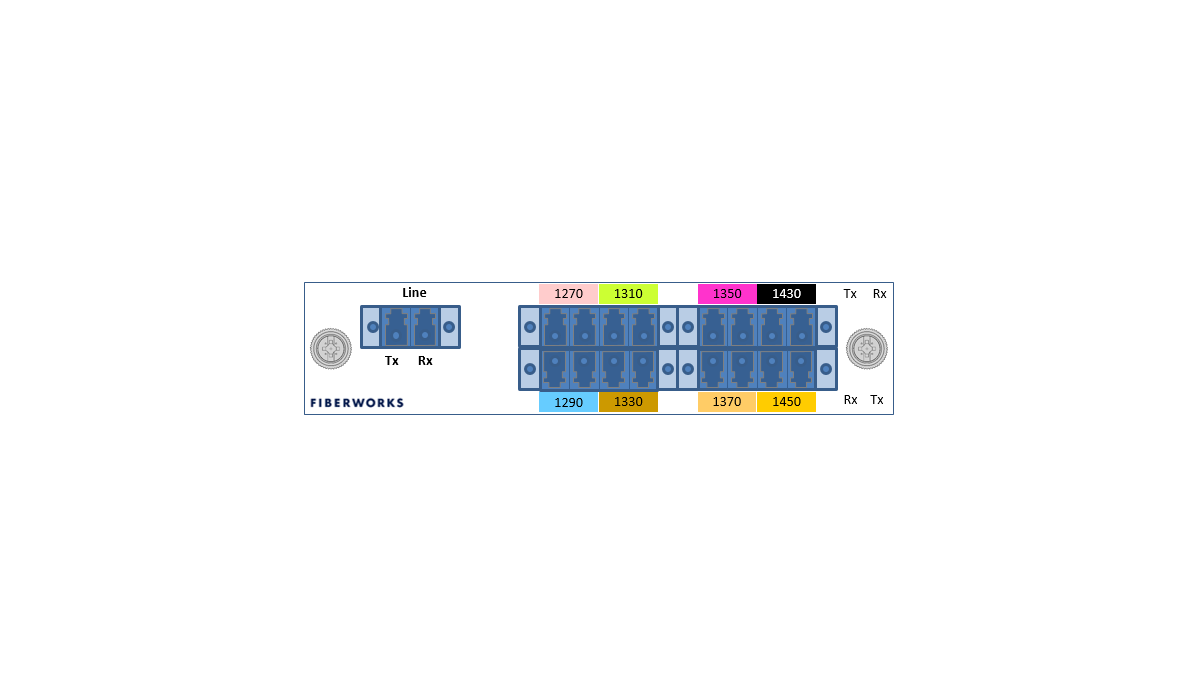

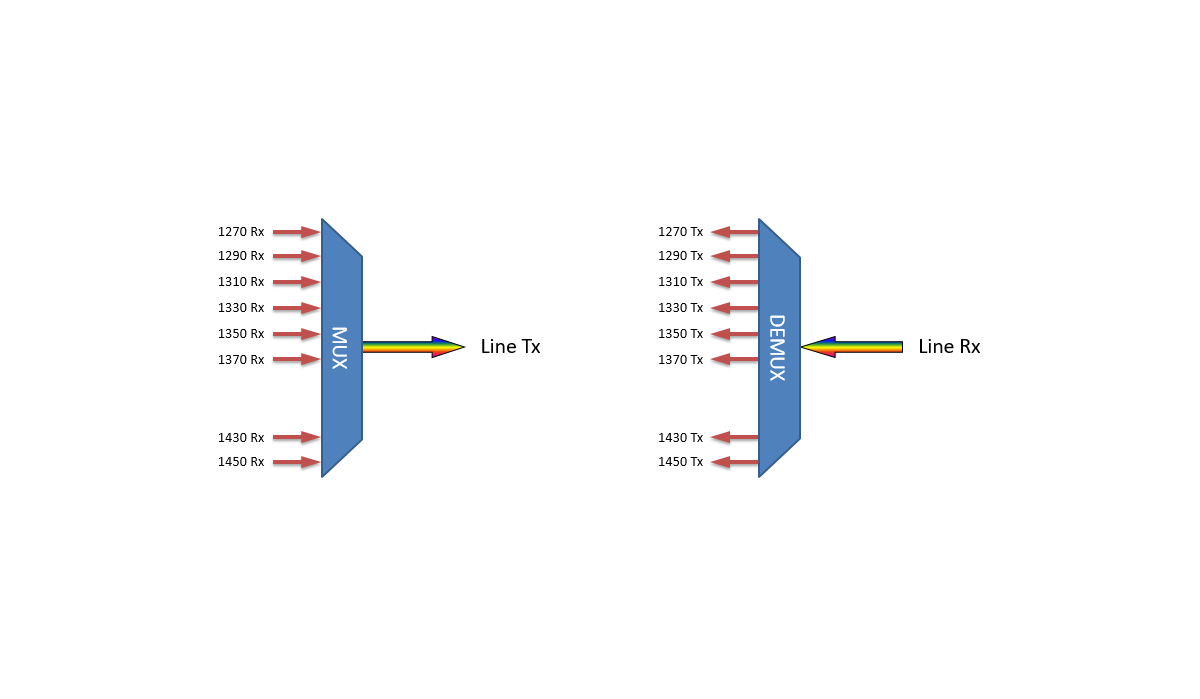

- 8 CWDM channels 1271, 1291, 1311, 1331, 1351, 1371, 1431 and 1451 nm
- To be used standalone or together with CMUX-8+1 to create a 16-channel system
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)

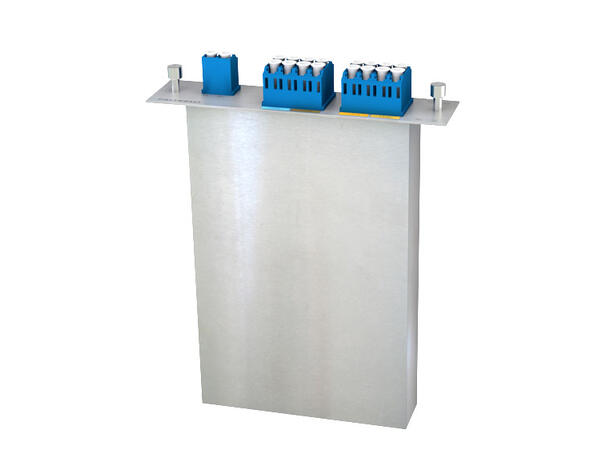

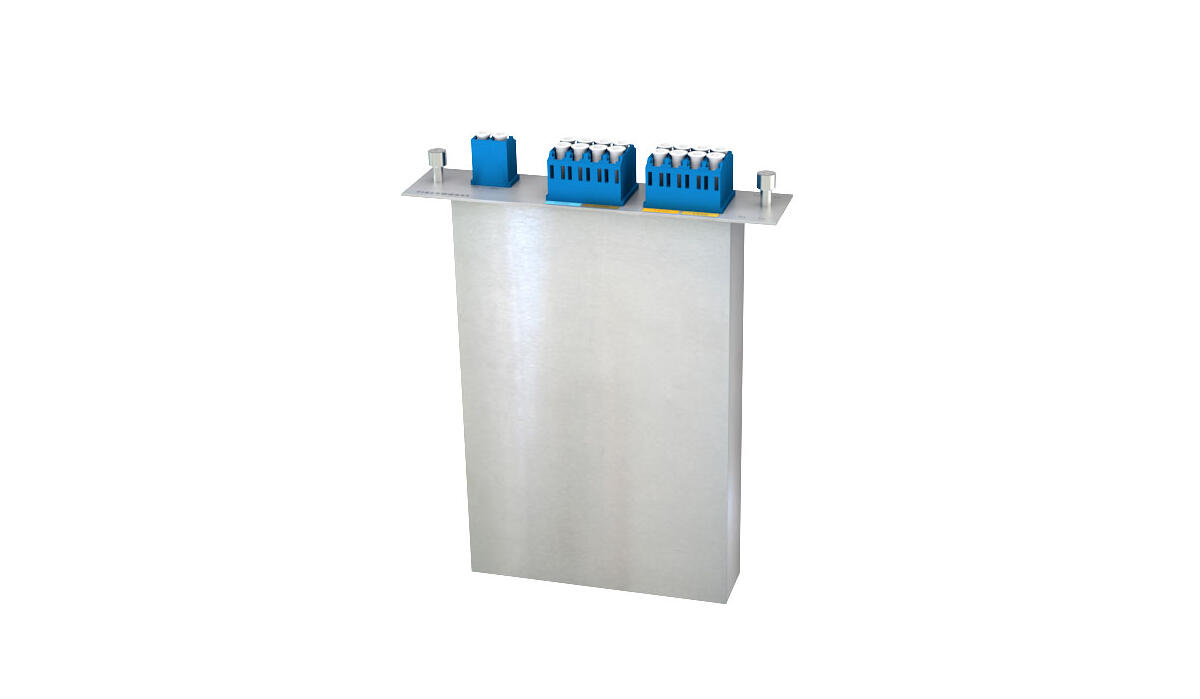

- LGX3 form factor - three modules fit in 1U in 19" rack
- LC/UPC connectors

Teknisk info

Produktinformasjon

Formfaktor LGX3
Linjefiber Dobbel (fiberpar, mux+demux)
Antall kanaler 8
OADM Nei, mux/demux
Utvidelsesport Nei
Monitorport Nei
Konnektortype Rett (UPC, PC)
Konnektor LC/UPC
