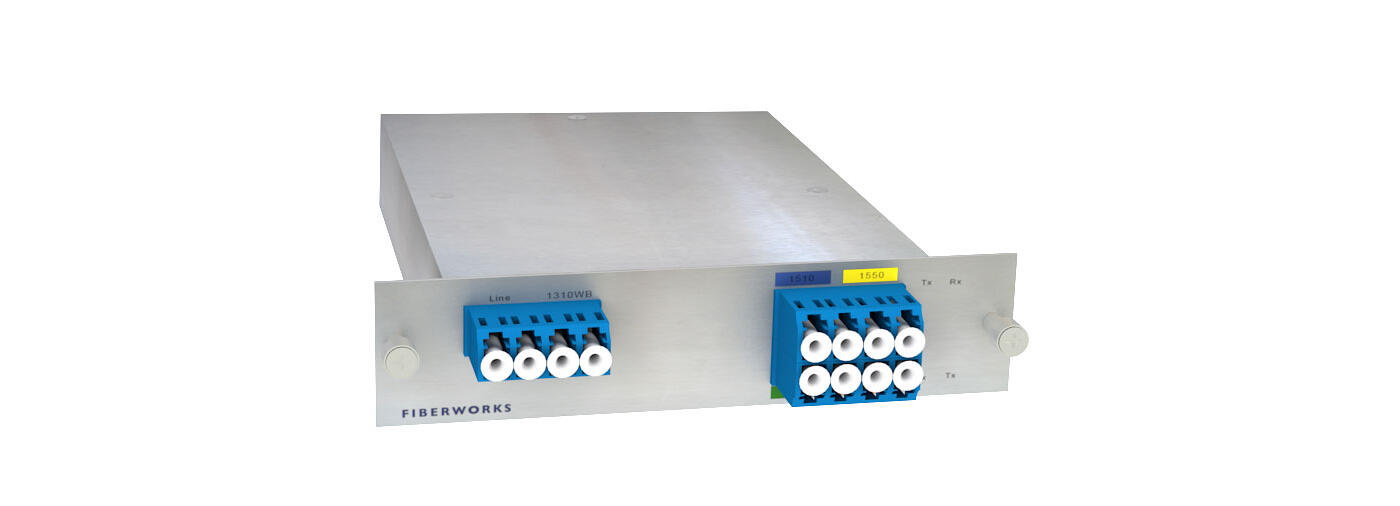

Fiberworks 4+1 ch. CWDM Mux+Demux, LGX3

C51-C57 + 1310nm/CWDM upgrade

Varenr: F-CMUX-4+1-5157-LGX3
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse
FEATURES

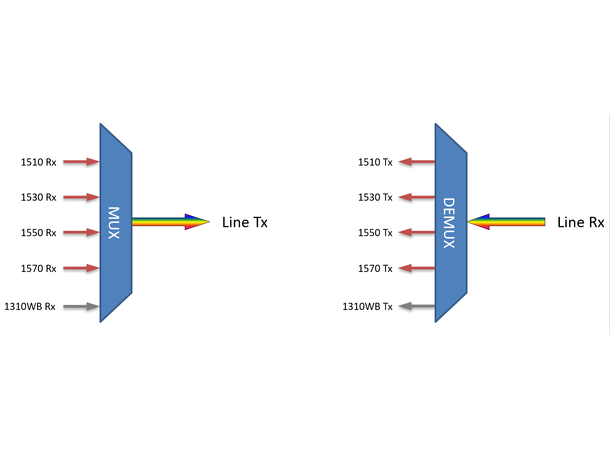

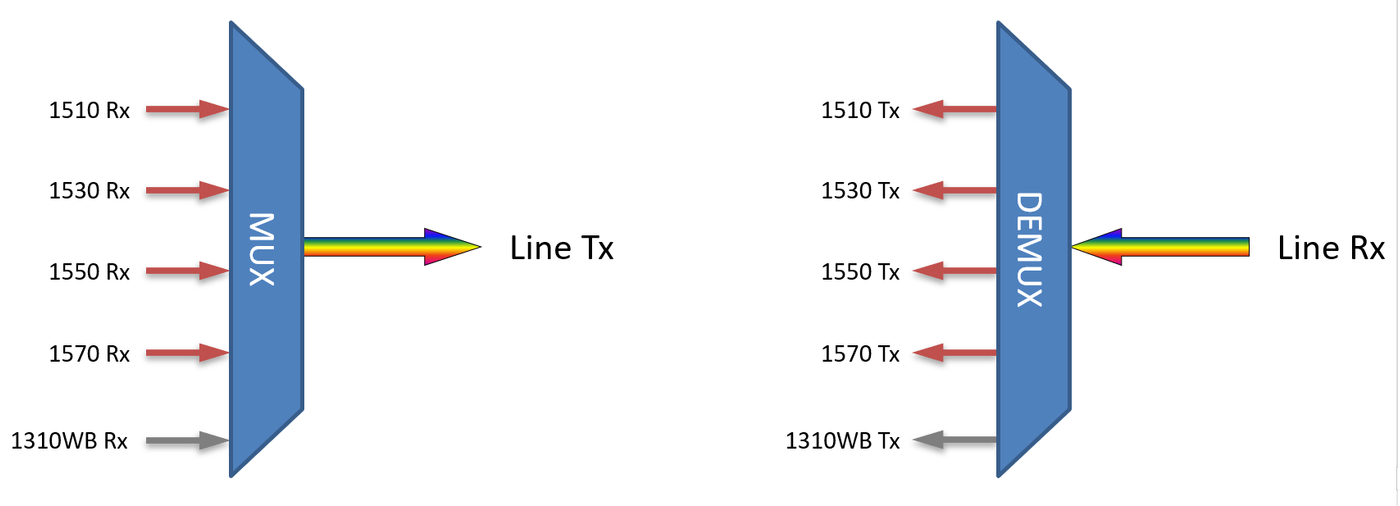

- Coarse WDM in compliance with ITU-T G.694.2
- CWDM channels 1510nm, 1530nm, 1550nm, 1570nm
- With 1310nm wideband port
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)

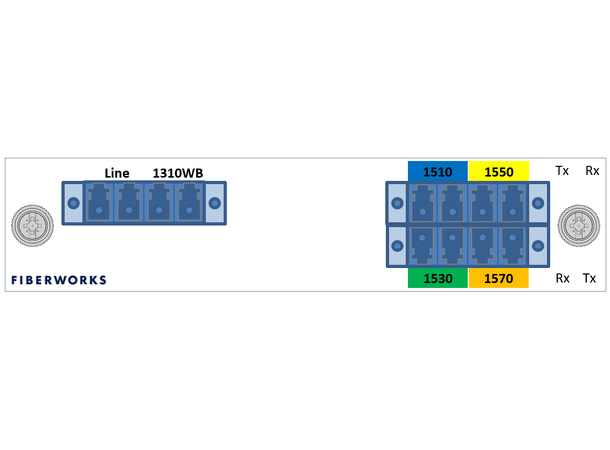

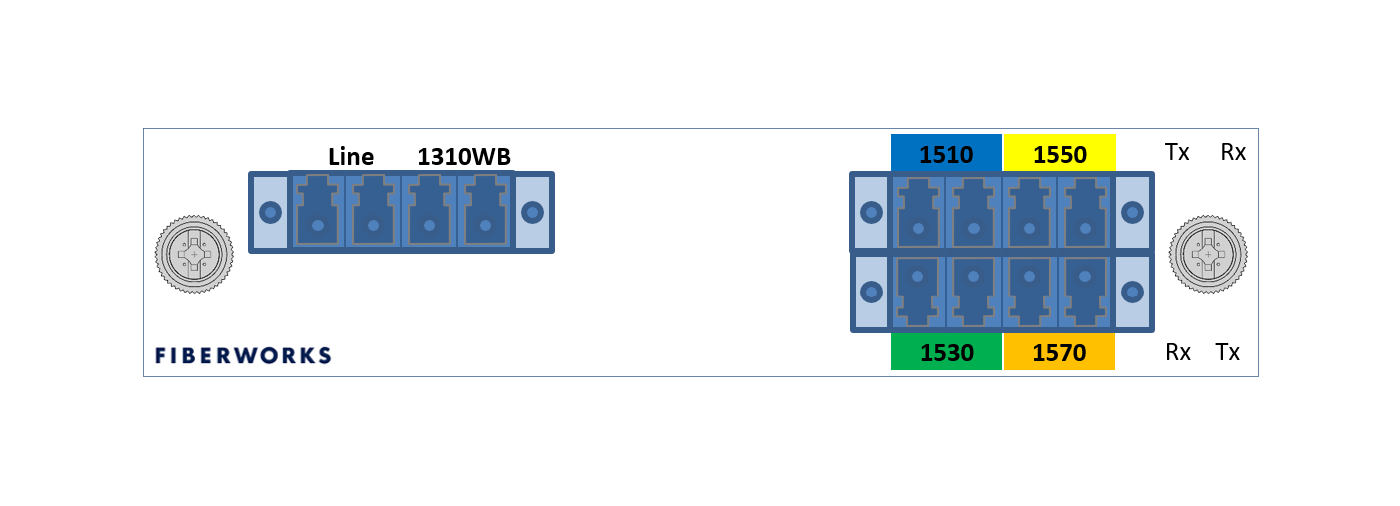

- LGX3 form factor - Three modules fit in 1U in 19" chassis or 14 modules in 3U chassis
- LC/UPC connectors


Teknisk info

Produktinformasjon

Formfaktor LGX3
Linjefiber Dobbel (fiberpar, mux+demux)
Antall kanaler 4
OADM Nei, mux/demux
Utvidelsesport Ja, 1310WB
Monitorport Nei
Konnektortype Rett (UPC, PC)
Konnektor LC/UPC
