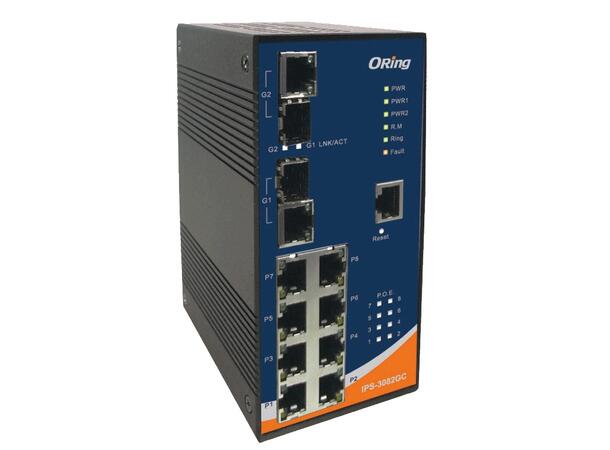

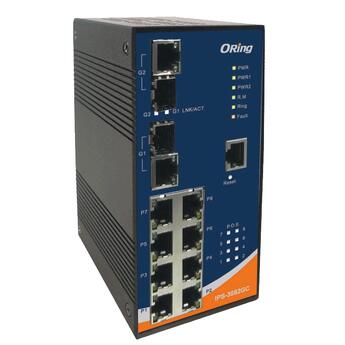

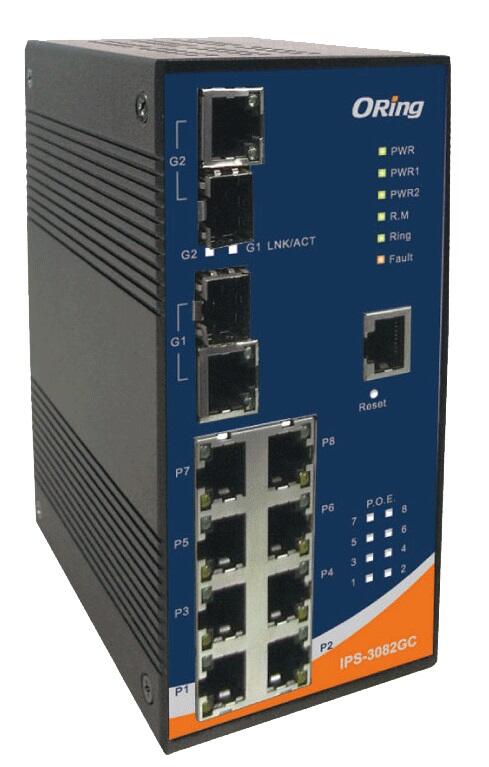

ORing FastE 8x PoE RJ45 + 2x SFP/RJ45

Managed Switch, Rugged

Varenummer: ORING-IPS-3082GC-AT
Alt. varenr: IPS-3082GC-AT
Datablad / mer produktinformasjon
BeskrivelseTeknisk info
Beskrivelse
OVERVIEW
IPS-3082GC-AT is managed redundant ring Ethernet switch with 8x10/100Base-T(X) ports with PoE (P.S.E.) function and 2xGigabit combo ports. With completely support of Ethernet redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-Chain and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.

IPS-3082GC-AT also supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IPS-3082GC-AT supports wide range 50~57VDC power inputs and generates 50VDC P.S.E. power output per port. Each IPS-3082GC-AT switch has 8X10/100Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. IPS-3082GC-AT support new DDM (Digital Diagnostic Monitoring) function, which can monitor instantly the status of electronic voltage, current and temperature.

All function of IPS-3082GC-AT can be managed centralized by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40 to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application with PoE function.



FEATURES
•Fastest Redundant Ethernet Ring : O-Ring (recovery time < 10ms over 250 units of connection)
•Open-Ring support the other vendor’s ring technology in open architecture
•8 ports P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
•STP/RSTP/MSTP supported
•Provides PoE power on delay function, users can define delay time for PoE power supply
•Supports PTP Client (Precision Time Protocol) clock synchronization
•IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
•Port Trunking for convenience of bandwidth management
•SNMP v1/v2c/v3 support for secured network management
•RMON for traffic monitoring
•Supports DDM (Digital Diagnostic Monitoring) function
•Event notification through Syslog, Email, SNMP trap, and Relay Output
•Windows utility (Open-Vision) supports centralized management and is configurable by Web-based     ,Telnet, Console (CLI)
•Supports two Gigabit combo ports
•Rigid IP-30 housing design
•DIN-Rail and wall mounting enabled
•Supports LLDP Protocol
