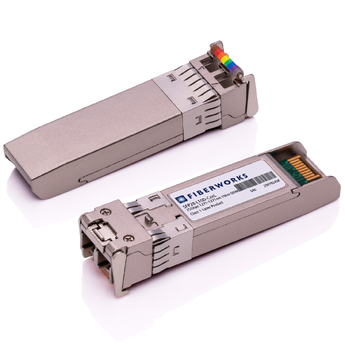

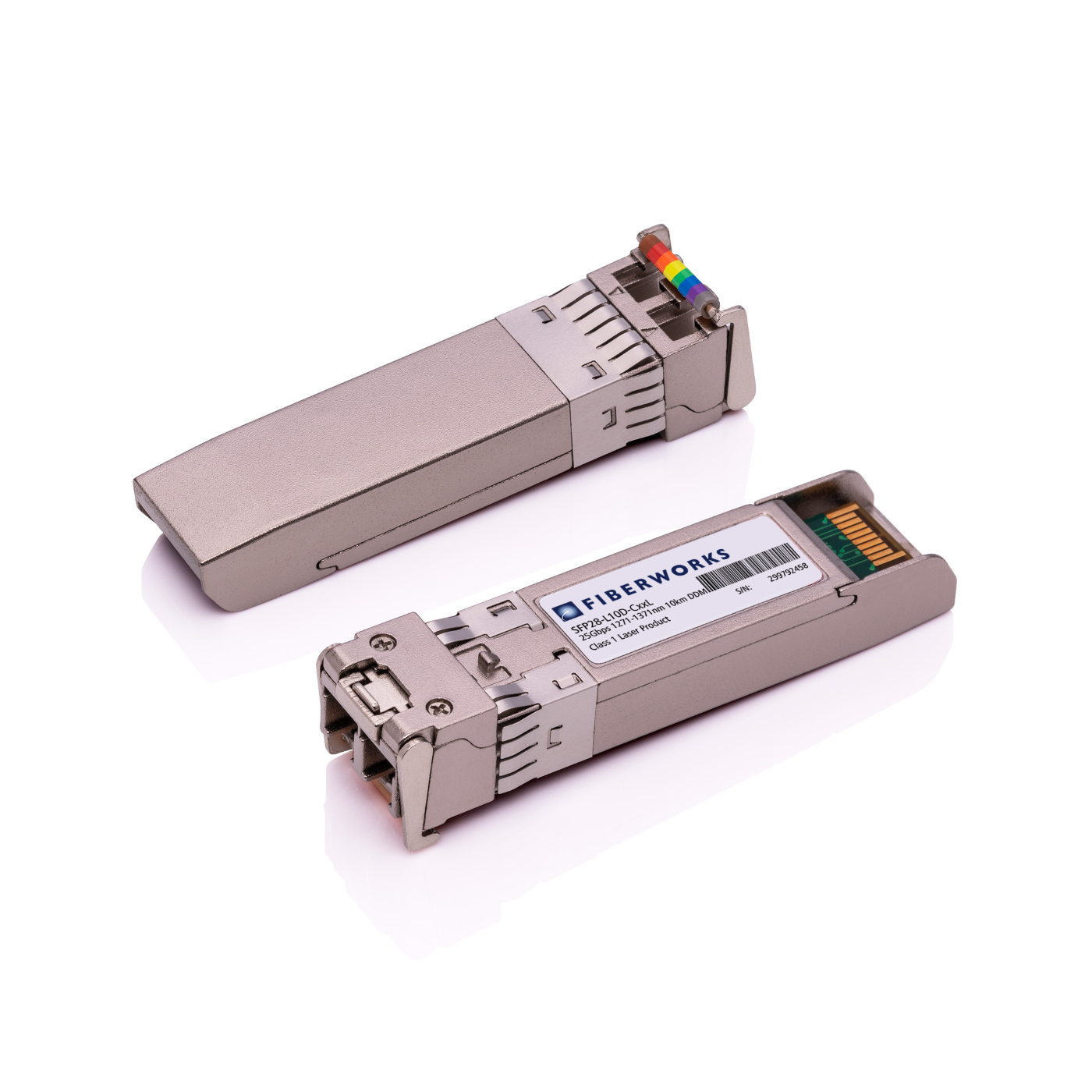

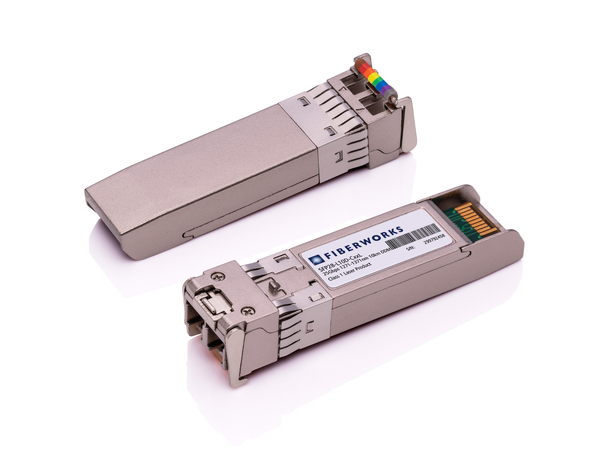

The SFP28 CWDM transceiver is a long range 25 Gbit/s pluggable optical module for data communications such as 25GBASE Ethernet.
The module is fully compliant with all SFP28 related MSA standards and Digital Diagnostic functions are available through an I2C interface. SFP28-CWDM complies with IEEE 802.3 and 25Gbase-LR.
CWDM modules operate at nominal Coarse Wavelength Division Multiplexing (CWDM) wavelengths with each step being 20 nm. The CWDM characteristics are fully compliant to the wavelength parameters specified in ITU standards G.694.2 and G.695.
APPLICATIONS
• 25GBASE-LR
• CWDM Systems
FEATURES
• Up to 10km transmission on SM fiber
• Hot-Pluggable SFP footprint
• LC Optical interface
• SFP28 MSA compatible
• Digital Diagnostics Monitoring interface
• Single 3.3 V power supply
• Power dissipation < 2 W
• RoHS-6 compliant (lead-free)
• Case operating temperature: 0°C to 70°C
