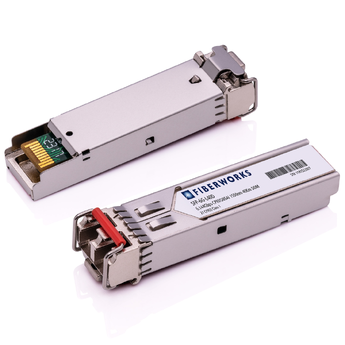

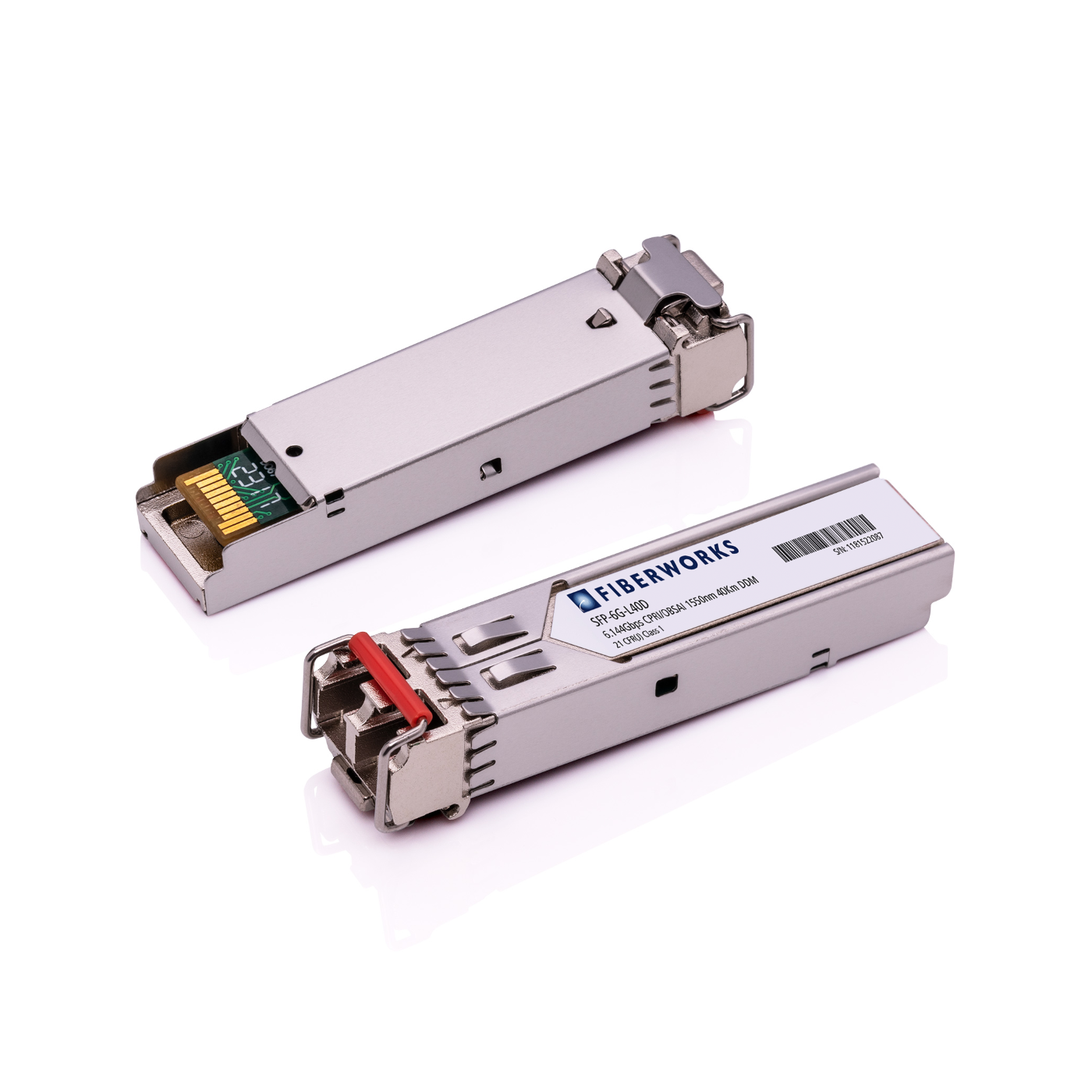

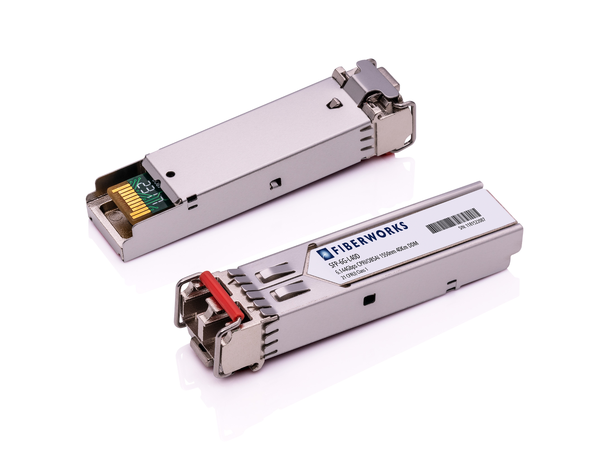

SFP, CPRI/OBSAI 6.144 Gbps, DDM, 40km

1550nm, 11dB, SM, Rugged, Fiberworks

Varenr: SFP-6G-L40D-U

Beskrivelse

APPLICATIONS
• CPRI 1.228 Gbps - 6.144 Gbps

• OBSAI 1.228 Gbps - 6.144 Gbps

FEATURES

• SFF-8472 Digital Diagnostic Function

• Supports CPRI/OBSAI data rates from 1.228 Gbps to 6.144 Gbps (CPRI line rates 2-6)

• Operating wavelength at 1550 nm
• 40 km transmission with 9/125 µm SM fiber (15 dB)
• Duplex LC connector type

• Small Form-Factor Pluggable (SFP) MSA compatible
• +3.3V single power supply

• Suitable for outdoor installations:

Industrial temperature range -40ºC to 85ºC

Teknisk info

Formfaktor	SFP+
Protokoll / bitrate	3G-SDI / SMPTE video 6G-SDI / SMPTE video CPRI/OBSAI 1.228 - 3.072 Gbps CPRI/OBSAI 4.915 - 6.144 Gbps
Mediatype	Singelmodus
Rekkevidde (dB)	15
Rekkevidde (km)	40
Bølgelengde (nm)	1550
Koding	Fiberworks
DDM	Ja
Konnektor	LC Duplex
Fareklasse	Laser klasse 1
Temperaturområde, drift	-40°C - +85°C (industriell)
Temperaturområde, lagring	-40°C - +85°C
Produktklassifisering/tollkoder	ECCN: 5A991 HS: 8517.62.0090
