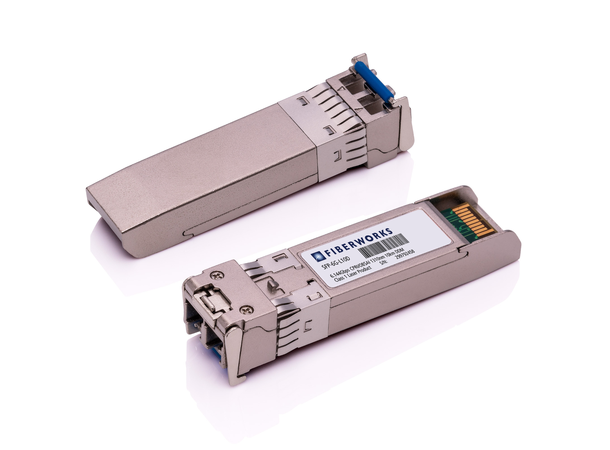

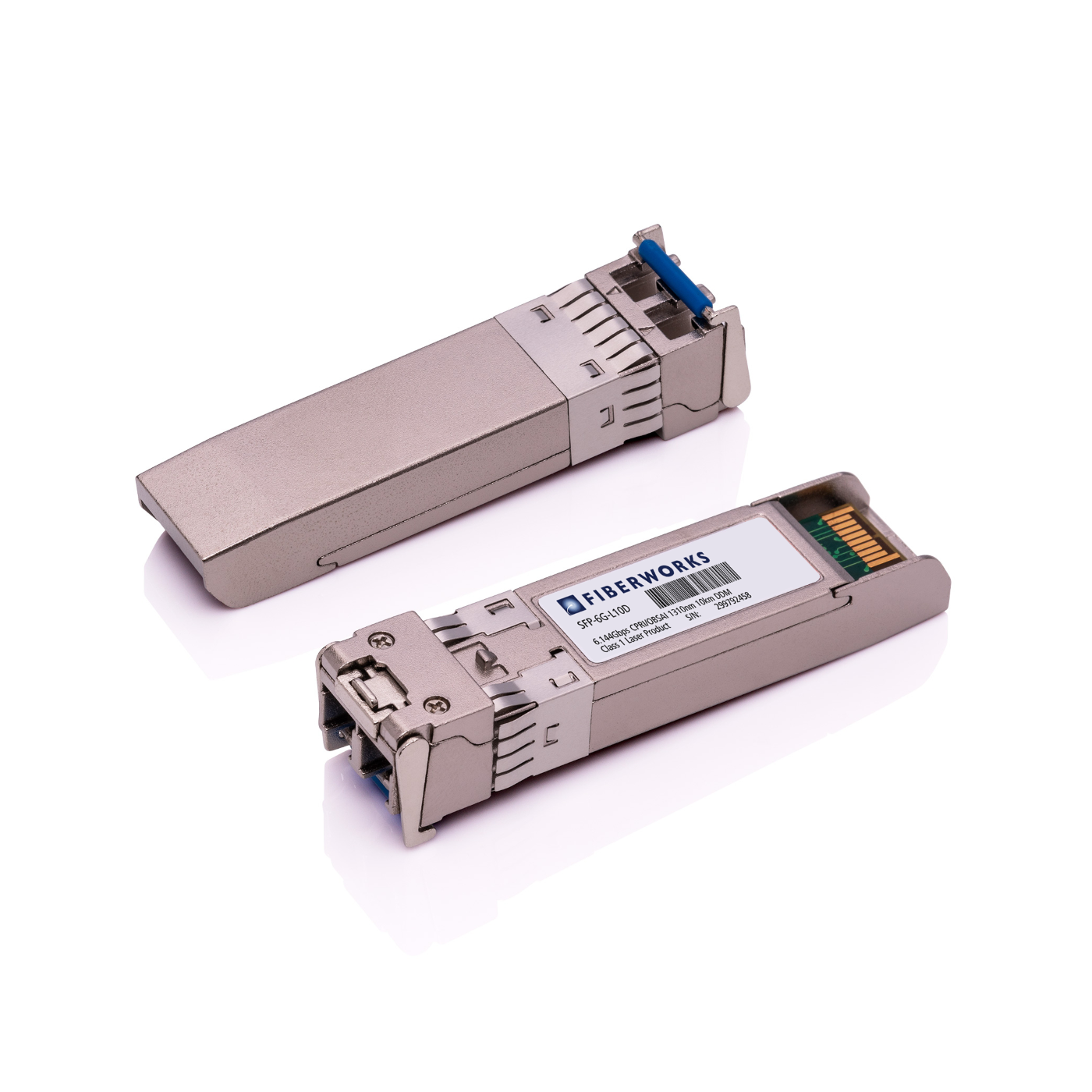

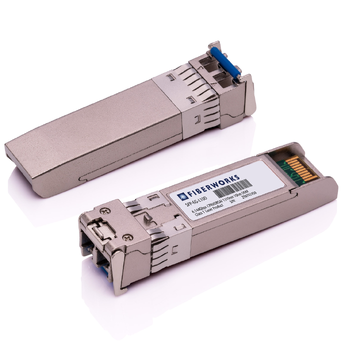

The SFP-6G optical transceivers are fully compliant with the SFP Multi-Source Agreement (MSA). The modules are hot pluggable and digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472.
The transceivers are designed for use in mobile fronthaul / wireless networks and are compatible with CPRI and OBSAI standards.
APPLICATIONS
• CPRI 1.228 Gbps - 6.144 Gbps
• OBSAI 1.228 Gbps - 6.144 Gbps
FEATURES
• SFF-8472 Digital Diagnostic Function
• Supports CPRI/OBSAI data rates from 1.228 Gbps to 6.144 Gbps (CPRI line rates 2-6)
• Operating wavelength at 1310 nm
• 10 km transmission with 9/125 µm SM fiber (9 dB)
• Duplex LC connector type
• Small Form-Factor Pluggable (SFP) MSA compatible
• +3.3V single power supply
• Suitable for outdoor installations:
Industrial temperature range -40ºC to 85ºC
