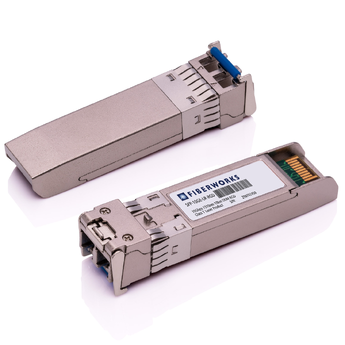

SFP+, 10G Ethernet, DDM, 10km, Rugged 1310nm, 9dB, SM, Moxa

SFP+, 10G Ethernet, DDM, 10km, Rugged

1310nm, 9dB, SM, Moxa

Varenr: SFP-10GE-LR-RGD5y-M
Alt. varenr: 5 year warranty
Datablad / mer produktinformasjon



Finner du ikke kodingen du er på jakt etter?



Ta kontakt med vår produktsjef.

Det kan hende vi likevel kan levere den.

Du kan også lese mer om transceiverkompatibilitet i denne artikkelen.

BeskrivelseTeknisk infoTilbehør
Beskrivelse

The SFP-10GE Ruggedized transceiver family are small form factor pluggable modules for bi-directional serial optical data communications such as 10GBASE Ethernet. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. The modules meet the requirements of the IEEE 802.3 10GBASE-SR/LR Ethernet standard and are suitable for interconnections in 10G Ethernet environments. The transceivers can also be used for a wide range of other protocols with bitrates between 600 Mbps and 11.1 Gbps.

SFP-10GE Rugged is made according to industrial standards and supports operating temperatures between -40 °C and 85 °C.


APPLICATIONS
• 10GBASE-LR
• Industrial environments

FEATURES
• 10 km transmission at 1310 nm
• 9 dB link budget
• Hot-Pluggable SFP+ footprint LC Optical Transceiver
• Small Form-Factor Pluggable (SFP) MSA compatible
• SFF-8472 Digital Diagnostics Monitoring
• Industrial operating temperature range, -40°C - +85°C


Teknisk info

Produktinformasjon

Formfaktor SFP+
Protokoll / bitrate
  • 10 Gigabit Ethernet
  • 10G Fibre Channel
  • SDH STM-64
  • OTN/G.709/G.sup43 OTU2(e)
  • 3G-SDI / SMPTE video
  • 6G-SDI / SMPTE video
  • CPRI/OBSAI 1.228 - 3.072 Gbps
  • CPRI/OBSAI 4.915 - 9.830 Gbps
Mediatype Singelmodus
Rekkevidde (dB) 9
Rekkevidde (km) 10
Bølgelengde (nm) 1310
Lasertype DFB
Mottakertype PIN
Linjemodulasjon NRZ
Sendestyrke (Tx power) min. [dBm] -6
Sendestyrke (Tx power) max. [dBm] -0,5
Mottakerfølsomhet (Rx power min.) [dBm] -15
Max. mottakereffekt [dBm] +0,5
Koding Moxa
DDM Ja
Konnektor LC Duplex
Fareklasse Laser klasse 1
Temperaturområde, drift -40°C - +85°C (industriell)
Temperaturområde, lagring -40°C - +85°C
Produktklassifisering/tollkoder
  • ECCN: 5A991
  • HS: 8517.62.0090
