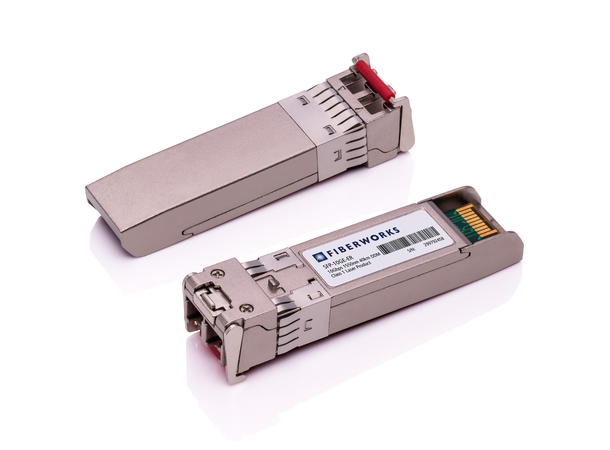

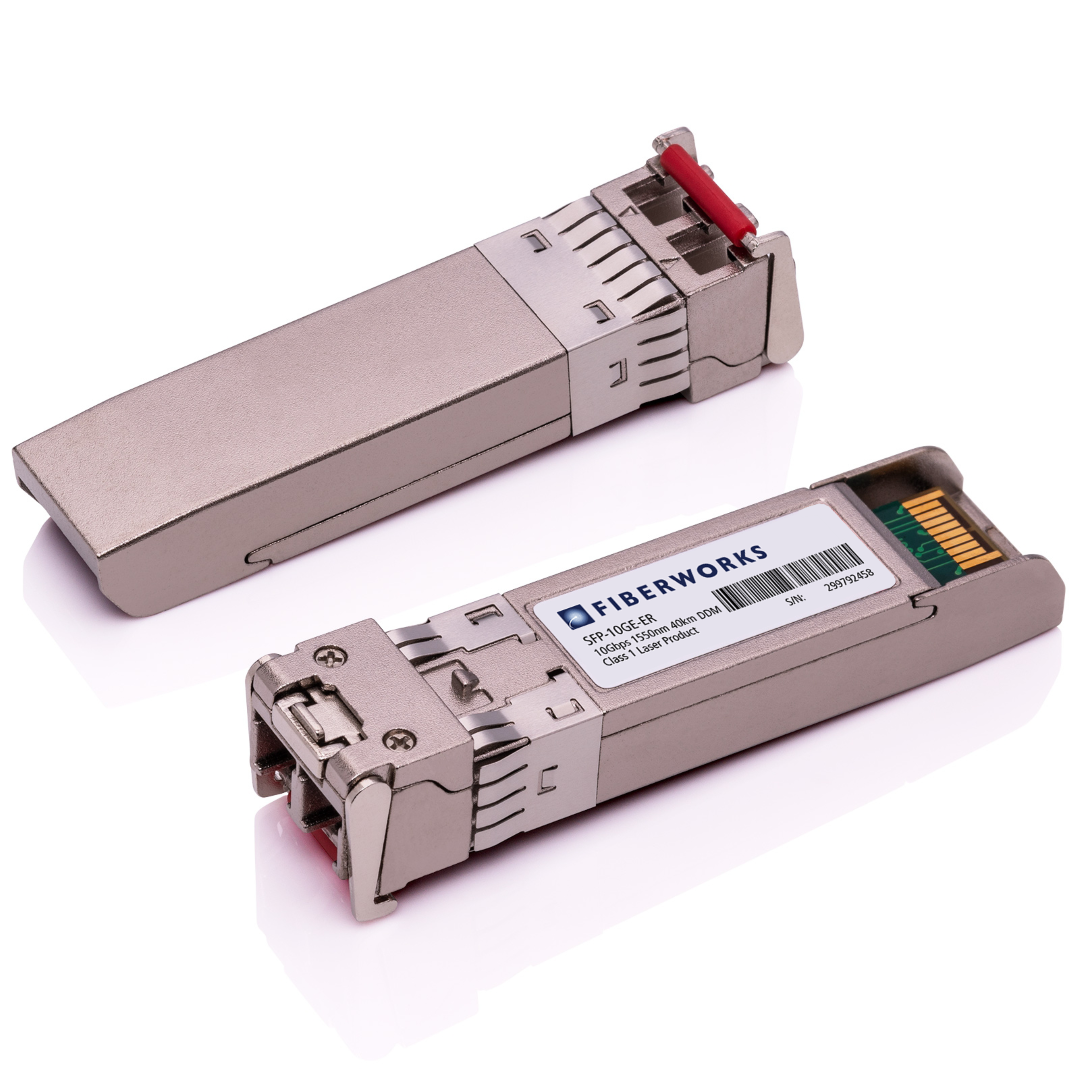

The SFP-10GE transceiver family are small form factor pluggable modules for bi-directional serial optical data communications such as 10GBASE Ethernet. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. The modules meet the requirements of the IEEE 802.3 10GBASE Ethernet standards and are suitable for interconnections in 10G Ethernet environments.
The transceivers can also be used for a wide range of other protocols with bitrates between 600 Mbps and 11.1 Gbps.
APPLICATIONS
• 10GBASE-ER
FEATURES
• Hot pluggable SFP+ MSA form factor
• Data rate up to 11.1Gb/s
• Transmission distance up to 40km
• 1550nm laser transmitter
• PIN photo-detector
• Single 3.3Vpower supply
• Low power consumption
• Duplex LC optical receptacle
• Digital Optics Monitoring (DOM)
• RoHS-6 compliant (lead-free)
• Operating Case Temperature:
Standard: -5°C to 70°C
