Her er du nå: Hjem   >   Produkter   >   Transceiver   >   SFP+   >   10 Gigabit Ethernet   >   SFP+, 10G Ethernet, DDM, 40km

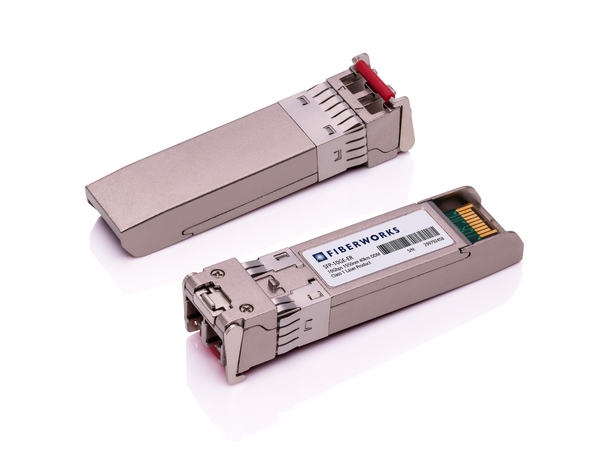

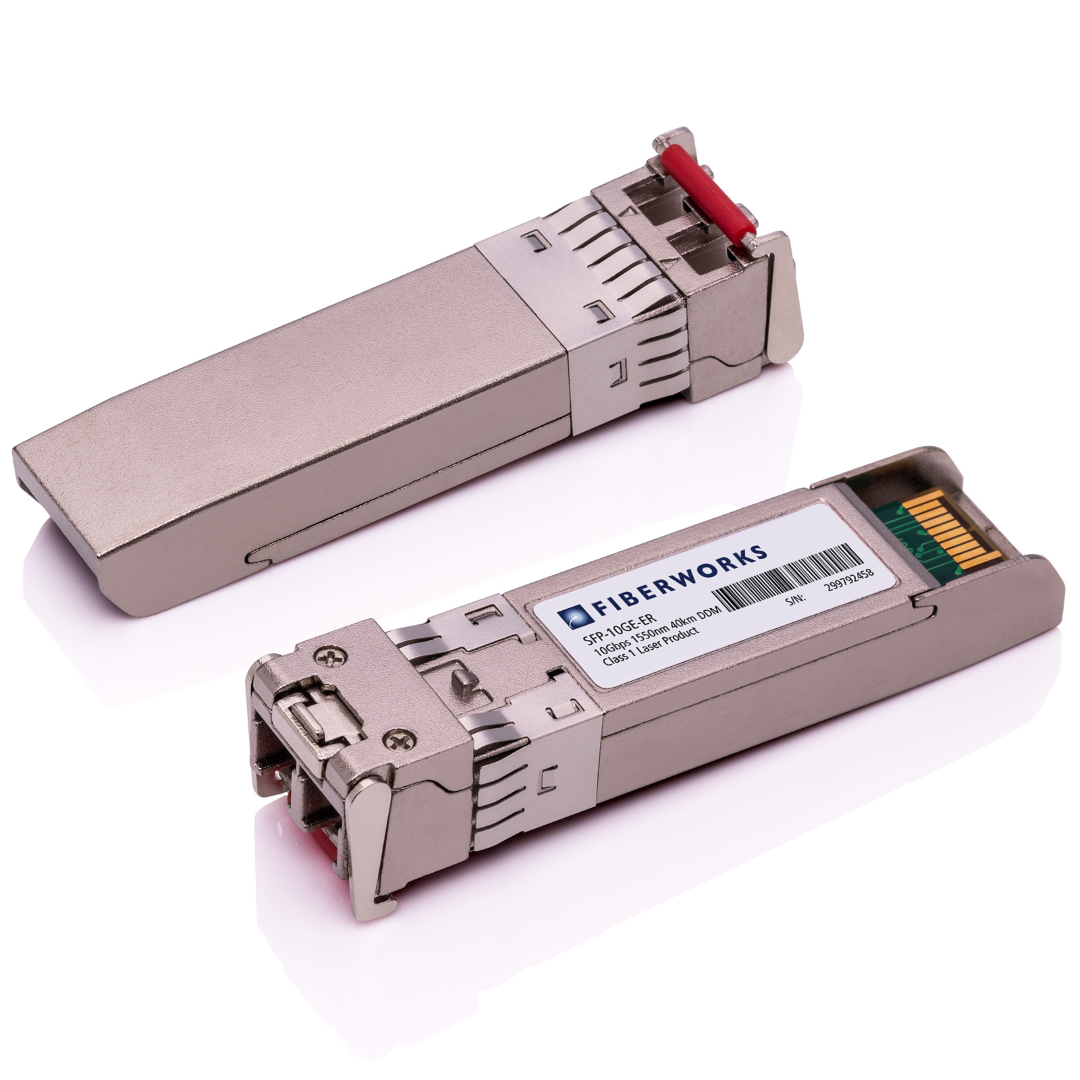

SFP+, 10G Ethernet, DDM, 40km 1550nm, 15dB, SM, Cisco

SFP+, 10G Ethernet, DDM, 40km

1550nm, 15dB, SM, Cisco

Varenr: SFP-10GE-ER-C
Alt. varenr: SFP-10G-ER
Vis varianter som liste
Datablad / mer produktinformasjon



Finner du ikke kodingen du er på jakt etter?



Ta kontakt med vår produktsjef.

Det kan hende vi likevel kan levere den.

Du kan også lese mer om transceiverkompatibilitet i denne artikkelen.

BeskrivelseTeknisk info
Beskrivelse
APPLICATIONS
• 10GBASE-ER

FEATURES
• Hot pluggable SFP+ MSA form factor
• Data rate up to 11.1Gb/s
• Transmission distance up to 40km
• 1550nm laser transmitter
• PIN photo-detector
• Single 3.3Vpower supply
• Low power consumption
• Duplex LC optical receptacle
• Digital Optics Monitoring (DOM)
• RoHS-6 compliant (lead-free)
• Operating Case Temperature:
  Standard: -5°C to 70°C


Teknisk info

Produktinformasjon

Formfaktor SFP+
Protokoll / bitrate
  • 10 Gigabit Ethernet
  • 10G Fibre Channel
  • SDH STM-64
  • OTN/G.709/G.sup43 OTU2(e)
  • CPRI/OBSAI 1.228 - 3.072 Gbps
  • CPRI/OBSAI 4.915 - 9.830 Gbps
Mediatype Singelmodus
Rekkevidde (dB) 15
Rekkevidde (km) 40
Bølgelengde (nm) 1550
DDM Ja
Konnektor LC Duplex
