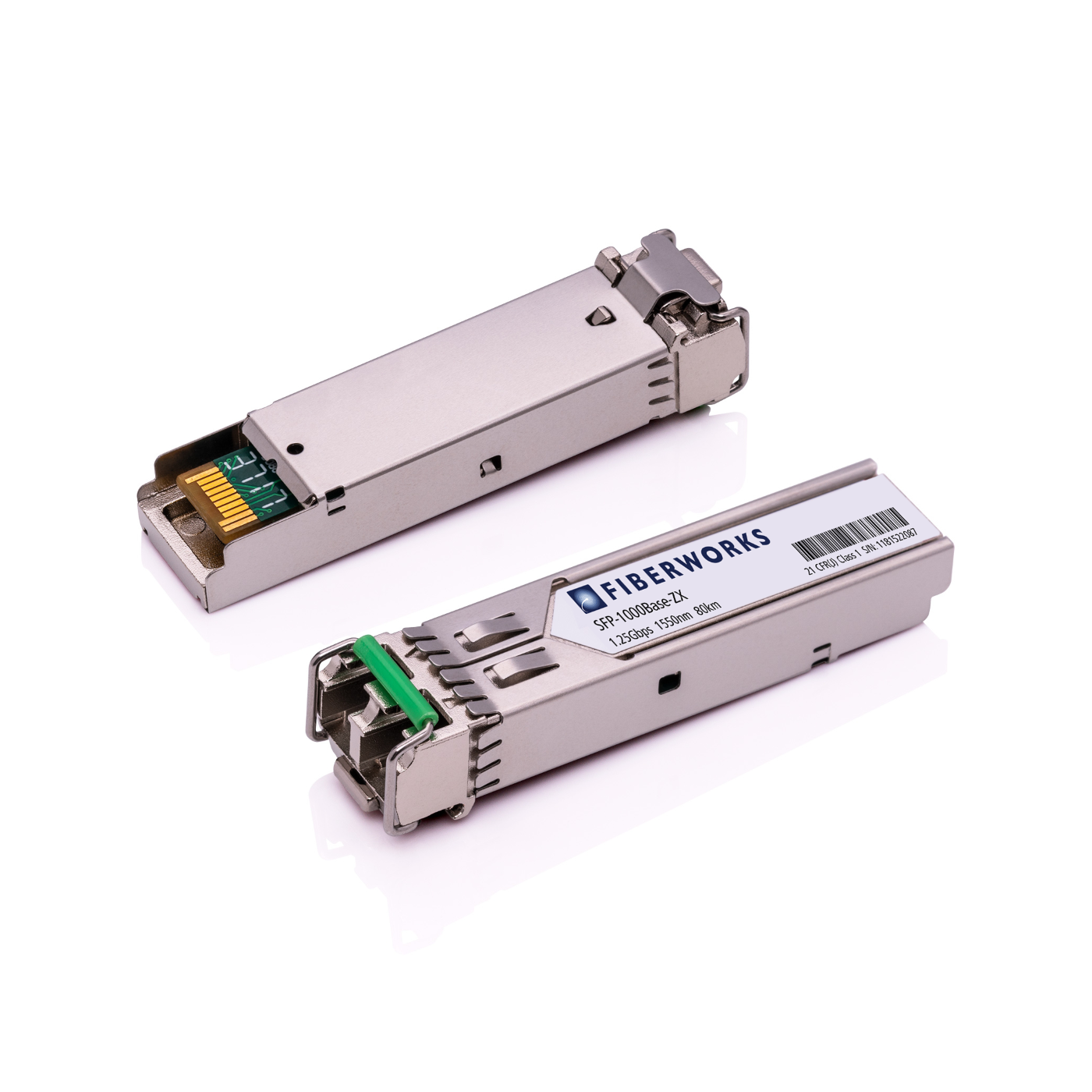

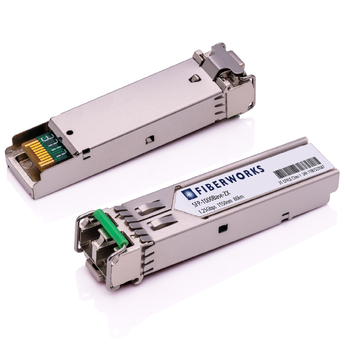

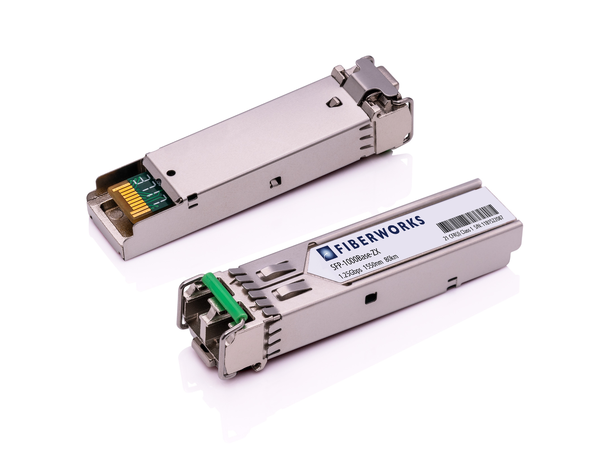

SFP, 1.25 Gbps GigE, 80km 1550nm, 24dB, SM/MM

SFP, 1.25 Gbps GigE, 80km

1550nm, 24dB, SM/MM

BeskrivelseTeknisk info
Beskrivelse
APPLICATIONS
• 1000Base-ZX
• 1G Fibre Channel

FEATURES
• Compatible with Small-Form Pluggable (SFP) MSA
• Compatible with IEEE 802.3z
• Compatible with ANSI specifications for Fibre Channel
• Dual data-rate of 1.25 Gb/s and 1.6025 Gb/s operation
• Operating wavelength at 1550 nm
• Duplex LC connector type
• 80 km transmission with 9/125 µm SM fiber
• Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)
• Compatible with IEC 61000-4-2 and GR-1089-CORE Electrostatic Discharge (ESD)
• +3.3V single power supply
Teknisk info

Produktinformasjon

Formfaktor SFP
Protokoll / bitrate Gigabit Ethernet
Mediatype
  • Singelmodus
  • Multimodus
Rekkevidde (dB) 24
Rekkevidde (km) 80
Bølgelengde (nm) 1550
Lasertype DFB
Mottakertype PIN
Linjemodulasjon NRZ
Sendestyrke (Tx power) min. [dBm] 0
Sendestyrke (Tx power) max. [dBm] +5
Mottakerfølsomhet (Rx power min.) [dBm] -24
Max. mottakereffekt [dBm] -3
DDM Nei
Konnektor LC Duplex
Fareklasse Laser klasse 1
Temperaturområde, drift 0°C - +70°C (standard)
Temperaturområde, lagring -40°C - +85°C
Produktklassifisering/tollkoder
  • ECCN: 5A991
  • HS: 8517.62.0090
