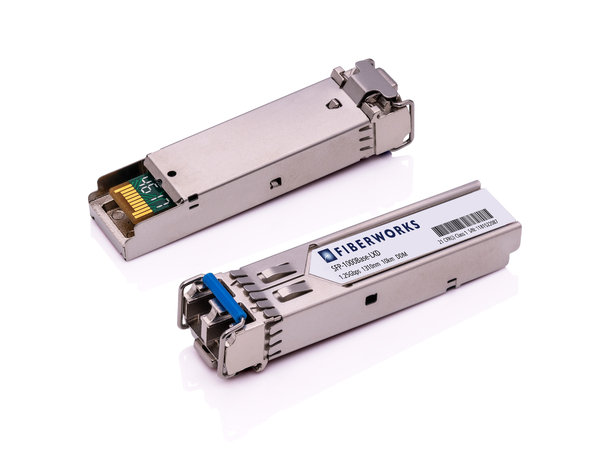

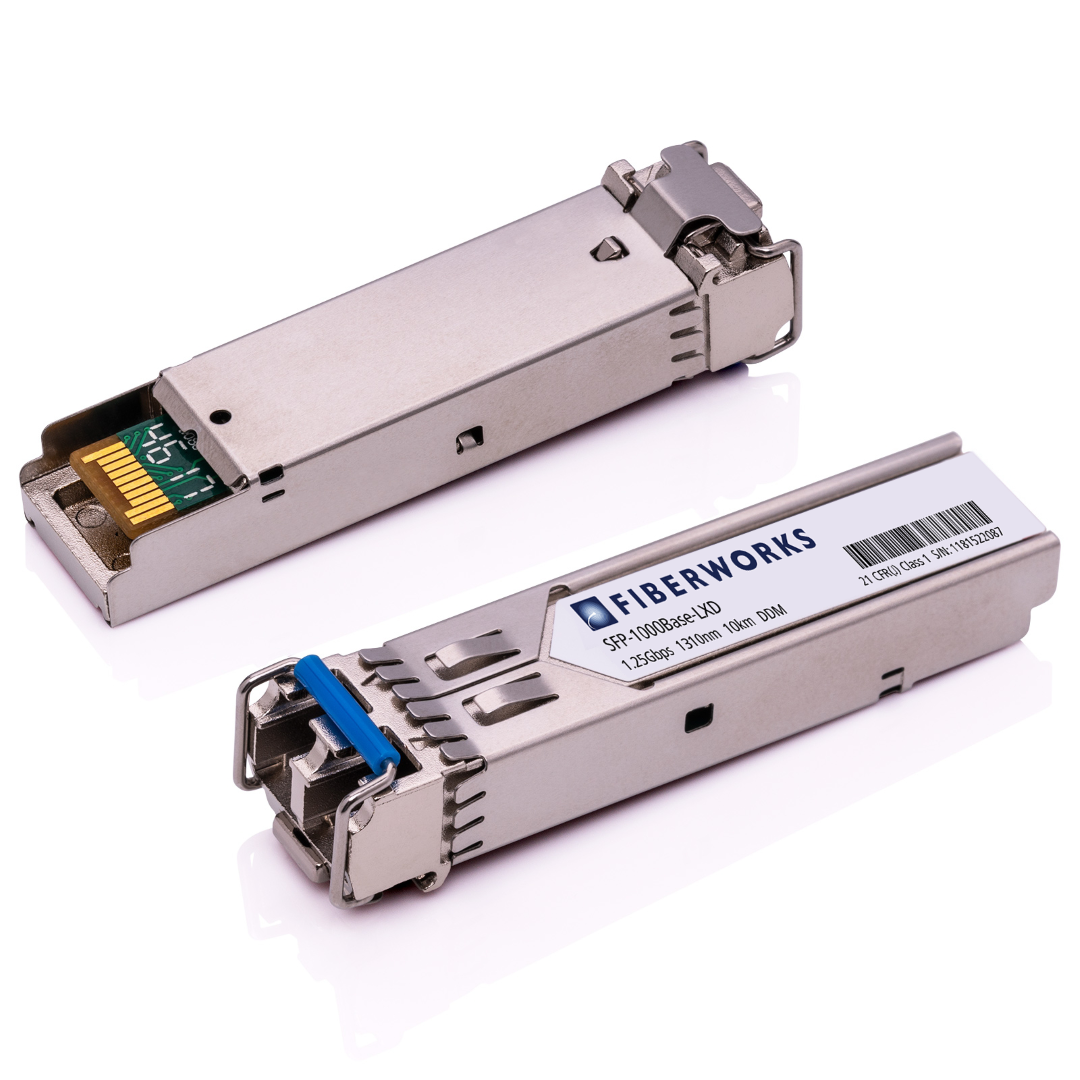

SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM

SFP, 1.25 Gbps GigE, DDM, 10km

1310nm, 10dB, SM/MM

Varenr: SFP-1000Base-LXD
Vis varianter som liste
Datablad / mer produktinformasjon



Finner du ikke kodingen du er på jakt etter?



Ta kontakt med vår produktsjef.

Det kan hende vi likevel kan levere den.

Du kan også lese mer om transceiverkompatibilitet i denne artikkelen.

BeskrivelseTeknisk infoTilbehør
Beskrivelse
APPLICATIONS
 • 1000Base-LX
 • 1G Fibre Channel

FEATURES
 • Compatible with Small-Form Pluggable (SFP) MSA
 • SFF-8472 Digital Diagnostic Function
 • Compatible with IEEE 802.3z
 • Compatible with ANSI specifications for Fibre Channel
 • Dual data-rate of 1.25 Gb/s and 1.6025 Gb/s operation
 • Operating wavelength at 1310 nm
 • 10 km transmission with 9/125 µm SM fiber
 • 550 m transmission with 62.5/125 µm MM fiber
 • Duplex LC connector type
 • Compatible with FCC 47 CFR Part, Class B  Electromagnetic Interference (EMI)
 • Compatible with IEC 61000-4-2 and GR-1089-CORE  Electrostatic Discharge (ESD)
 • +3.3V single power supply
Teknisk info

Produktinformasjon

Formfaktor SFP
Protokoll / bitrate Gigabit Ethernet
Mediatype
  • Singelmodus
  • Multimodus
Rekkevidde (dB) 10
Rekkevidde (km) 10
Bølgelengde (nm) 1310
DDM Ja
Konnektor LC Duplex


Tilbehør
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, 3Com
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, 3ComVarenrSFP-1000Base-LXD-3
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Alcatel
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, AlcatelVarenrSFP-1000Base-LXD-A
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Arista
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, AristaVarenrSFP-1000Base-LXD-AR
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Avaya
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, AvayaVarenrSFP-1000Base-LXD-Y+
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Brocade
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, BrocadeVarenrSFP-1000Base-LXD-B
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Cisco
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, CiscoVarenrSFP-1000Base-LXD-C
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Cisco Meraki
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, Cisco MerakiVarenrSFP-1000Base-LXD-CM
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Ericsson
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, EricssonVarenrSFP-1000Base-LXD-EN
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Extreme
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, ExtremeVarenrSFP-1000Base-LXD-E
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, F5 Networks
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, F5 NetworksVarenrSFP-1000Base-LXD-F5
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Fiberworks
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, FiberworksVarenrSFP-1000Base-LXD-U
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Fortinet
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, FortinetVarenrSFP-1000Base-LXD-FN
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Foundry
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, FoundryVarenrSFP-1000Base-LXD-F
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, H3C
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, H3CVarenrSFP-1000Base-LXD-H3
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Hirschmann
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, HirschmannVarenrSFP-1000Base-LXD-HI
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, HP
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, HPVarenrSFP-1000Base-LXD-H
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Huawei
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, HuaweiVarenrSFP-1000Base-LXD-W
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, IBM / Blade Network
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, IBM / Blade NetworkVarenrSFP-1000Base-LXD-I
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Intel
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, IntelVarenrSFP-1000Base-LXD-IN
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Juniper
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, JuniperVarenrSFP-1000Base-LXD-J
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Juniper EX
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, Juniper EXVarenrSFP-1000Base-LXD-X
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Moxa
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, MoxaVarenrSFP-1000Base-LXD-M
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Nokia Networks
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, Nokia NetworksVarenrSFP-1000Base-LXD-NN
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Packetfront
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, PacketfrontVarenrSFP-1000Base-LXD-P
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Transmode
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, TransmodeVarenrSFP-1000Base-LXD-TM
SFP, 1.25 Gbps GigE, DDM, 10km 1310nm, 10dB, SM/MM, Westermo
SFP, 1.25 Gbps GigE, DDM, 10km1310nm, 10dB, SM/MM, WestermoVarenrSFP-1000Base-LXD-WE
