Dette er en DWDM mux+demux for 4 kanaler i O-båndet. Den er spesielt tilpasset bruk sammen med 100G QSFP28 DWDM-transceivere. Den kan også brukes til å splitte opp de ulike kanalene i en 100GBASE-LR4/-ER4/-ZR4-transceiver
FEATURES
- Dense WDM in the O-band with 800 GHz spacing

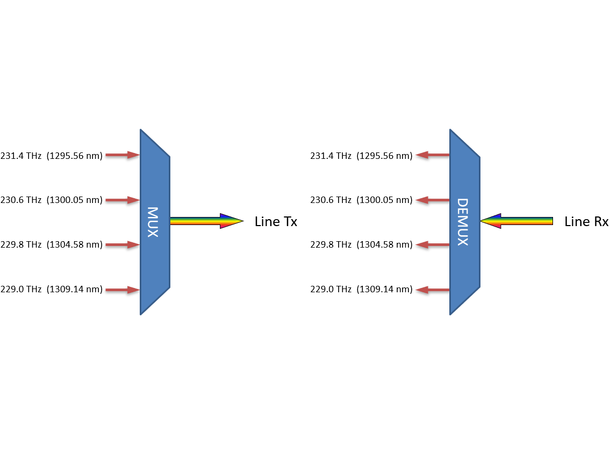

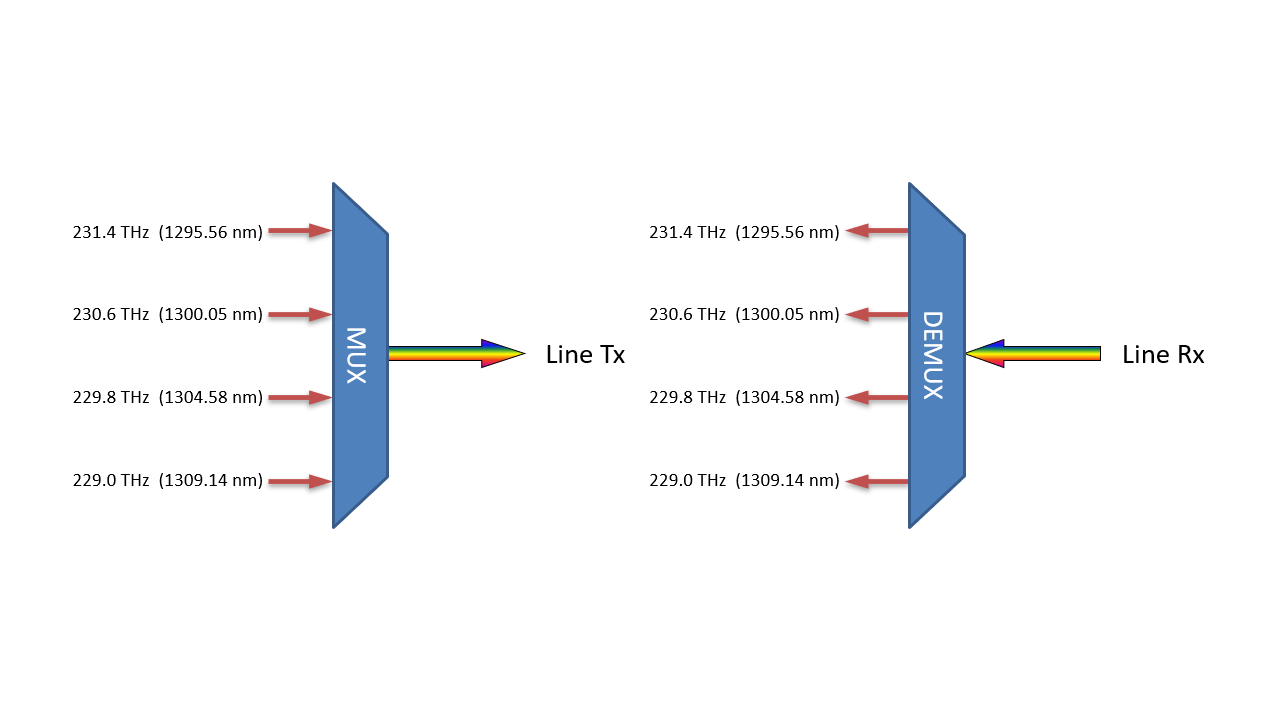

- 4 DWDM channels 231.4 - 229.0 THz (1295.56 - 1309.14 nm), corresponding to LAN-WDM channels L7-L10.
- All channels fit within any 1310 upgrade/extension port
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 25G, 100G etc.)
- Two modules fit in 1U in 19" rack
- LC/UPC connectors
