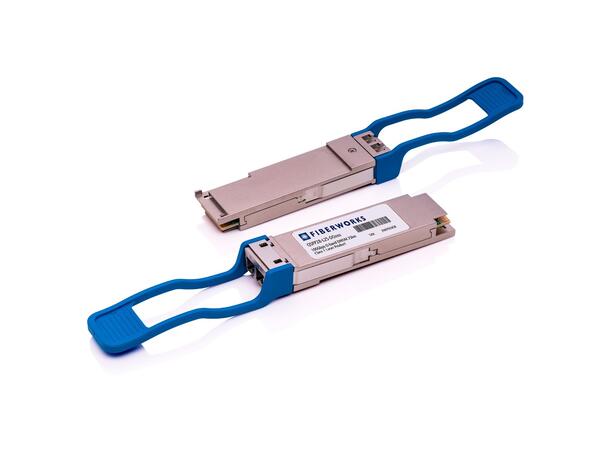

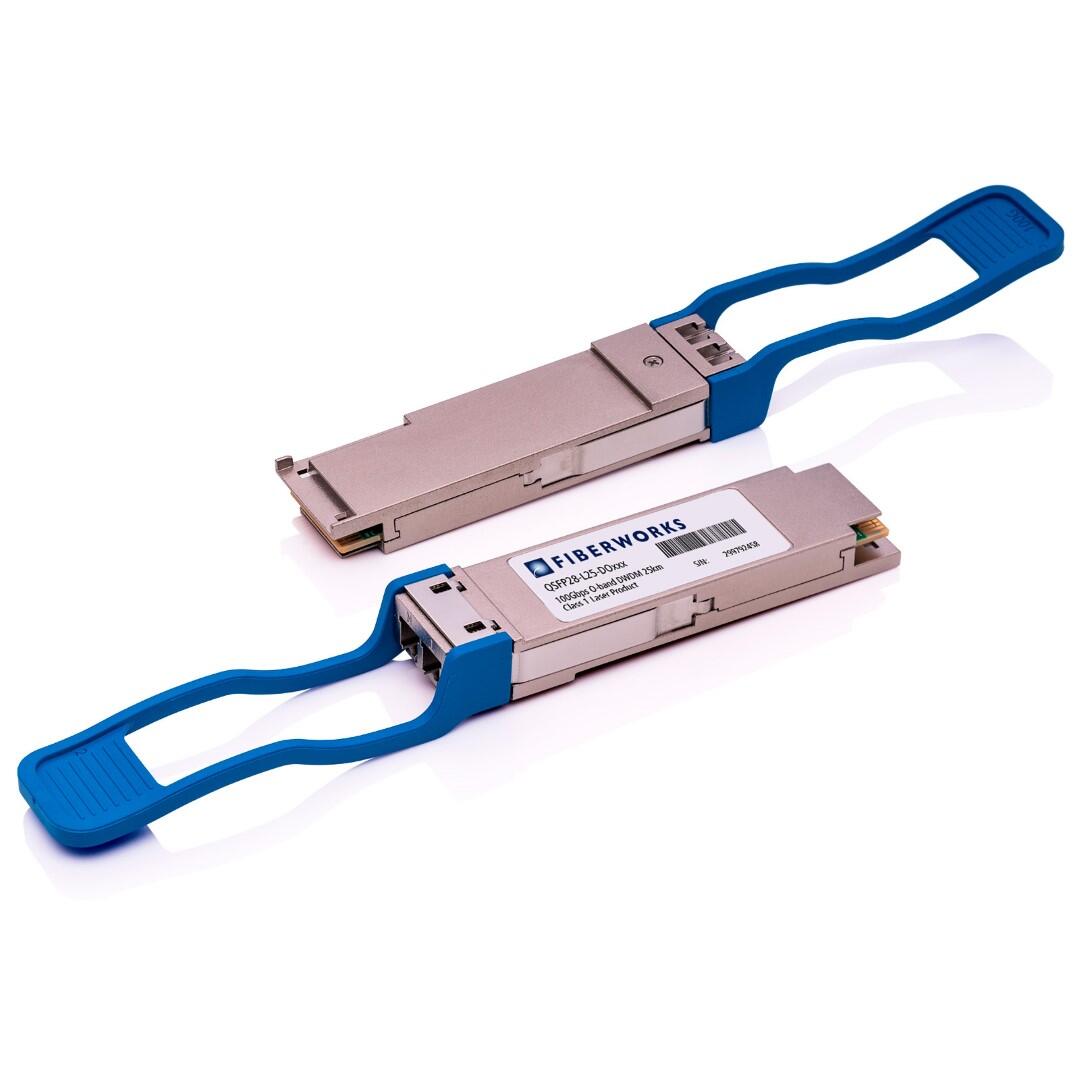

The QSFP28 O-Band DWDM transceiver is a 100 Gbit/s pluggable module for 100GBASE Ethernet bi-directional serial optical data communications. The transceiver operates with one PAM4 modulated signal and is available in DWDM wavelengths in O-band ranging from 1295.56nm to 1312.58nm.
The module is fully compliant with QSFP28 related MSA standards described in SFF-8665 and Digital Diagnostic functions are available through an I2C interface. QSFP28 Single Lambda complies with IEEE 802.3 and 100Gbase Ethernet.
APPLICATIONS
• 100G Ethernet
• Data Center Interconnect
FEATURES
• Single DWDM wavelength
• Up to 25km transmission on SMF
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP28 MSA with LC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 5.5 W
