F-D2MUX-16+1-2151MLU Fiberworks AS Fiberworks 16+1 ch. 800G DWDM Mux+Demux ITU ch. 21-51, 200 GHz, 1310 WB & Mon.
F-D2MUX-16+1-2151MLU Fiberworks AS Fiberworks 16+1 ch. 800G DWDM Mux+Demux ITU ch. 21-51, 200 GHz, 1310 WB & Mon. F-D2MUX-16+1-2151MLU Fiberworks AS Fiberworks 16+1 ch. 800G DWDM Mux+Demux ITU ch. 21-51, 200 GHz, 1310 WB & Mon. F-D2MUX-16+1-2151MLU Fiberworks AS Fiberworks 16+1 ch. 800G DWDM Mux+Demux ITU ch. 21-51, 200 GHz, 1310 WB & Mon. F-D2MUX-16+1-2151MLU Fiberworks AS Fiberworks 16+1 ch. 800G DWDM Mux+Demux ITU ch. 21-51, 200 GHz, 1310 WB & Mon.
Fiberworks 16+1 ch. 800G DWDM Mux+Demux ITU ch. 21-51, 200 GHz, 1310 WB & Mon. Fiberworks 16+1 ch. 800G DWDM Mux+Demux ITU ch. 21-51, 200 GHz, 1310 WB & Mon. Fiberworks 16+1 ch. 800G DWDM Mux+Demux ITU ch. 21-51, 200 GHz, 1310 WB & Mon. Fiberworks 16+1 ch. 800G DWDM Mux+Demux ITU ch. 21-51, 200 GHz, 1310 WB & Mon.

Fiberworks 16+1 ch. 800G DWDM Mux+Demux

ITU ch. 21-51, 200 GHz, 1310 WB & Mon.

Varenr: F-D2MUX-16+1-2151MLU
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse

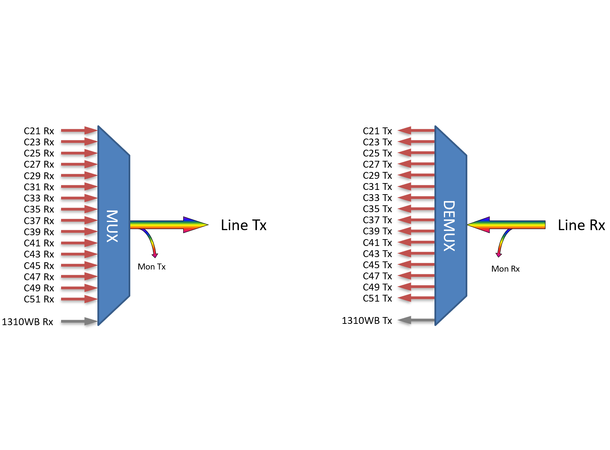

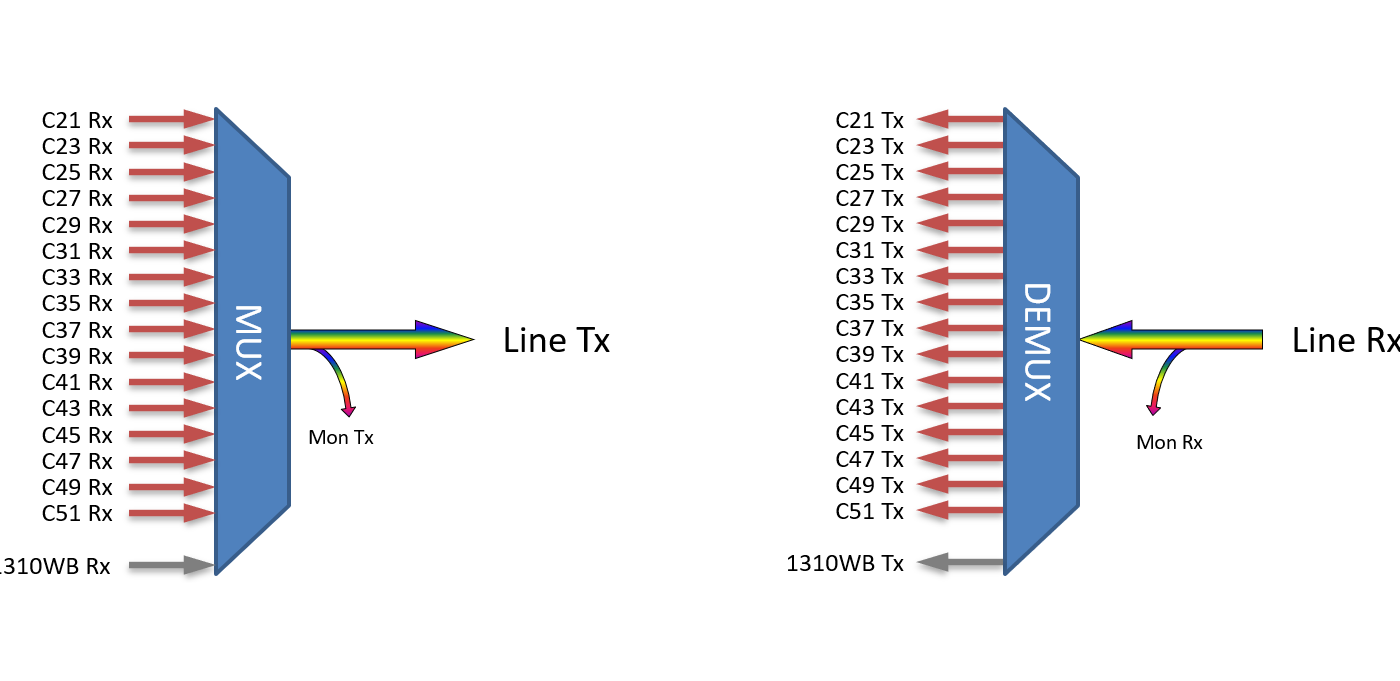

FEATURES
- Dense WDM in compliance with ITU-T G.694.1
- 16 DWDM channels 21-51 with 200 GHz spacing
- Super-wide filters can accomodate 800G 16QAM signals
- 1310 wideband port for low band CWDM, 40G/100G ER4 interface or O-band DWDM
- Two 1% monitor ports for easy troubleshooting
- Typical insertion loss for mux+demux: < 3.5 dB
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)

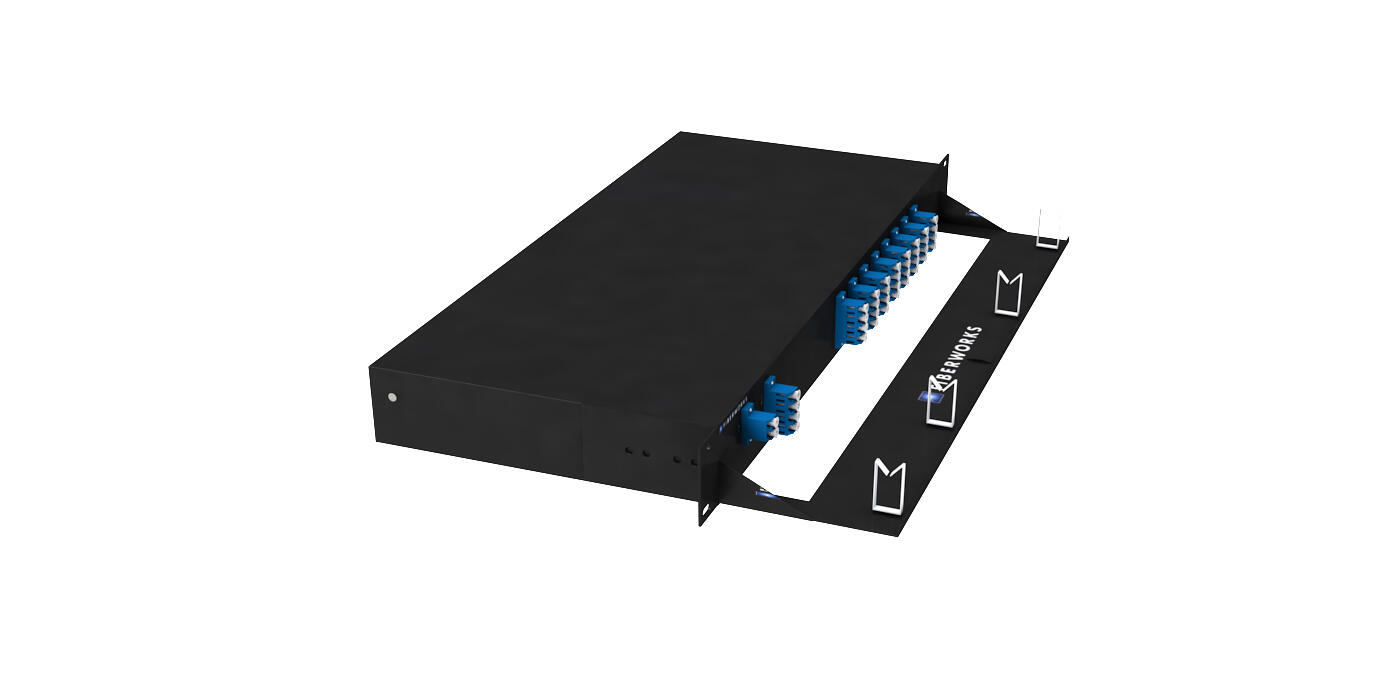

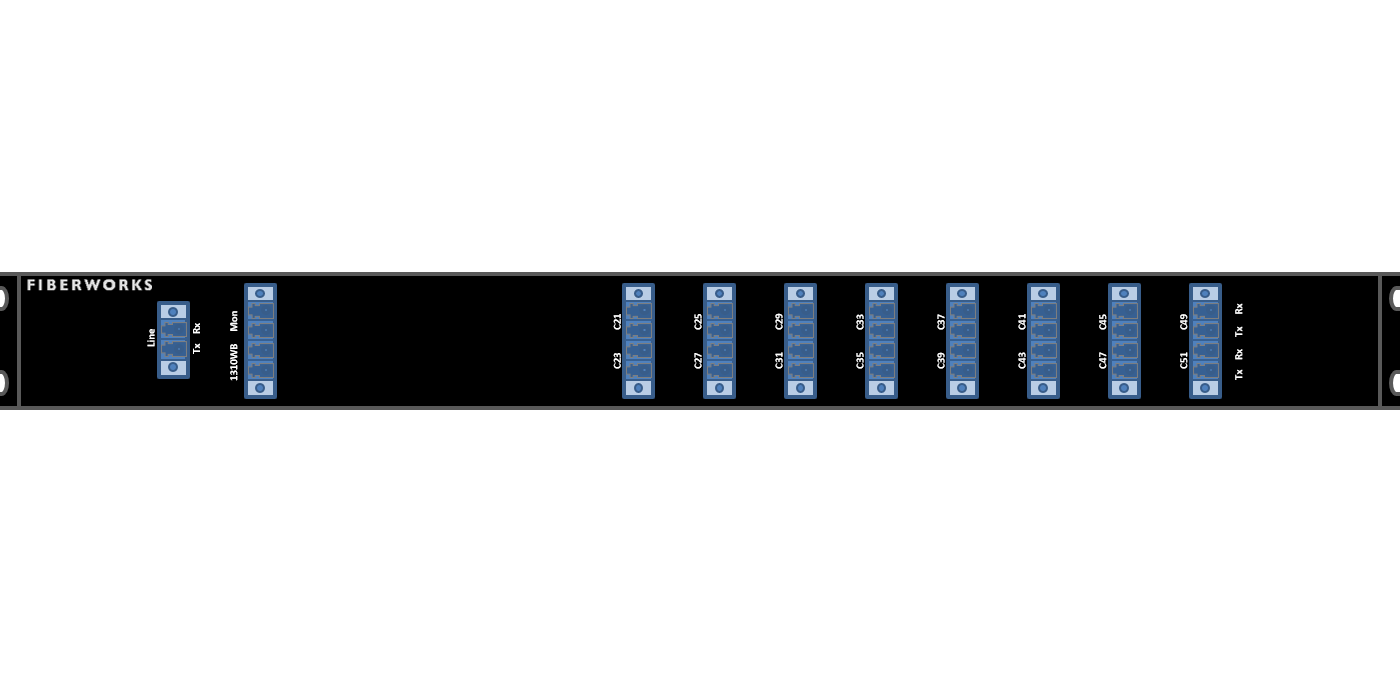

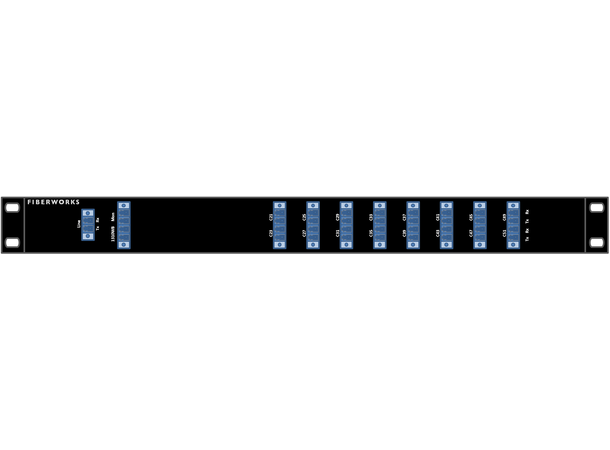

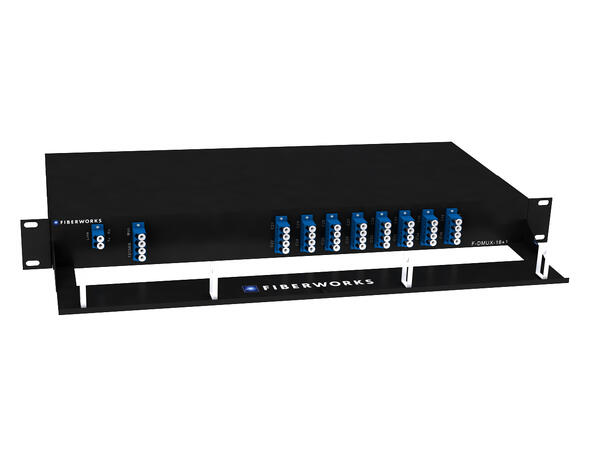

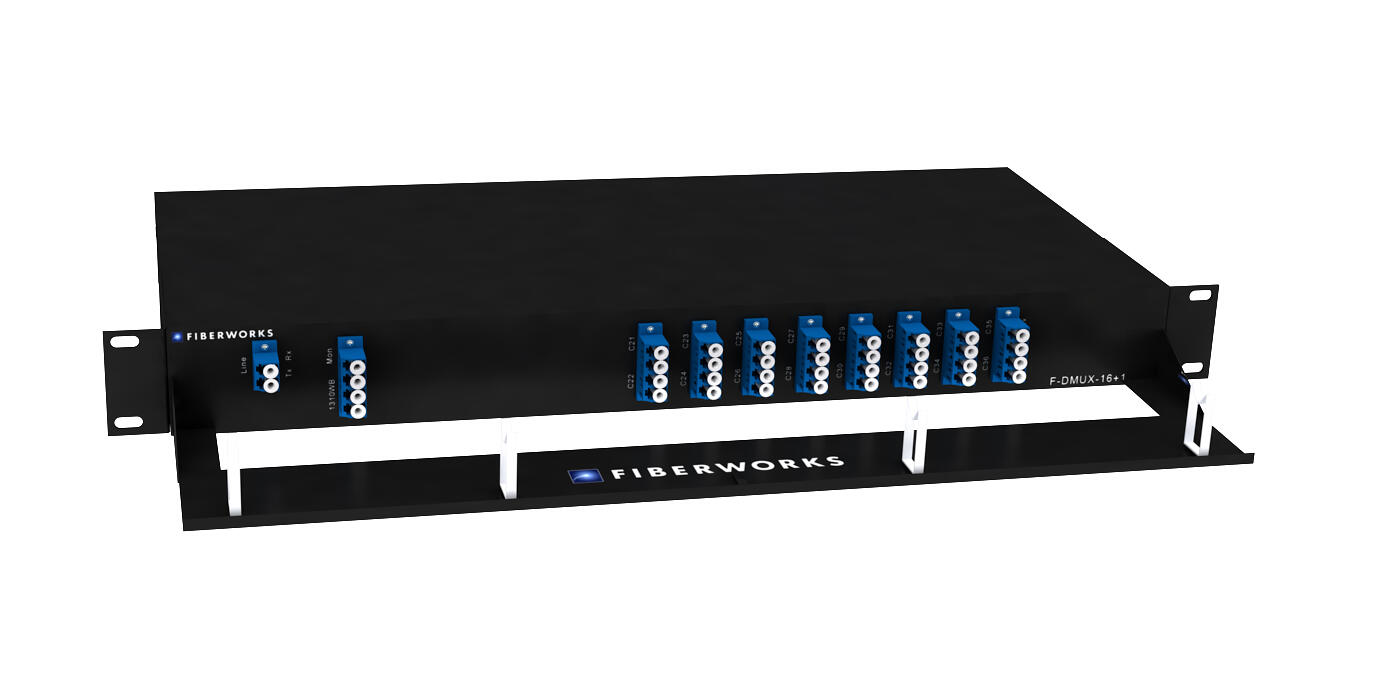

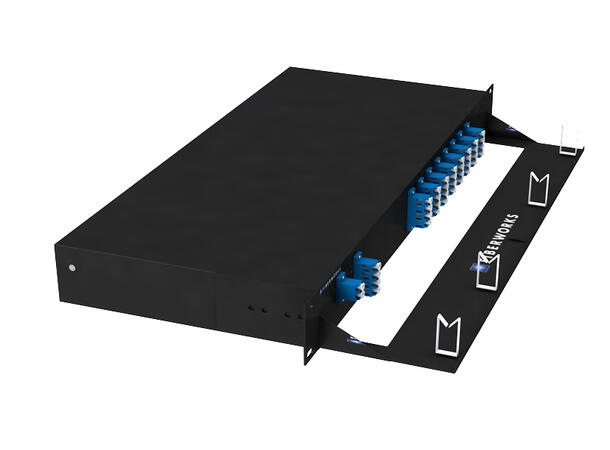

- 19" rack module, height 1U, with detachable fiber organizing bracket
- LC/UPC connectors
Teknisk info

Produktinformasjon

Formfaktor 19" 1U
Fibertype SM
Linjefiber Dobbel (fiberpar, mux+demux)
Antall kanaler 16
Add/drop-muligheter Nei, kun mux/demux
Konnektortype Rett (UPC, PC)
Andre egenskaper
  • Utvidelsesport 1310 nm
  • Monitorport
  • For 800G 16QAM
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090
