KEY FEATURES
- Complies with IEEE 802.3ae 10GBASE-SR/LR
- NBASE-T featuring adaptive rate operation
- 100 meters over Cat6A or above at 10Gbps
- Wall-mounting or work with MC-7/15 family media chassis
- Low power consumption
- Compact in size and easy to install
Flexible and Reliable Network Distance Extension Solution

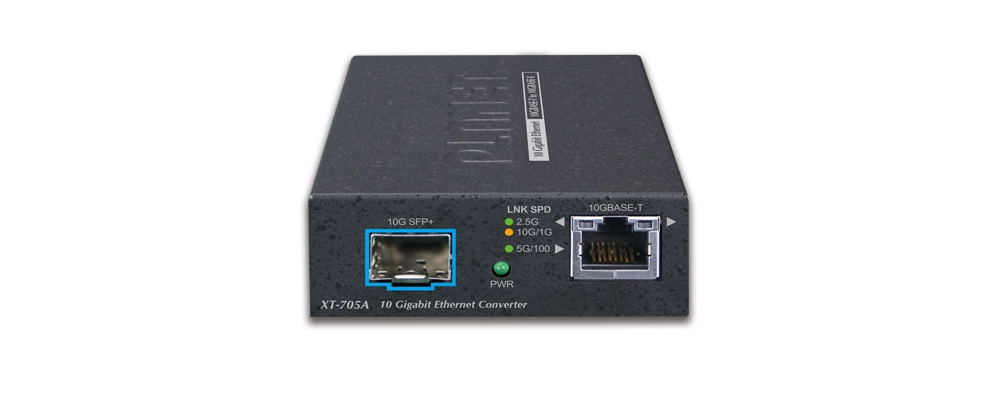

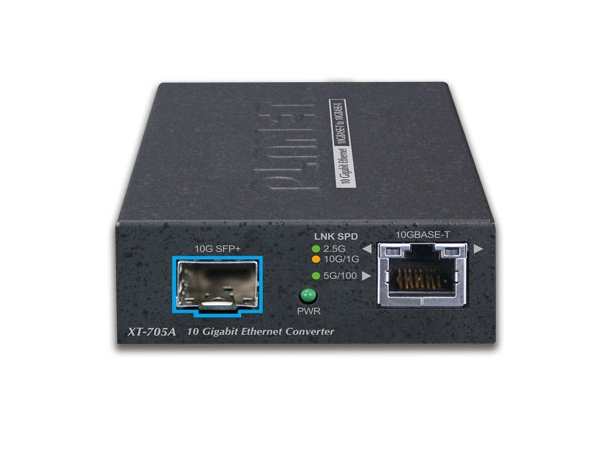

PLANET XT-705A Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels. The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometers (single-mode).They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.
High Performance 10Gbps Ethernet Capacity
The XT-705A offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric,16K jumbo frame feature and auto negotiation support in its 10 Gigabit port, the XT-705A can handle extremely large amounts of data transmission in a secure topology linking to data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.
Robust Protection
The XT-705A provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Low Power Consumption
The XT-705A adopting the advanced chip technology has the power-saving feature like a low power consumption of only 3.75 watts when in full operation.
Easy Chassis Installation
The XT-705A Media Converter can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700 and MC-1500 chassis series). The media chassis can assist in providing DC power to the XT-705A Media Converter to maintain the fiber-optic network at one centralized location. It can be DIN-rail or wall mounted for efficient use of cabinet space.
Layer 2 Features
• IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
• Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• 16K jumbo frame size support
• Automatic address learning and address aging
Case and Installation

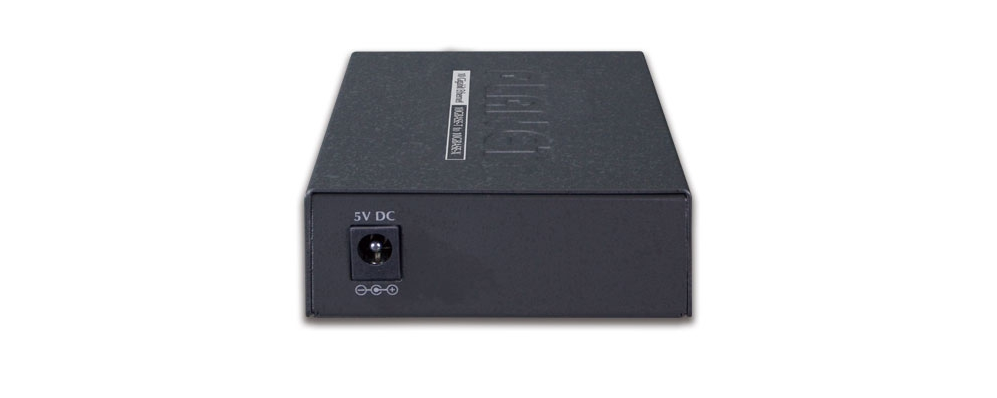

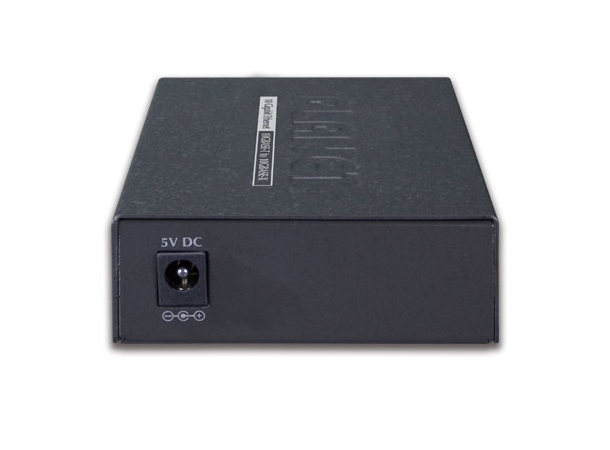

• External 5V DC, 2A power supply
• DIN-rail and wall-mount design
• Supports 6000 VDC Ethernet ESD protection
• 100 meters over Cat 6A / Cat7 at 10Gbps
• 0 to 50 degrees C operating temperature
• Co-works with PLANET’s 10”/19” Media Converter Chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)
• Plug and Play installation
