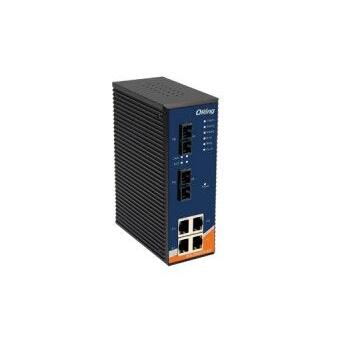

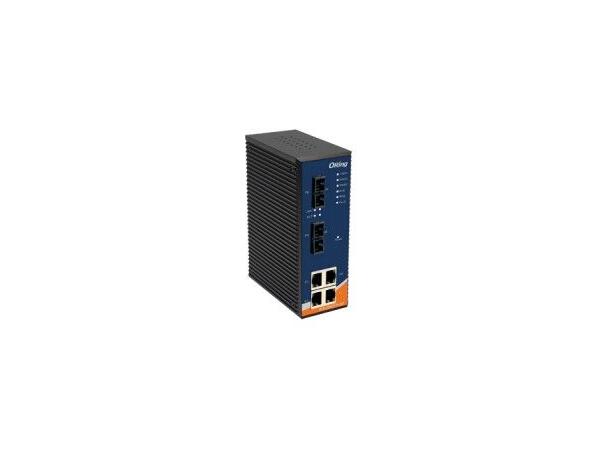

DESCRIPTIONIES-2042FX series are Lite-Managed Redundant Ring Ethernet switches with 6x10/100Base-T(X) ports or 4x10/100Base-T(X) and 2x100Base-FX ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain, and STP/RSTP (IEEE802.1w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. The IES-2042FX series can be managed conveniently by a powerful Windows utility — Open-Vision. In addition, the wide operating temperature range from -40 °C to 75 °C can satisfy most operating environments. Therefore, these switches are one of the most reliable choices for easy easy-to-manage Fiber Ethernet application.
FEATURES- World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 30ms over 250 units of connection)
- O-Chain support the multiple redundant ring technology
- Provided Fast recovery technology for Ethernet multi-redundancy
- Support STP/RSTP standard redundant protocol
- SNMP v1/v2c/v3 ,http server, telnet server support
- Supports LLDP protocol
- Web-based interface, telnet server, and Windows utility (Open-Vision) configuration
- Event notification through Syslog, Email, and SNMP trap
- Two 100Base-FX fiber ports support for long-distance connection
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
