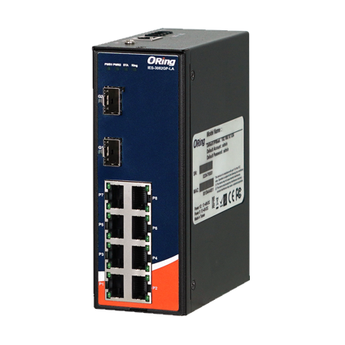

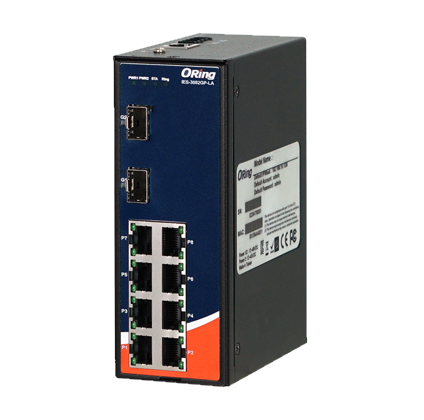

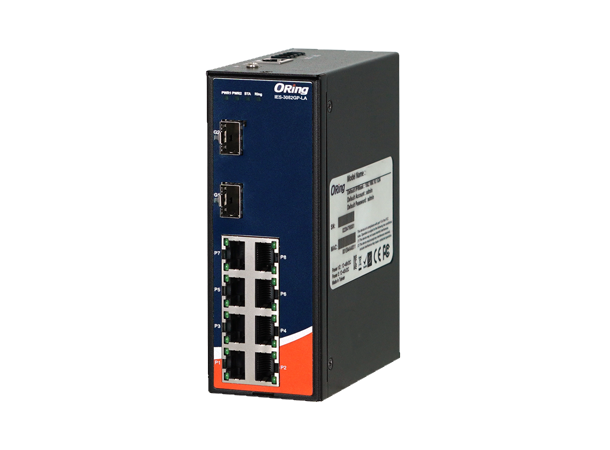

IES-3082GP-LA is a managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) ports and 2x100/1000Base-X, SFP socket.  With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain, MRP, and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.  O-Chain is the revolutionary network redundancy technology that provides the add-on network redundancy topology for any backbone network. O-Chain allows multiple redundant network rings of different redundancy protocols to join and function as a larger, more robust compound network topology.  O-Chain provides ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology.  In addition, the wide operating temperature range from -40 to 75 °C can satisfy most operating environments.  Therefore, the switch is one of the most reliable choices for highly managed Ethernet applications.

Features

• World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 30ms over 250 units of connection)
• O-Chain allows multiple redundant network rings
• Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
• MSTP/RSTP/STP (IEEE 802.1s/w/D) supports
• Supports IPV6 new Internet Protocol version
• Supports Auto Negotiation Speed
• Support Modbus TCP protocol
• Provided HTTPS/SSH protocol to enhance network security
• IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports ACL, TACACS+, and 802.1x User Authentication for security
• Port Trunking for easy of bandwidth management
• Event notification through Syslog server/client, Email and SNMP trap
• RMON for traffic monitoring
• Support LLDP protocol
• Rigid IP-30 housing design
• DIN-Rail mounting enabled
• Web-based, Telnet and Console (CLI) configuration
