46128

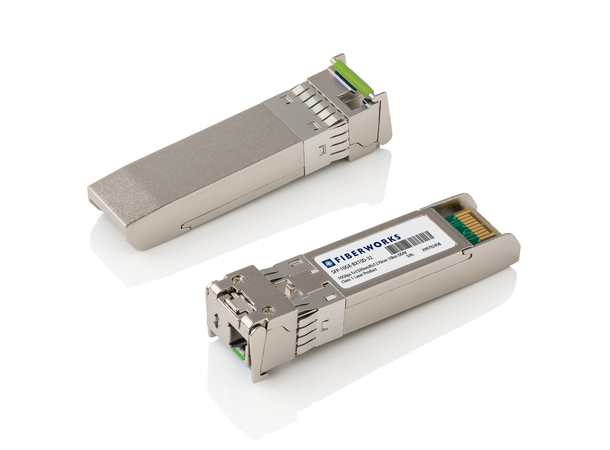

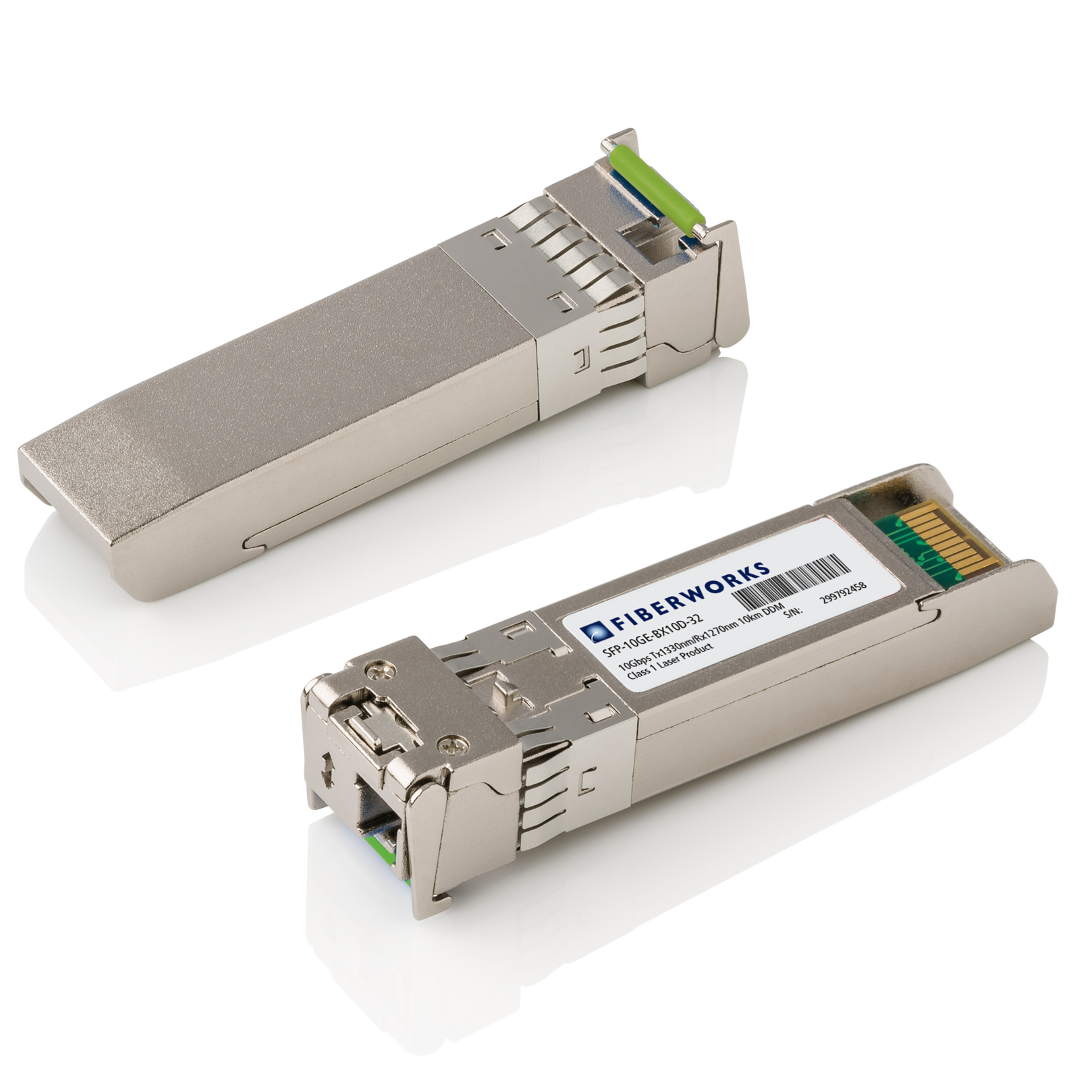

SFP+ BiDi, 10 GE, DDM, SM, 10km

Tx/Rx=1330/1270nm, 9dB, LC, HP Virt.Conn

Varenr: SFP-10GE-BX10D-32-HV
Datablad / mer produktinformasjon



Finner du ikke kodingen du er på jakt etter?



Ta kontakt med oss!

Det kan hende vi likevel kan levere den.



BeskrivelseTeknisk infoTilbehør
Beskrivelse
APPLICATIONS
• 10GBASE-BX at 10.3125 Gb/s
• 10GBASE-BX at 9.953 Gb/s

FEATURES
• Up to 10.7Gbps Data Links
• Single Mode LC Receptacle Bi-directional Transceiver
• Up to 10km transmission on SMF
• Power dissipation<1.0W
• 1330nm DFB laser and 1270nm PIN receiver
• 2-wire interface with integrated Digital Diagnostic monitoring
• EEPROM with Serial ID Functionality
• Compliant with FC_PI_4 REV 7.0
• Compliant with SFP+ MSA with duplex LC connector
• Single + 3.3V Power Supply and LVTTL Logic
• Operating case temperature:0~+70ºC

Teknisk info

Produktinformasjon

Formfaktor SFP+
Protokoll / bitrate
  • 10 Gigabit Ethernet
  • 10G Fibre Channel
  • SDH STM-64
  • OTN/G.709 OTU-2
  • CPRI/OBSAI 1.228 - 3.072 Gbps
  • CPRI/OBSAI 4.915 - 9.830 Gbps
Mediatype Singelfiber
Rekkevidde (dB) 9
Rekkevidde (km) 10
Bølgelengde (nm) 1270/1330
DDM Ja
Konnektor LC Simplex
