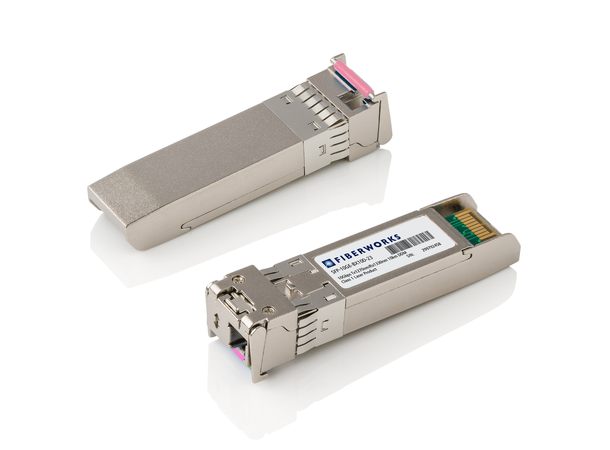

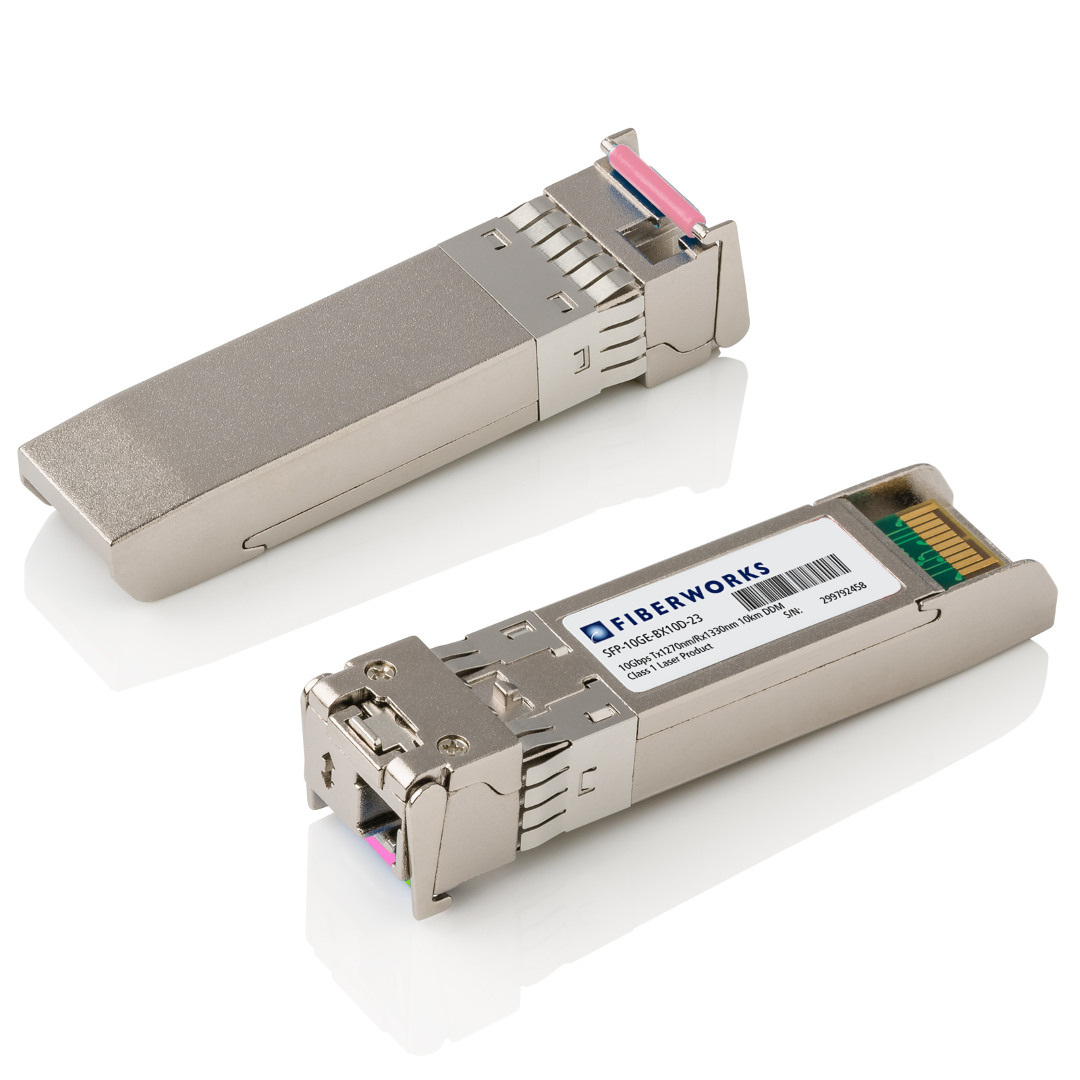

The SFP-10GE-BX transceiver family are small form factor pluggable modules for bi-directional serial optical data communications such as 10GBASE Ethernet over a single optical fiber. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. The modules meet the requirements of the IEEE 802.3 10GBASE-BX Ethernet standard and are suitable for interconnections in 10G Ethernet environments.
SFP-10GE-BX uses 1270 nm and 1330 nm wavelengths for bi-directional transmission on a single fiber
APPLICATIONS
• 10GBASE-BX at 10.3125 Gb/s
• 10GBASE-BX at 9.953 Gb/s
FEATURES
• Up to 11.1 Gbps Data Links
• Single Mode LC Receptacle Bi-directional Transceiver
• Up to 10km transmission on SMF
• Power dissipation<1.0W
• 1270nm DFB laser and 1330nm PIN receiver
• 2-wire interface with integrated Digital Diagnostic monitoring
• EEPROM with Serial ID Functionality
• Compliant with FC_PI_4 REV 7.0
• Compliant with SFP+ MSA with duplex LC connector
• Single + 3.3V Power Supply and LVTTL Logic
• Operating case temperature:0~+70ºC
