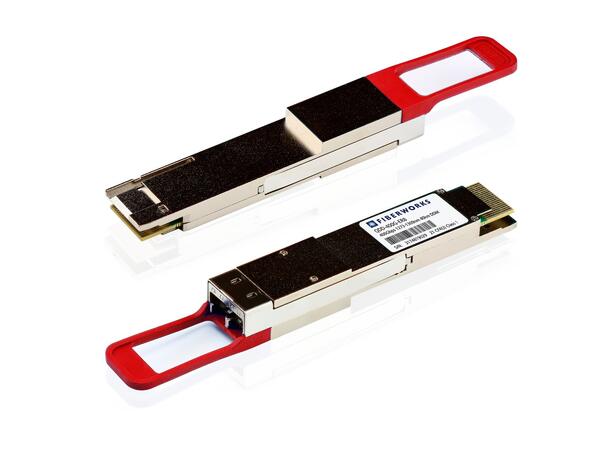

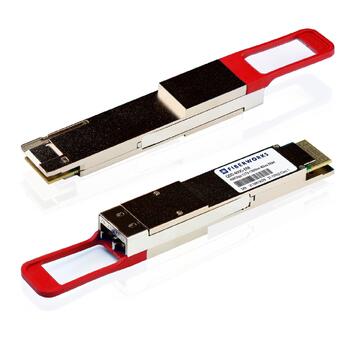

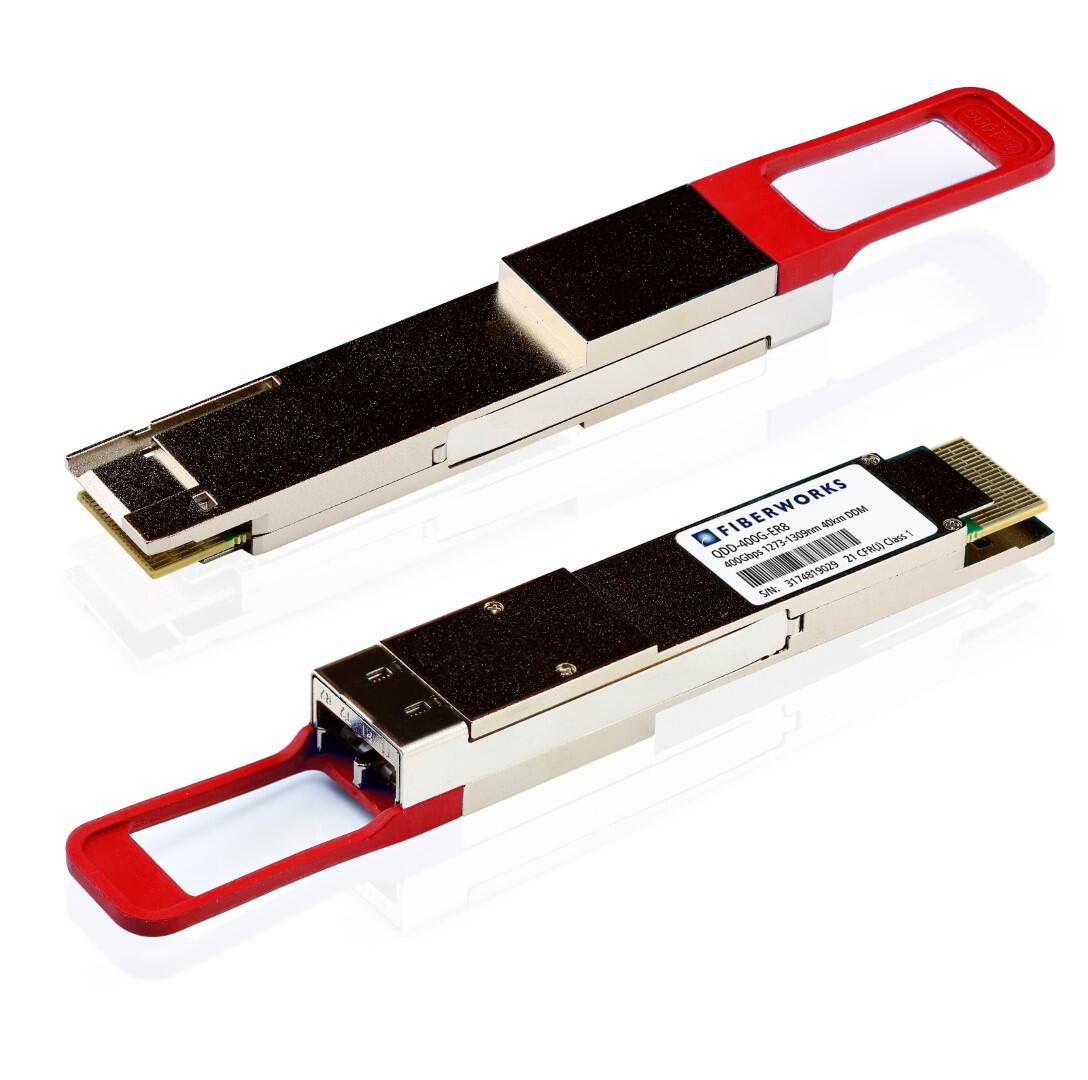

The QSFP-DD ER4L transceiver is a 400 Gbit/s pluggable module for optical data communications such as 400GBASE Ethernet. The transceiver operates with four parallel data streams of 106.25Gbps in order to provide an aggregated signaling rate of 425 Gbps. The four lanes are launched with center wavelengths of 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm and multiplexed onto singlemode fiber. On the receive side, the four lanes of optical data streams are de-multiplexed by the transceiver and retimed.
The module is fully compliant with QSFP-DD related MSA standards and Digital Diagnostic functions are available through an I2C interface.
APPLICATIONS
• 400G Ethernet
• Data Center and LAN
FEATURES • 4 wavelength lanes Mux/Demux design (1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm)
• Up to 106.25 Gbps Data rate per wavelength
• Up to 30km transmission on SMF (with FEC)
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP-DD MSA with LC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 12 W
