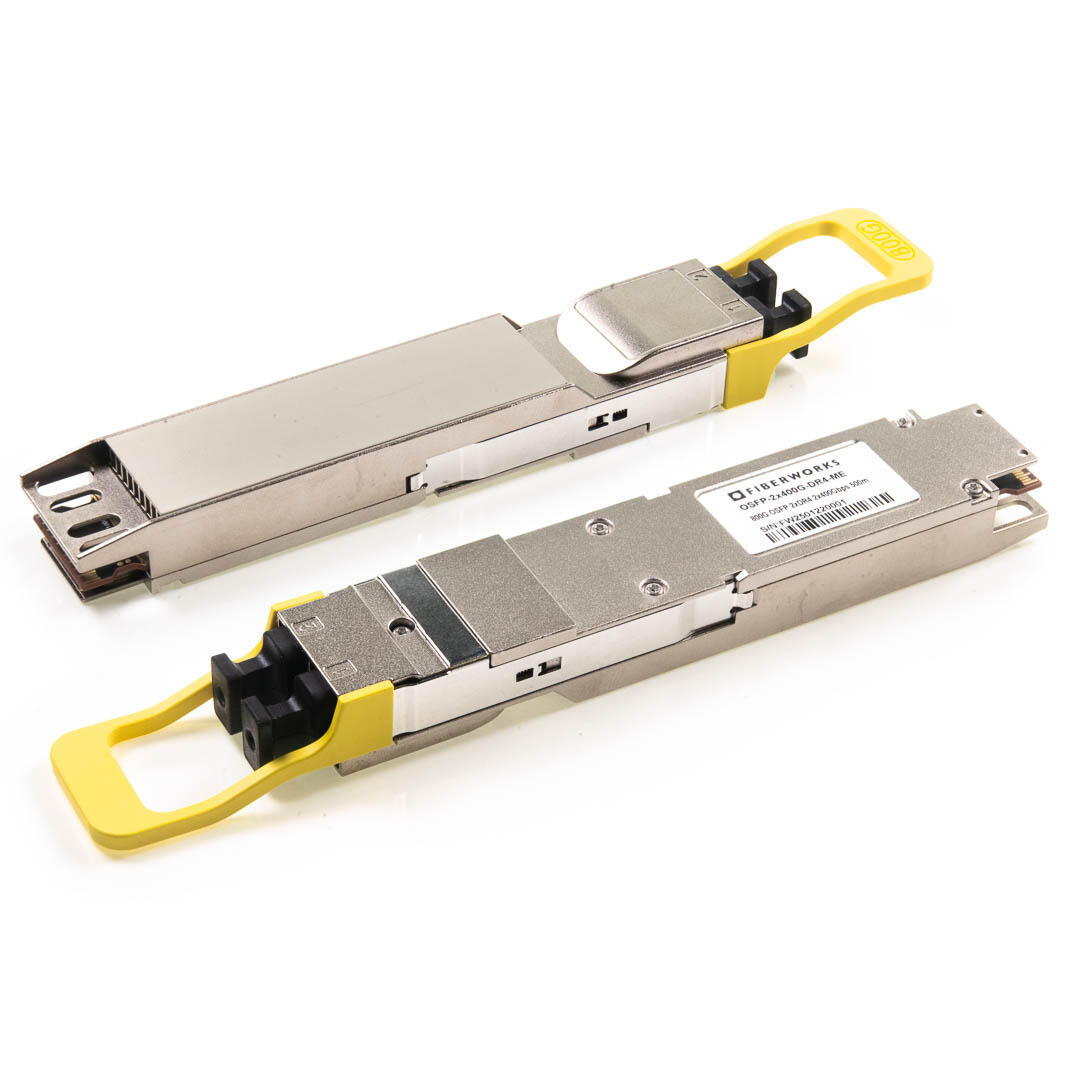

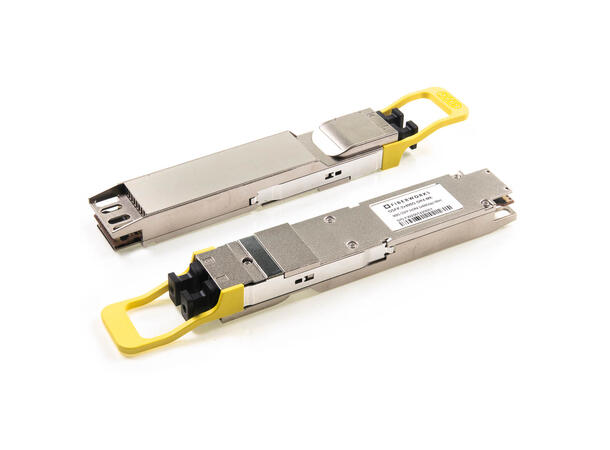

The OSFP DR8 transceiver is a 800 Gbit/ pluggable module for optical data communication. The transceiver operates with eight parallel data streams of 106.25 Gbps. The module has one MPO 16 APC male connector which with a break out cable can be used for breakout to two separate 400G DR4 transceivers or eight separate QSFP28-DR transceivers.
The module is fully compliant with all OSFP related MSA standards and Digital Diagnostic functions are available through an I2C interface. OSFP-C-800G-DR4 complies with IEEE 802.3 and 800Gbase-DR4.
APPLICATIONS
• 800G Ethernet
• 400G Ethernet
• 100G Ethernet
• NDR Infiniband
• Data Center and LAN
FEATURES
• Compliant with 800Gbase-DR8
• 8x Single Lambda 1310 nm
• Up to 106.25 Gbps Data rate per wavelength
• Up to 500m transmission on SMF
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with OSFP MSA
• Compliant with OIF-CMIS rev.5.0
• Dual MPO 16 APC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 16 W
