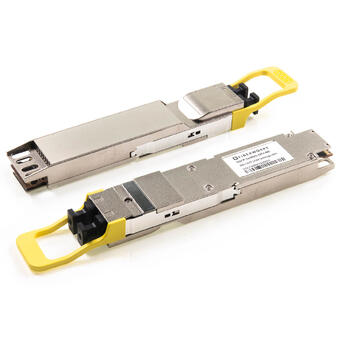

The OSFP DR8 LPO transceiver is a 800 Gbit/ pluggable module for optical data communication. The transceiver operates with eight parallel data streams of 106.25 Gbps. The module has one MPO 16 APC male connector which with a break out cable can be used for breakout to two separate 400G DR4 LPO transceivers.
The module is fully compliant with all OSFP related MSA standards and Digital Diagnostic functions are available through an I2C interface. OSFP-C-800G-DR8-LPO complies with OIF CEI-112G-LINEAR-PAM4 and 100G DR LPO MSA.
APPLICATIONS
• 800G Ethernet
• 400G Ethernet
FEATURES
• 8x Single Lambda 1310 nm
• Up to 106.25 Gbps Data rate per wavelength
• Up to 500m transmission on SMF
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with OSFP MSA
• Compliant with OIF-CMIS rev.5.0
• Dual MPO 16 APC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 8.5 W
