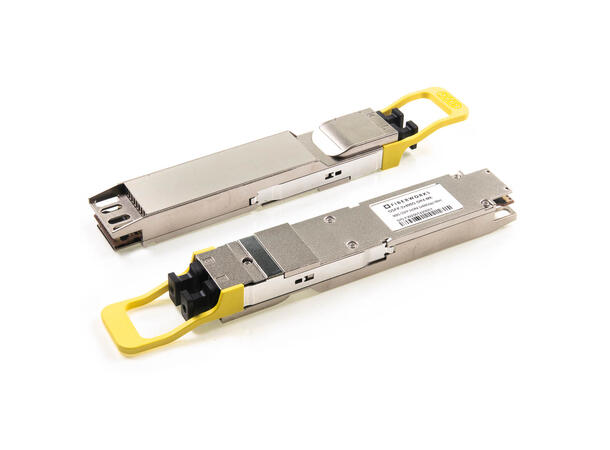

The OSFP 2xDR4 LPO transceiver is a 800 Gbit/ pluggable module for optical data communications. The transceiver has two 400Gbase-DR4 LPO interfaces on the optical side, each of which operates with four parallel data streams of 106.25 Gbps. The module has two MPO 12 (Base 8) APC male connectors. Each of these are interoperable with 400GBASE-DR4 LPO transceivers. Hence the OSFP 2xDR4 LPO can easily be used for breakout to two separate 400G DR4 LPO transceivers.
The module is fully compliant with all OSFP related MSA standards and Digital Diagnostic functions are available through an I2C interface. OSFP-C-2x400G-DR4LPO complies with OIF CEI-112G-LINEAR-PAM4 and 100G DR LPO MSA.
APPLICATIONS
• 800G Ethernet
• 2 x 400G Ethernet
• Data Center and LAN
FEATURES
• 8x Single Lambda 1310 nm
• Up to 106.25 Gbps Data rate per wavelength
• Up to 500m transmission on SMF
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with OSFP MSA
• Compliant with OIF-CMIS rev.5.0
• Dual MPO 8/12 APC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 8.5 W
