Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength [nm]	1260 - 1650
Fiber Type	G.657.A1
Insertion Loss [dB]	3.8	7.1	10.3	13.5	16.5	20.5
Loss Uniformity [dB]	0.4	0.6	0.8	1.2	1.5	2.0
Polarization Dependent Loss [dB]	0.2	0.2	0.2	0.3	0.3	0.4
Return Loss [dB]	50	50	50	50	50	50
Directivity [dB]	55	55	55	55	55	55
Wavelength Dependent Loss [dB]	0.5	0.5	0.5	0.5	1.0	1.0
Temperature Stability (-40~85°C) [dB]	0.5	0.5	0.5	0.5	1.0	0.5
Operating Temperature [°C]	-40 to +85
Storage Temperature [°C]	-40 to +85
Device Dimensions [mm] med 900µm fiber	4×7x60	4x7x60	4x7x60	4x12x60	6x20x80	8x40x100
Device Dimension [mm] med 250µm fiber	4x4x40	4x4x40	4x4x40	4x7x50	4x7x50	4x12x60

Antall artikler funnet:

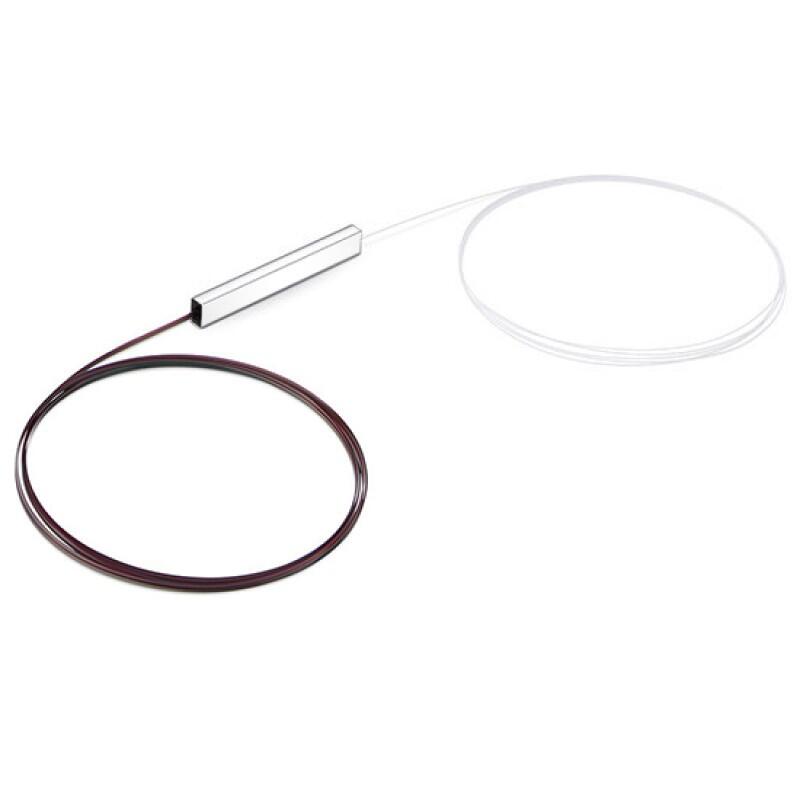

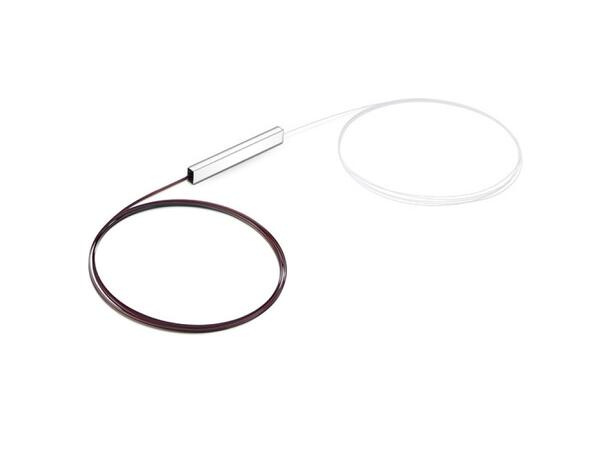

PLC splitter1:N for skjøting

250µm 1,5 m fiberhaler

Varenr: F-SPLIT-PLC-O25

Beskrivelse

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength [nm]	1260 - 1650
Fiber Type	G.657.A1
Insertion Loss [dB]	3.8	7.1	10.3	13.5	16.5	20.5
Loss Uniformity [dB]	0.4	0.6	0.8	1.2	1.5	2.0
Polarization Dependent Loss [dB]	0.2	0.2	0.2	0.3	0.3	0.4
Return Loss [dB]	50	50	50	50	50	50
Directivity [dB]	55	55	55	55	55	55
Wavelength Dependent Loss [dB]	0.5	0.5	0.5	0.5	1.0	1.0
Temperature Stability (-40~85°C) [dB]	0.5	0.5	0.5	0.5	1.0	0.5
Operating Temperature [°C]	-40 to +85
Storage Temperature [°C]	-40 to +85
Device Dimensions [mm] med 900µm fiber	4×7x60	4x7x60	4x7x60	4x12x60	6x20x80	8x40x100
Device Dimension [mm] med 250µm fiber	4x4x40	4x4x40	4x4x40	4x7x50	4x7x50	4x12x60
