P-OM3-M3A-M1MaM1F-xx Fiberworks AS Patch MM MPO/PC12 Han-Hun, pol. A xx m 50/OM3 BIF, ø3mm Aqua, Elite
Patch MM MPO/PC12 Han-Hun, pol. A xx m 50/OM3 BIF, ø3mm Aqua, Elite

Patch MM MPO/PC12 Han-Hun, pol. A xx m

50/OM3 BIF, ø3mm Aqua, Elite

Varenr: P-OM3-M3A-M1MaM1F-xx
Vis varianter som liste
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehør
Beskrivelse

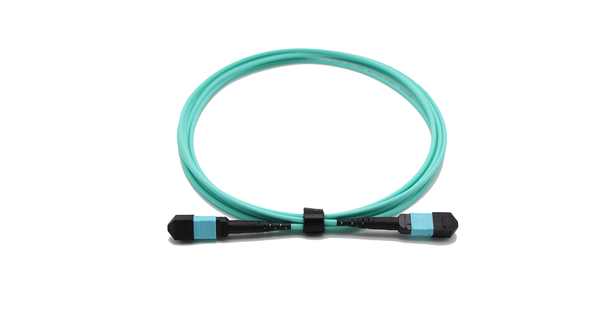

Patch MM MPO12 Han - MPO12 Hun (Base-12) Elite Low Loss, 50/125 OM3, Polaritet-A
 Fiberworks MPO Elite Low Loss snorer sørger for effektiv og enkel installasjon av back-bone kabling i datasentre og andre høyfibermiljøer. MPO snorer reduserer nettverksinstallasjon- og/eller rekonfigureringstid og kostnader.


Karakteristika
  • Møter IEC, EIA/TIA og EN50173 standarder
  • Elite Low Loss
  • Konnektor møter IEC standarder
    •  MPO: IEC 61754-7
  • Kabeldimensjoner: ø3mm
  • Konnektorens endeflate geometri møter eller overgår IEC og Telcordia standarder
  • Snorene leveres med BIF (Bøyebestandig) fiber
  • Lavt innskuddstap (IL), og returtap (RL)
    • IL typ./maks: 0,20/0,35dB
    • RL typ./min.: -28/-25dB
  • 100% Interferometer, IL, RL og visuell test
  • Test rapport medfølger hver snor




Teknisk info

Produktinformasjon

Bruksområde Mellom Fiberworks MPO-modul og U-series/HDG
Fiberantall G12
Fibertype Multimodus OM3
Polaritet A
Kjønn Hann - hunn
Konnektortype MPO Base-12 (MPO12)
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8544.70.0000
