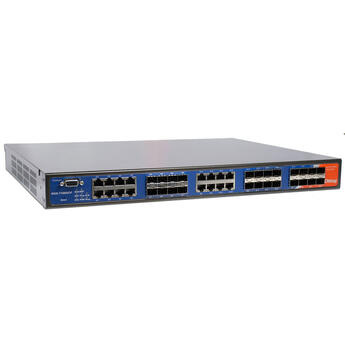

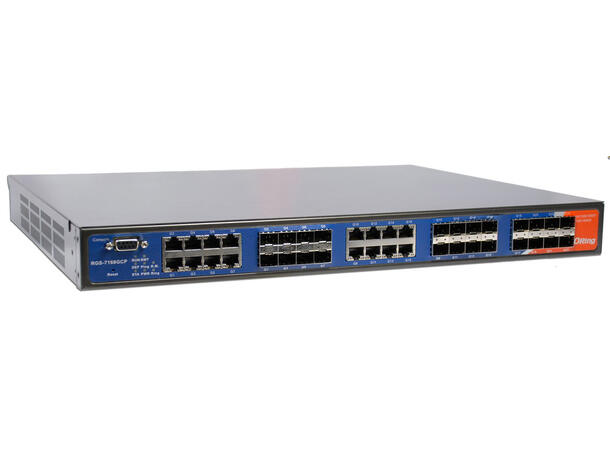

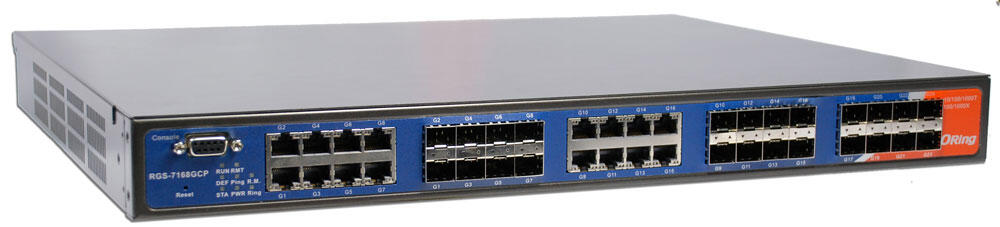

ORing GigE 16x SFP/RJ45 + 8x SFP, DC

Rackmount Switch, Dual DC Power

Varenummer: ORING-RGS-9168GCP-E
Alt. varenr: RGS-9168GCP-E-EU
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehør
Beskrivelse
OVERVIEW
RGS-9168GCP series are Gigabit managed redundant ring Ethernet switch with 16xGigabit combo ports and 8x100/1000Base-X, SFP socket.

These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And RGS-9168GCP series support wide operating temperature from -40 to 75 degrees C.

RGS-9168GCP series can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.  Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.



FEATURES

  • Support O-Ring(recovery time < 30ms) andMSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings
  • Supportstandard IEC 62439-2 *MRP (Media Redundancy Protocol) function
  • Support IPV6 new internet protocol version
  • Support Modbus TCP protocol
  • Support IEEE 802.3az Energy-Efficient Ethernettechnology
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client and NTP server
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DOS/DDOS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support ACL and 802.1x User Authentication for security
  • Support 10K Bytes Jumbo Frame
  • SFP socket support DDM function
  • Multiple notification for warning of unexpected event
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Support LLDP Protocol
  • 19 inches rack mountable design
