DESCRIPTIONThe Fiberworks taps are completely passive network taps mounted in a 1U 19" rackmount module. They provide monitor ports with complete replicas of the network traffic irrespective of protocol and bitrate.

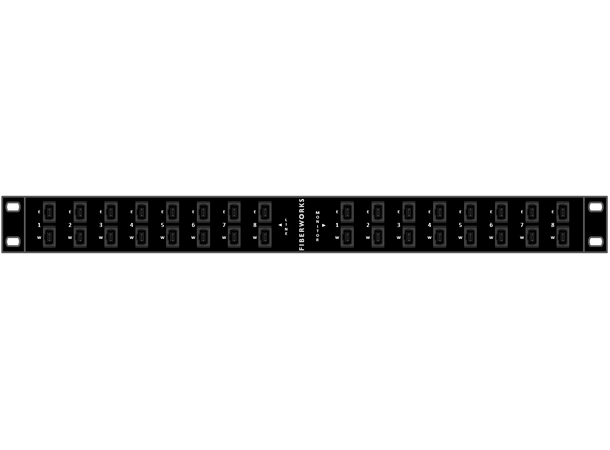

All line ports are on the left side of the module, and the monitor ports on the right side. This ensures tidy fiber management with a clear separation between the live traffic and the TAP ports.
FEATURES - 8 MPO Base-8 taps in module
- Suitable for 100GBase-PSM4 / 400GBase-PSM4
- Dual window (1310 / 1550 nm)
- 50% monitoring ports
- Insertion loss 3.5 dB on TAPs and traffic ports
- MPO Base-8 male connectors
- Protocol transparent (support 10G, 100G, 400G etc.)
- 1U 19" rackmount module
