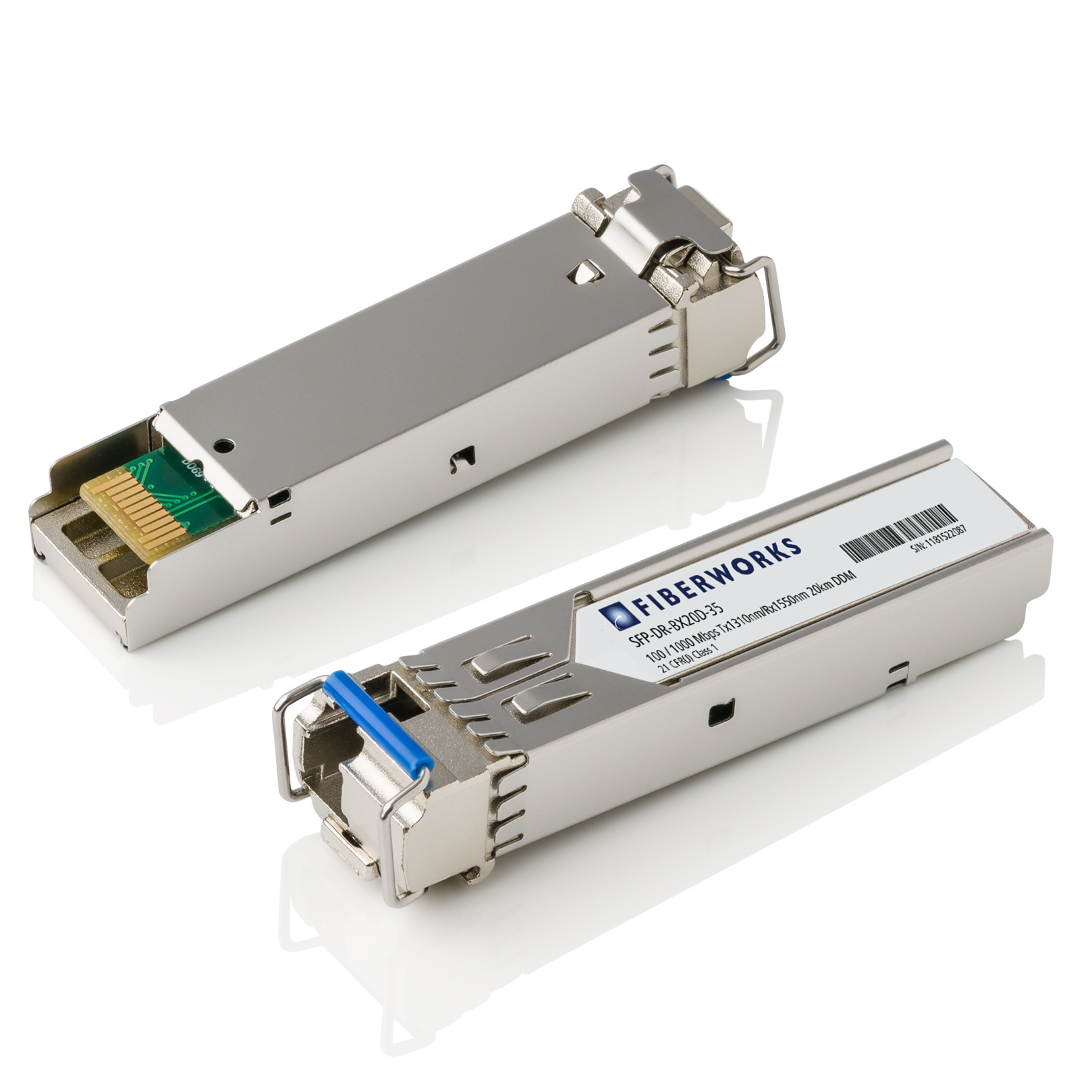

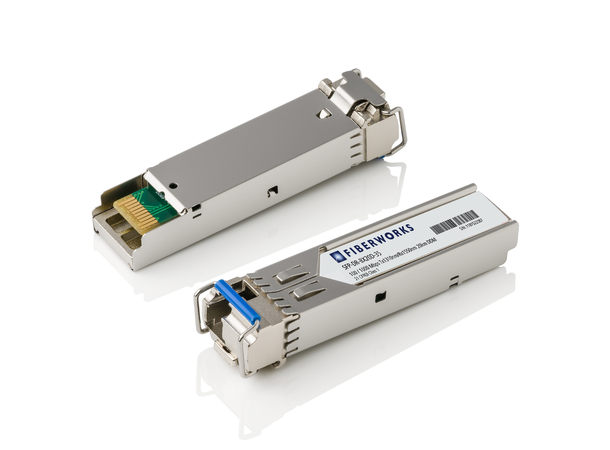

The SFP-DR-BX transceivers are fully compliant with the latest industrial SFP Multi-Source Agreement (MSA), Gigabit Ethernet 1000Base-BX and Fast Ethernet 100Base-BX. They support data rates 125 Mb/s up and 1.25Gb/s and can be used in Ethernet and FTTx applications. The transceivers operate bi-directionally on single fiber at wavelengths of 1310nm/1550nm.
The modules are hot pluggable and work on SM fiber.
APPLICATIONS
• Single fiber operations
• Fast Ethernet
• Gigabit Ethernet
• FTTx
FEATURES
• Up to 20 km transmission on SM fiber
• 1310nm FP transmitter
• 1550nm PIN receiver
• Compliant to SFP MSA and SFF-8472
• Digital Diagnostics Monitoring
• Hot-Pluggable SFP footprint
• Optical LC interface for bi-directional operation
• Operating temperature 0°C to 70°C
• RoHS compliance
