Denne modulen har MPO-konnektor uten styrepinner (female), den trenger derfor kabler med styrepinner (male).
DESCRIPTION

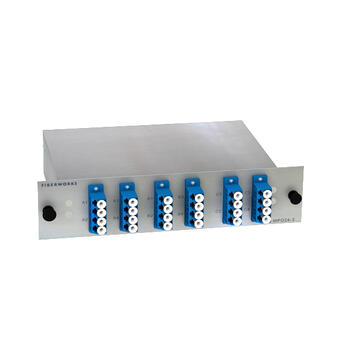

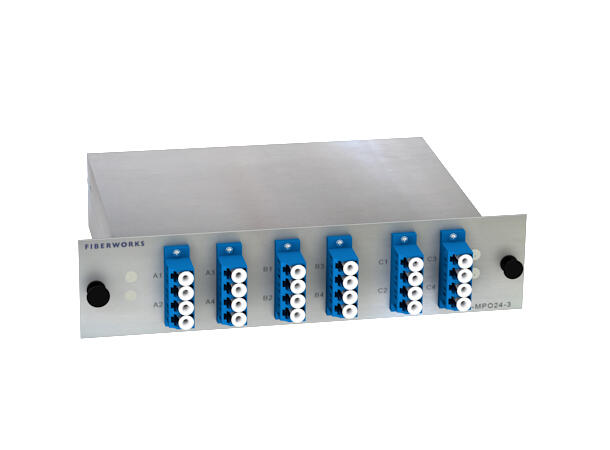

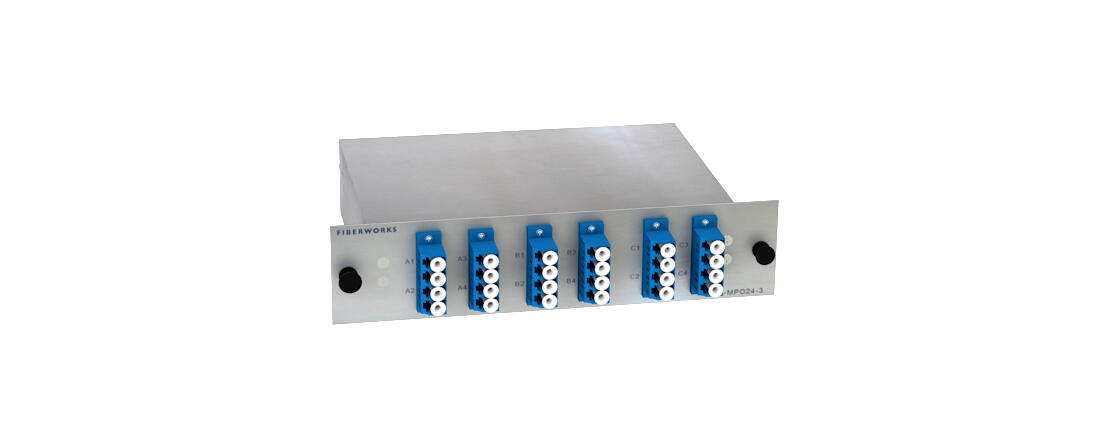

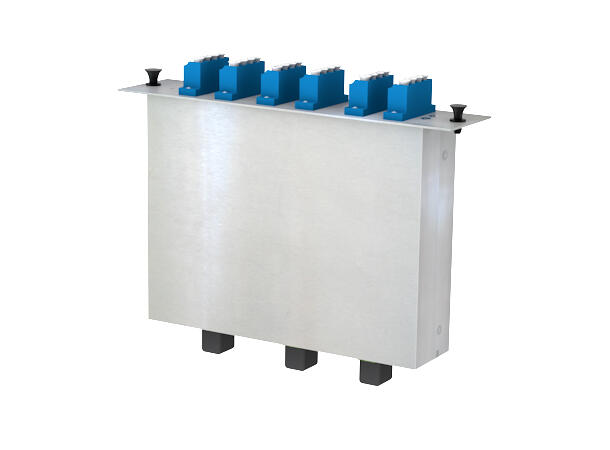

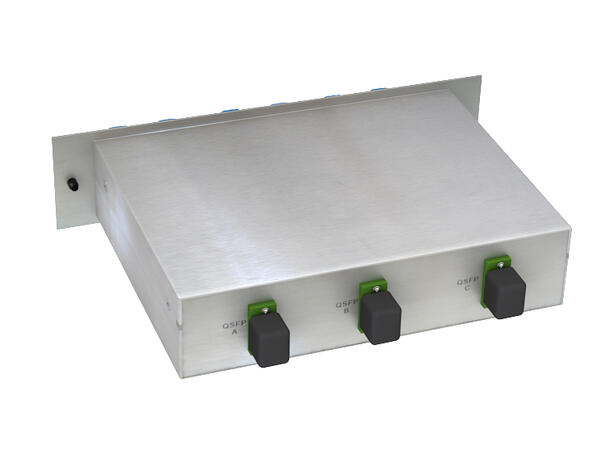

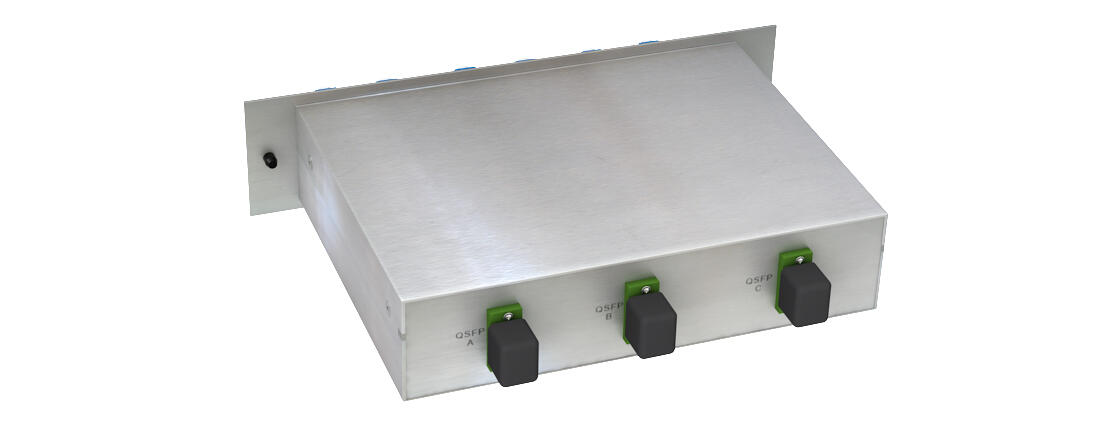

This Fiberworks MTP/MPO fan-out is a multi-fiber patch cord mounted in a standard Fiberworks module. Three MPO connectors in the rear is connected to 24 LC/UPC connectors on the front (i.e. 8 fibers per MPO connector). The layout is made for separating the four individual channels of singlemode QSFP PSM4 transceivers:
-
40G QSFP+ PSM4 to 4x 10GBASE-LR
- 100G QSFP28
PSM4 to 4x 25GBASE-LR
Two of these modules fit in a 1U 19" chassis . The same chassis can also accommodate the Fiberworks CWDM/DWDM mux modules.
FEATURES
- High density / compact size

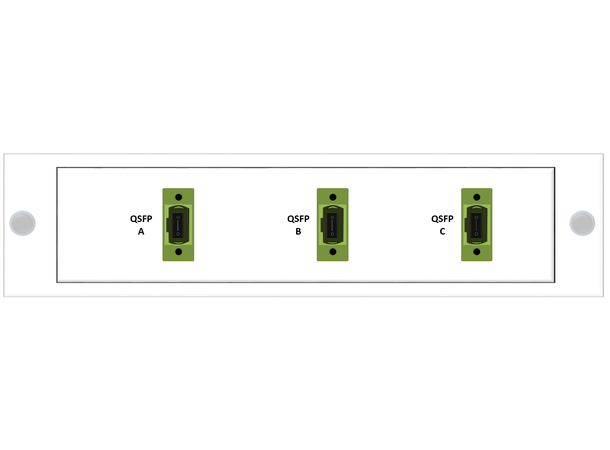

- Three 8-core MPO/APC female connectors on rear side (compatible with 12-fiber MPO cables)

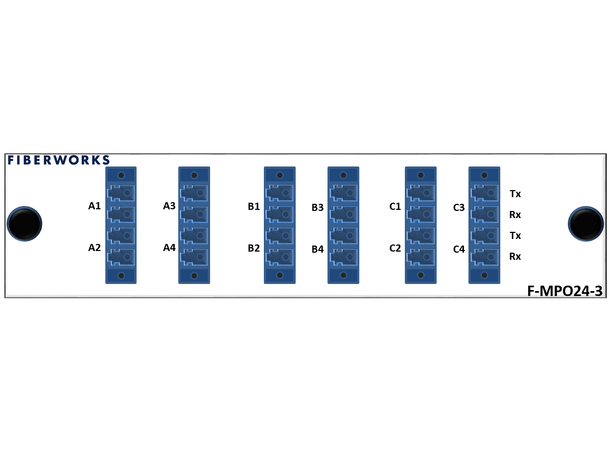

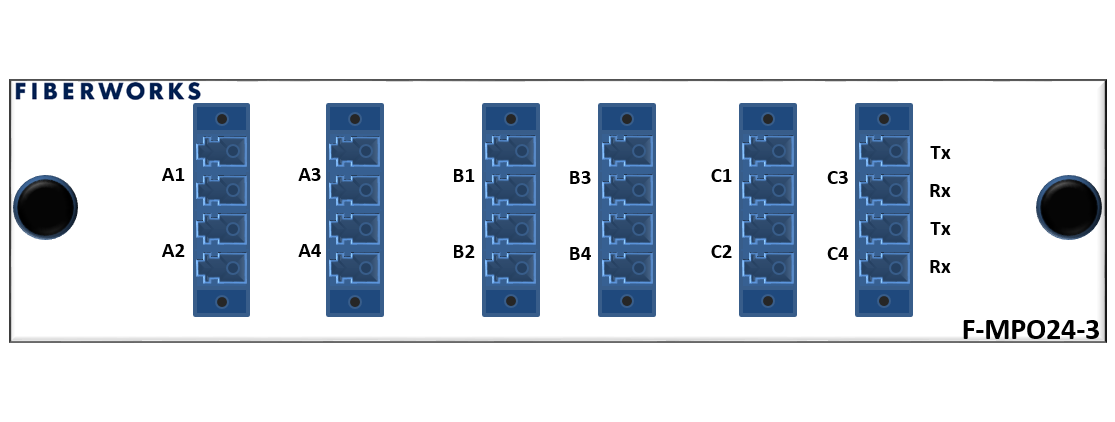

- 24 LC/UPC connectors on front side
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
