F-COADM-1-IY-STU-49 Fiberworks AS Fiberworks 1 ch. CWDM OADM 1491 nm Patchcord style, ST/UPC connectors
F-COADM-1-IY-STU-49 Fiberworks AS Fiberworks 1 ch. CWDM OADM 1491 nm Patchcord style, ST/UPC connectors F-COADM-1-IY-STU-49 Fiberworks AS Fiberworks 1 ch. CWDM OADM 1491 nm Patchcord style, ST/UPC connectors
Fiberworks 1 ch. CWDM OADM 1491 nm Patchcord style, ST/UPC connectors Fiberworks 1 ch. CWDM OADM 1491 nm Patchcord style, ST/UPC connectors

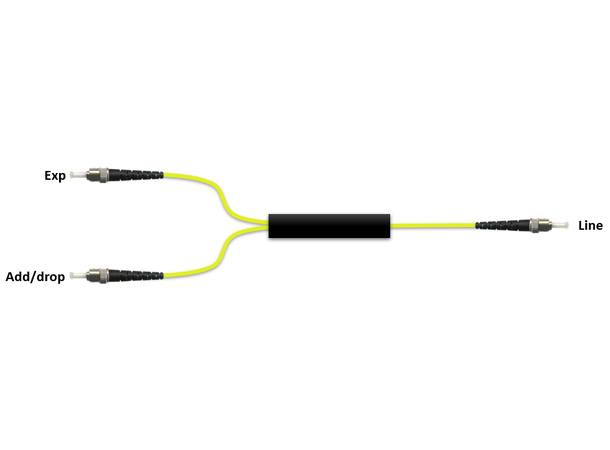

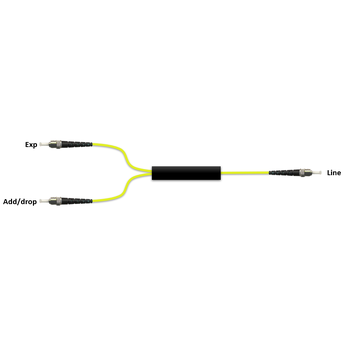

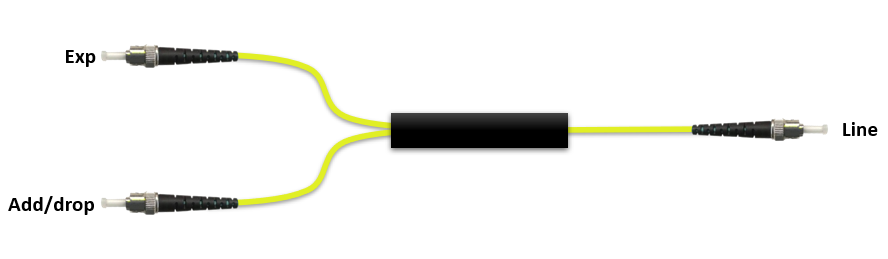

Fiberworks 1 ch. CWDM OADM 1491 nm

Patchcord style, ST/UPC connectors

Varenr: F-COADM-1-IY-STU-49
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse
FEATURES
  • Coarse WDM in compliance with ITU-T G.694.2

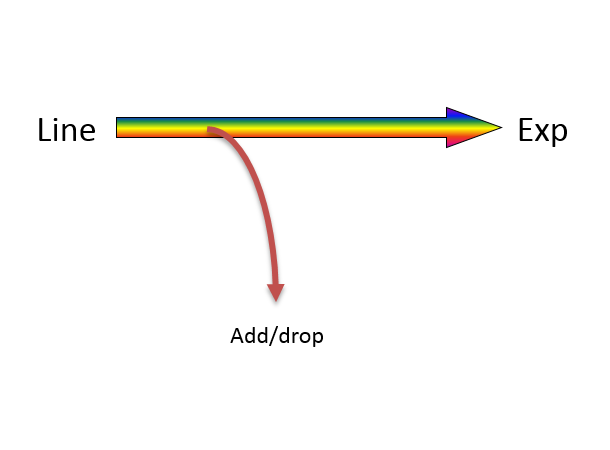

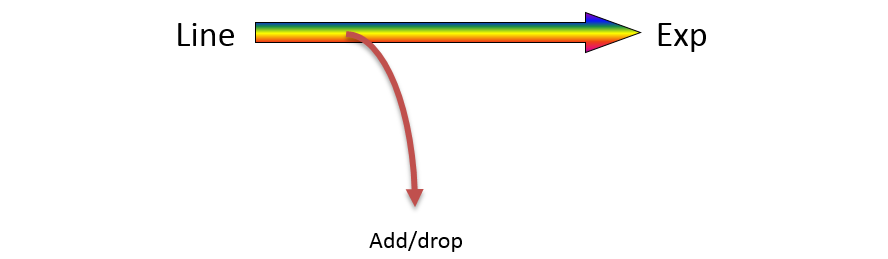

  • Add/drop of one CWDM wavelength
  • Insertion Loss (IL): < 1.0 dB excl. connector loss
  • Typical insertion loss incl. connectors: < 1.5 dB
  • ABS box 90x20x10 mm
  • 2 mm patchcord style
  • ST/UPC connectors
  • Based on thin film optics with epoxy free optical path
  • Protocol transparent (support 1G, 10G etc.)

Teknisk info

Produktinformasjon

Formfaktor Plastboks
CWDM-bølgelengde 1491 nm
Linjefiber Enkel (bidi, mux/demux)
Antall kanaler 1
Add/drop-muligheter Ja, "drop & continue"
Konnektortype Rett (UPC, PC)
Konnektor ST/UPC
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090


Tilbehør
Alternativer
