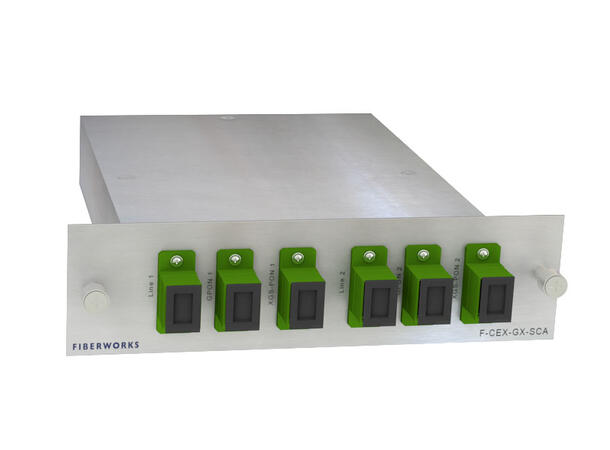

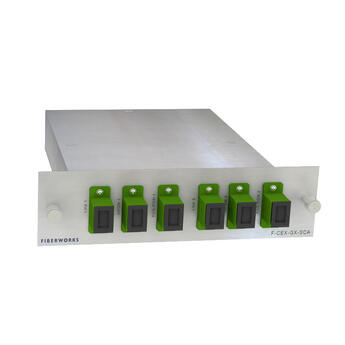

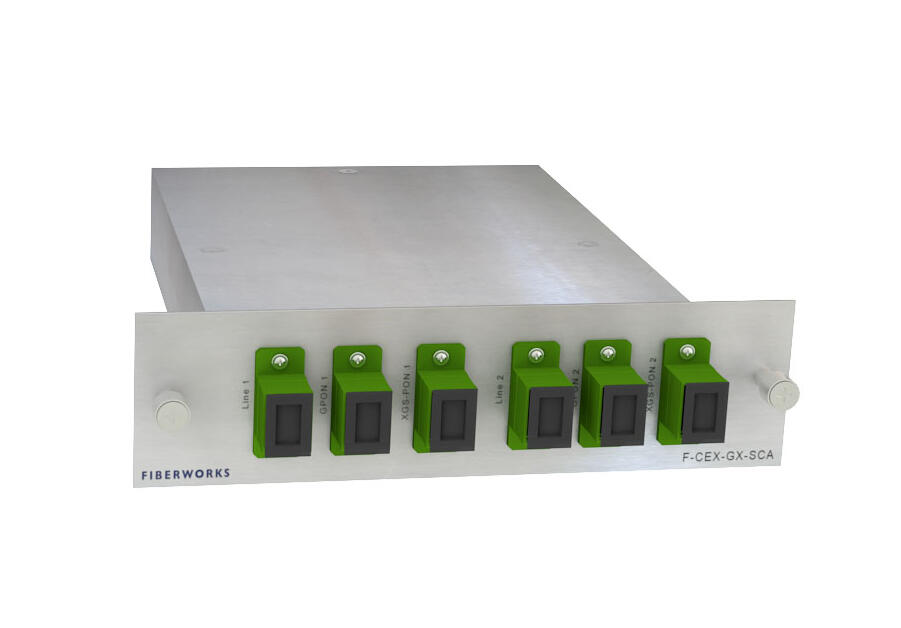

Fiberworks PON CEx mux, double, LGX3

GPON + XGS-PON, SC/APC connectors

Varenr: F-CEX-GX-SCA-2L3
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse
FEATURES

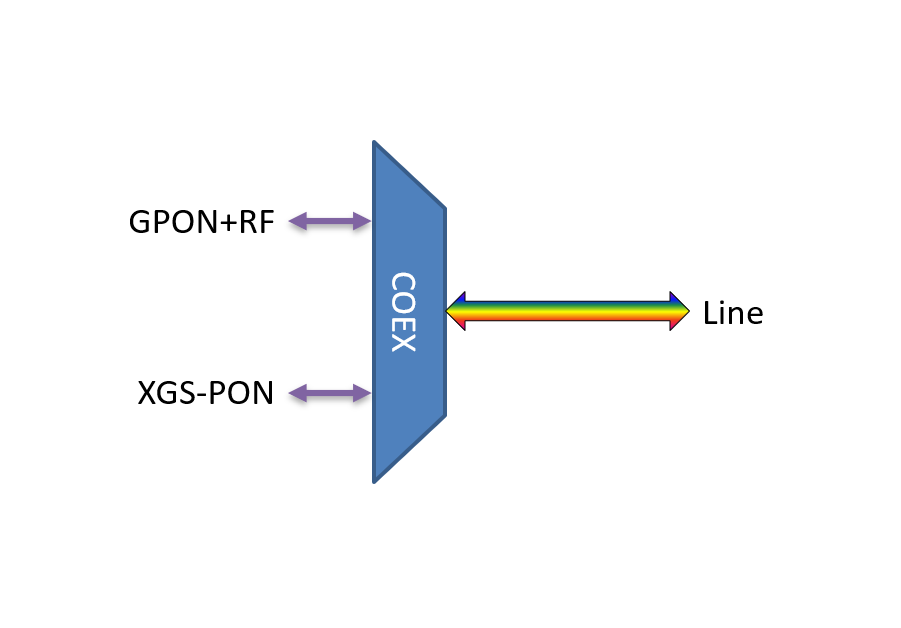

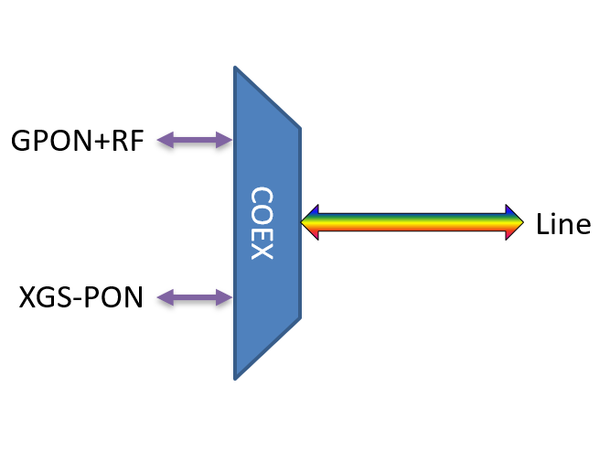

- Coexisting Element (CEx) based on passive wavelength division multiplexing
- Supports GPON according to ITU-T G.984 and XGS-PON according to ITU-T G.9807.1
- Low insertion loss

- Based on thin film optics with epoxy free optical path
- Two multiplexers in one module

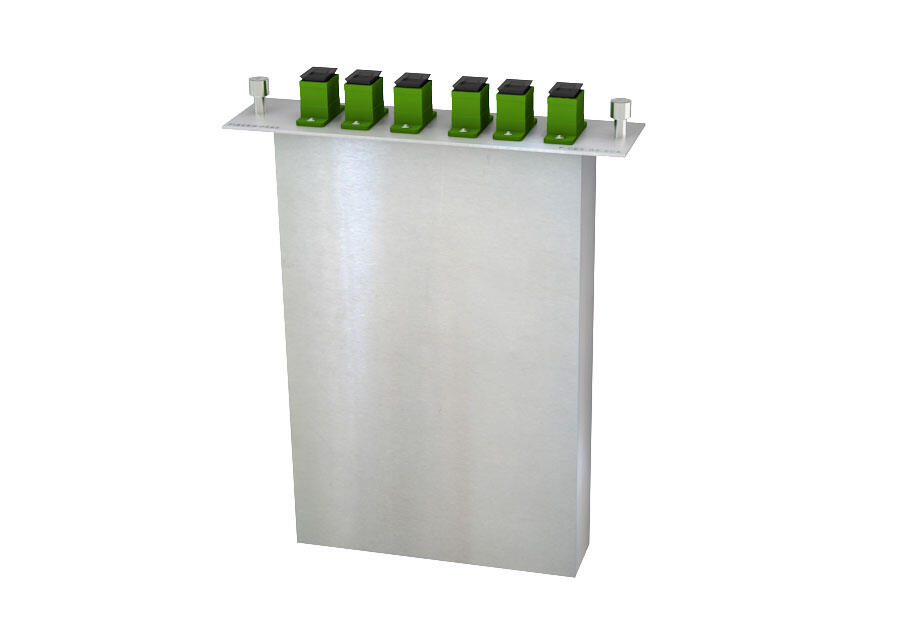

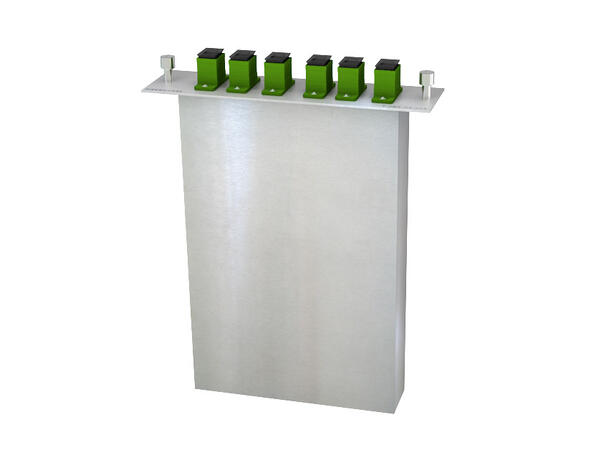

- Compact LGX3 form factor - Three modules fit in 1U in 19" chassis or 14 modules in 3U chassis

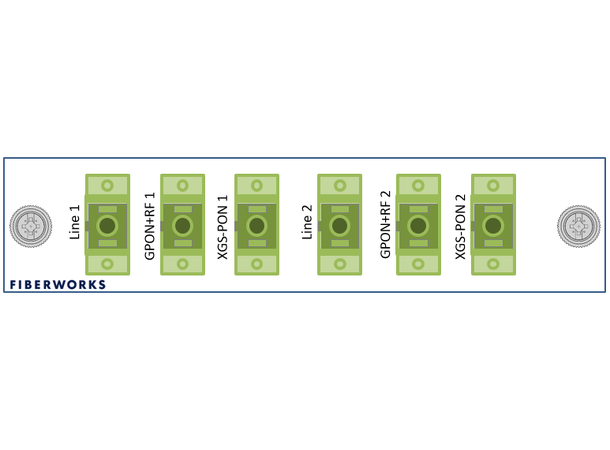

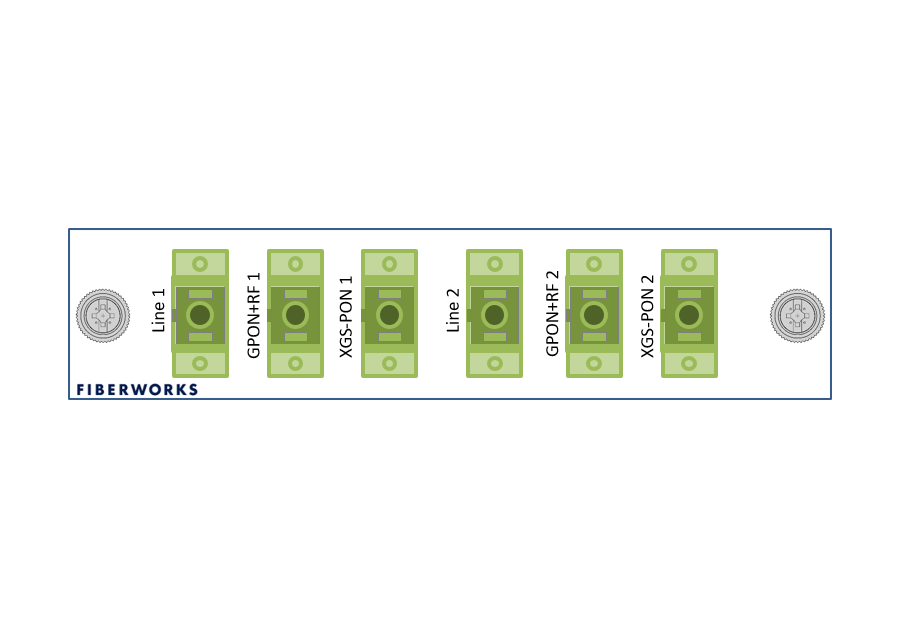

- SC/APC connectors


Teknisk info

Produktinformasjon

Formfaktor LGX3
Linjefiber Enkel (bidi, mux/demux)
Antall kanaler 2
Monitorport Nei
Konnektor SC/APC
