VeEX RXT-6400 400G PAM4 QSFP-DD og OSFP

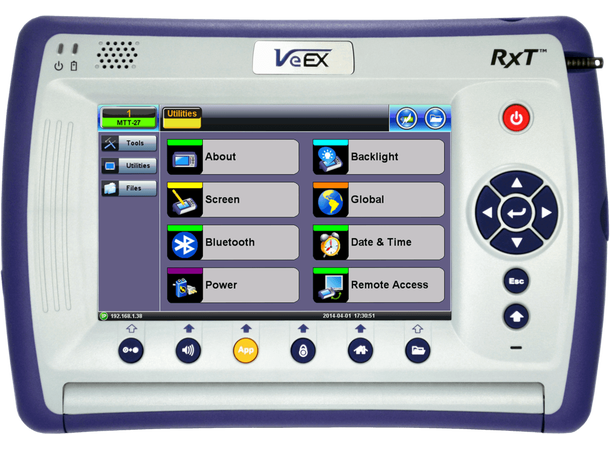

RXT-1200+ Platform, Ethernet

Varenr: VX-RXT-6400-400G-1
BeskrivelseTeknisk info
Beskrivelse

RXT-6400

400G Test Module

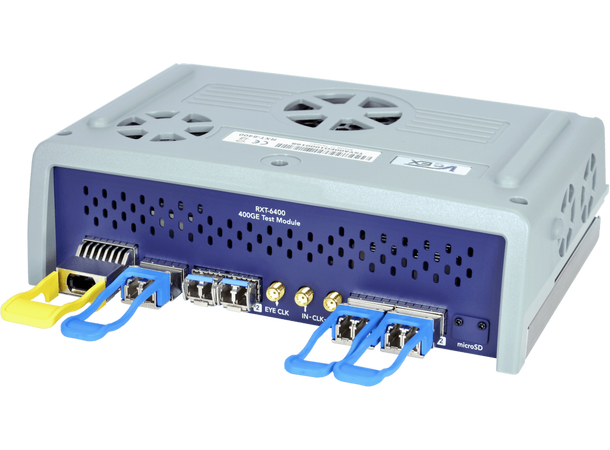

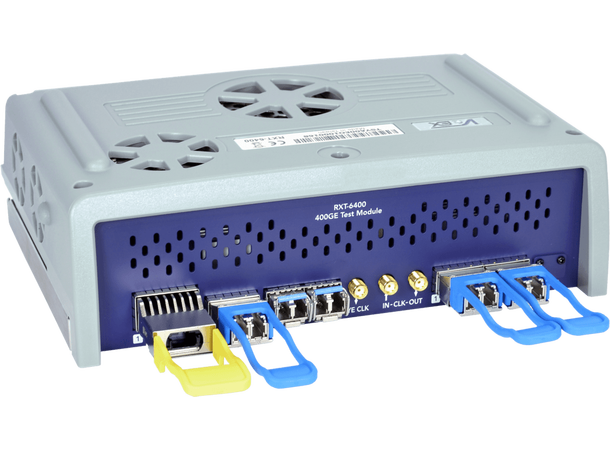

Det første native OSFP & QSFP-DD PAM4 400GE Test instrument i bærbar formfaktor som forenkler lab-til-felt overgangen.

RXT-6400 er det første virkelig bærbare 400G test instrumentet som støtter native PAM4 QSFP-DD og OFSP. Instrumentet er utstyrt for å støtte alle vanlige formfaktorer og er perfekt for å komplementere RXT plattformen ved å tilby testhastigheter opp til 400Gbps og er en "alt i ett" løsning for 10GE-400GE testsituasjoner.

Installasjon, verifikasjon, kommisjonering, evaluering og vedlikehold forenkles takket være kombinasjonen av et intuitivt brukergrensesnitt og kraftige test funksjoner. Mindre øvede brukere får en fordel takket være den enkle GUIen mens mer erfarne brukere vil sette pris på en rekke med avanserte funksjoner som avanserte lag 1-4 features, slik som FEC codeword Error distribution analyse, PAM4 pre-emphasis, skew, transceiver check and stress, Lane BERT, Throughput test, IPv4/IPv6, transceiver testing og mer.





  • RXT-6400 400GE PAM4 Test Set pakke med QSFP-DD, OSFP, 2x QSFP56/28/+, 2x SFP28/+ transceiver sockets. Inkluderer 400GE QSFP-DD optisk transceiver støtte og 400G Ethernet test. Optiske transceivere selges separat.
  • WiFi Wiz, inkluderer USB WiFi 802.11b/g/n 2.4G og Bluetooth Adapter
  • 1GE/10GE Bundle, inkluderer  10/100/1000Base-T (via kobber SFP+, krever 301-01-024G), 1000Base-X og 10GE LAN/WAN BERT, Throughput, Loopback, RFC2544 og Y.1564
  • 100GE Bundle, inkluderer  BERT, RFC2544, Throughput, Y.1564, Optical Lane BERT, Loopback, PCS Analysis, Multiple Stream, IP Connectivity og IPv6



Kan utvides til å støtte CPRI 10, 25G eCPRI og 1G-32G FibreChannel, i tillegg til OTN, SDH/SONET, PDH/DSn med mer. Se data-ark for fullstendige spesifikasjoner og software-opsjoner.



 Listepris vises. Ta kontakt for riktig oppsett og pris for dere.





Produktinformasjon på engelsk:



General

  • Native OSFP and QSFP-DD PAM4 hardware for best-in-class signal integrity (no adapters required)
  • 400G Ethernet testing per IEEE 802.3bs specification with KP4 Forward Error Correction (FEC)
  • Provides all the necessary features to test transceivers, DAC and AOCs, including OSFP and QSFP-DD transceivers, networking equipment and 400GE links
  • Advanced and flexible state-of-the-art FPGA-based design provides future-proof hardware support for emerging standards, test functions and applications
  • Wide range of supported 400GE interfaces, including 400GBASE-SR8, FR8, LR8, DR4, FR4, LR4, CR8 and CR4
  • MDIO/I2C registers Read and Write
  • Per-lane PAM4 pre-emphasis settings
  • KP4 FEC codeword symbol errors distribution and Skew
  • Ethernet Throughput test
  • Also supports QSFP56, QSFP28, QSFP+, SFP28, SFP+ interfaces for lower rate applications
  • Battery backup for efficient operation and mobility within datacenters (no need for constant rebooting)

Applications

  • Bring-into-service, verification and troubleshooting of high-speed Ethernet links
  • Transceivers, DAC and AOC verification
  • Evaluation labs and field support Comprehensive 400GE test applications for layers 1-4
  • Full rate 400GE Throughput and frame loss measurements
  • PCS & RS-FEC layer testing with skew generation and analysis
  • PAM4 signal integrity testing with multi-lane unframed BERT
  • MDIO verification and programming including and QSFP-DD Module Health check and stress feature
  • High speed lane clock stressing/analysis and optical power level verification
  • Portable for field testing, evaluations, demonstrations, interop check, benchmarking, troubleshooting, link verification, etc.
  • Battery power for mobility within large datacenters, nodes, COs, R&D and evaluation labs.
  • No carts or long reboots required.

Test Interfaces

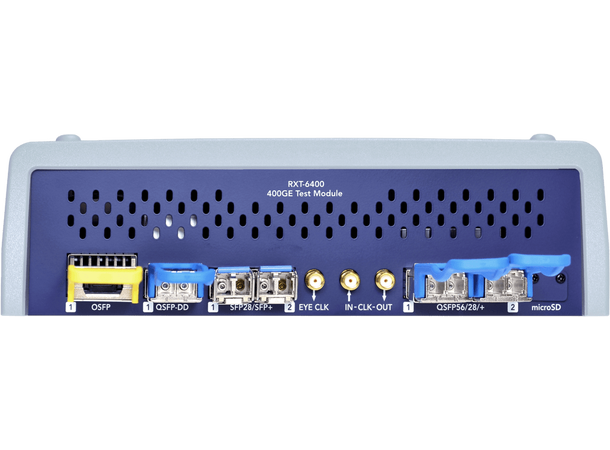

  • 1x OSFP PAM4
  • 1x QSFP-DD PAM4
  • 2x QSFP28/QSFP+ NRZ
  • 2x SFP28/SFP+/SFP NRZ
  • 2x Clock Input/Output
  • 1x Eye Clock Output

PAM4 Interfaces

  • Native support for 400G QSFP-DD and OSFP transceivers
  • 400GBASE-SR8, FR8, LR8, DR4, FR4, LR4, CR8 and CR4
  • Supports IEEE 802.3bs and MSA compliant transceivers*
  • 15W supply supporting power classes 1 through 7
  • Transceiver voltage control and power consumption monitoring
  • Internal transceiver’s and cage temperature monitoring
  • Native PAM4 electrical interface (no internal or external adapter required)
  • Advanced transceiver verification test
  • Per-lane post and pre-emphasis settings
  • Lane BERT with independent test patterns

400G Ethernet Testing

  • 400G Ethernet per IEEE 802.3bs
  • Optical signal levels (TX and RX lanes), frequency
  • Advanced KP4 FEC stress testing and analysis
  • Physical, PCS/FEC, and Ethernet layer verification
  • Throughput test, Frame Loss, Round Trip Delay (RTD). Errors, Alarms, events counters and rates
  • Error and Alarm Injection

Ethernet Testing for 100GE and below

  • 100GE, 40GE, 10GE, 1GE (50GE and 25GE ready)
  • Optical signal levels (TX and RX lanes), frequency
  • Physical, PCS, and Ethernet layer verification
  • RFC2544, Throughput test, Frame Loss, Round Trip Delay (RTD). Errors, Alarms, events counters and rates
  • Error and Alarm Injection
  • Transceiver testing
