OVERVIEW

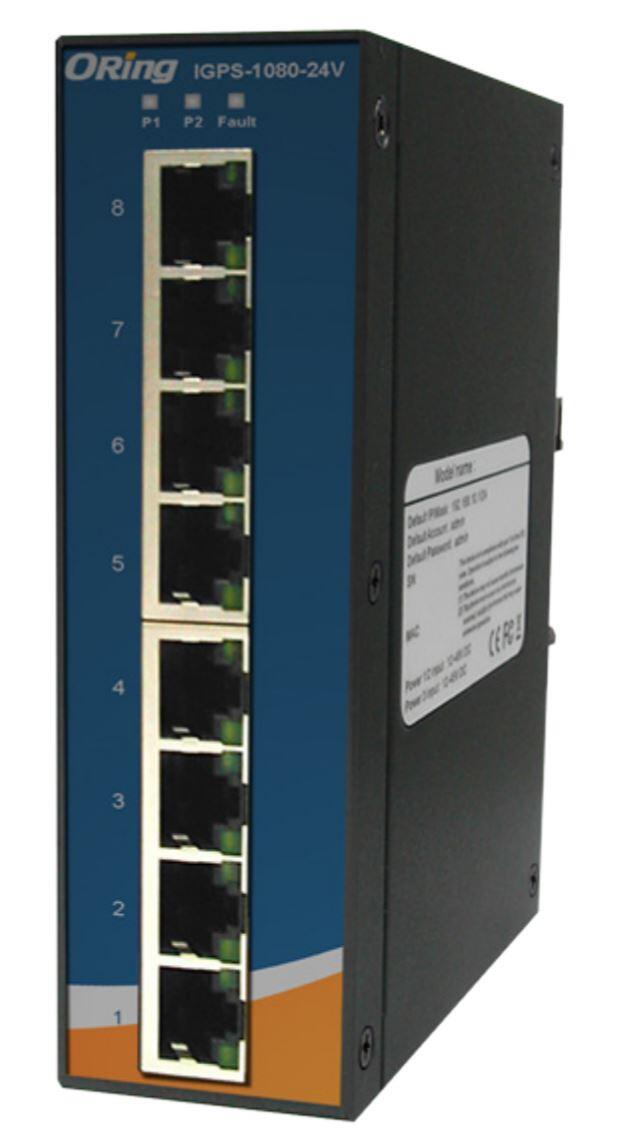

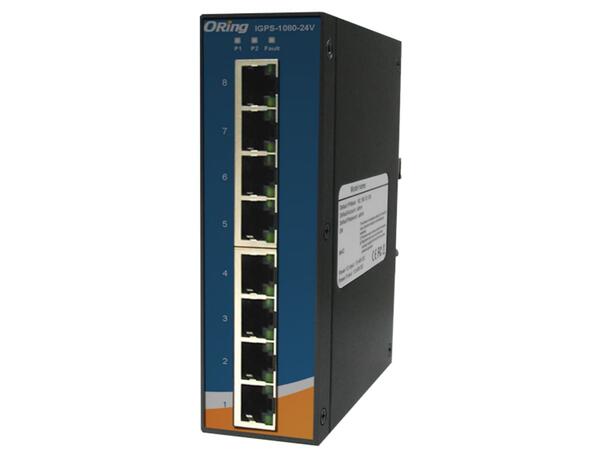

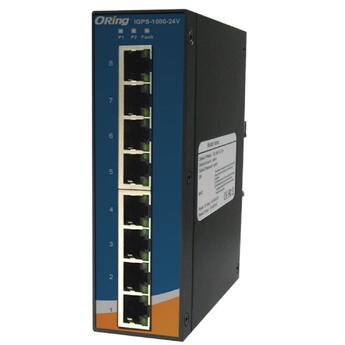

IGPS-1080-24V is the unmanaged Gigabit PoE Ethernet switch with P.S.E. function and relay output of 24VDC at 1A. IGPS-1080-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1080-24V supports wide-range 24~36VDC power inputs and generates 50VDC P.S.E. power output per port.
IGPS-1080-24V PoE switch has 8 x 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40°C to 75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.
FEATURES
• IGPS-1080-24V provides 8x10/100/1000Base-T(X) PoE (P.S.E.) ports
• Supports IEEE 802.3at compliant PoE and total power budget is 120 Watts with maximum 30 Watts per port
• Supports dual wide range 12~57VDC power inputs for power redundancy
• Supports Jumbo frame up to 9KBytes
• Supports auto-negotiation and auto-MDI/MDI-X
• Supports store and forward transmission
• Supports flow control
• Rigid IP-30 housing design
• DIN-Rail and wall mounting enabled
